Using PLC IDE With Arduino® IoT Cloud

Learn how to integrate PLC IDE compatible devices with the Arduino IoT Cloud.

AUTHOR: Taddy Chung, José Bagur and Giampaolo Mancini

Overview

The Arduino PLC IDE offers multiple possibilities to expand the connectivity of your industrial applications. The integration of the PLC IDE with the Arduino IoT Cloud allows you to create advanced HMI for your professional solutions that can be controlled in real-time in multiple ways and devices.

In this comprehensive tutorial, you will learn how to integrate and utilize the Arduino IoT Cloud with the Arduino PLC IDE. The tutorial covers the process of connecting your compatible devices and creating a compact, cloud-connected application using Opta™.

Goals

Learn how the Arduino IoT Cloud and the PLC IDE cooperate for seamless data exchange.
Learn how to set the workspace environment on the PLC IDE for use with the Arduino IoT Cloud.
Program a device using an Opta™ as an example integrating the PLC IDE and Arduino IoT Cloud.

Hardware and Software Requirements

Hardware Requirements

Opta™ WiFi (x1)
USB-C® cable (x1)
Analog sensor (Optional)

Software Requirements

Arduino PLC IDE Tools
Arduino PLC IDE software
If you have an Opta™, you do not need any license key to activate your product. Go to section License Activation With Pre-Licensed Products (Opta™) to know more.
The Arduino Cloud will be required to perform remote actuation and status monitoring via Wi-Fi® connectivity using the sketch provided in the following section. In case you do not have an account, you can create one for free inside cloud.arduino.cc.
To ensure optimal Wi-Fi® connectivity on Opta™, please use the
```
WiFiFirmwareUpdater
```
to update with the latest network firmware version. This can be done by going to
```
Examples -> STM32H747_System -> WiFiFirmwareUpdater
```
on Arduino IDE 2.X. Additionally, please ensure that you have the latest Arduino Mbed OS Opta Boards version, which can be checked under
```
Boards Manager
```
.
PLC IDE & Arduino IoT Cloud integration example project file compatible with Opta™

This tutorial requires the latest versions of the PLC IDE & PLC IDE Tools ( >= v 1.0.4 ). You can get the latest versions here for the latest PLC IDE and its tools. If it is your first time using the Arduino PLC IDE, we highly recommend you to begin with Arduino® PLC IDE Setup & Device License Activation.

PLC IDE & Arduino IoT Cloud Integration

In this present tutorial, we will be utilizing two distinct platforms: the Arduino PLC IDE and the Arduino IoT Cloud. Each of these tools brings unique features and capabilities to the table, making them integral to our workflow.

The Arduino PLC IDE integrates the capability to use IEC IEC61131-3 programming languages, which are Ladder Diagram (LD), Sequential Function Chart (SFC), Function Block Diagram (FBD), Structured Text (ST), and Instruction List (IL). All these languages are applicable to Opta™.
A wide set of standard features are included with these PRO solutions to develop industrial automation or advanced applications. You can find more tutorials related to the PLC IDE at the arduino documentation page and the latest version of the software can be downloaded here.
The IoT Cloud is a platform that allows users to deploy IoT applications with ease and control parameters at any given moment. The platform provides robust security characteristics, of which Opta™ takes advantage to provide secure industrial application deployments. You can find more about Arduino IoT Cloud at here.

Understanding the Process

The PLC IDE supports seamless integration with Arduino IoT Cloud, enabling IoT capabilities for its compatible devices. The application field can be expanded thanks to this feature with the needed security elements, ensuring stable industrial operations.

The structure comprises two elements:

The PLC IDE defines the device program with its connectivity settings and designed tasks.
The Arduino IoT Cloud processes the exchange of information with the Arduino layer of the PRO solution devices.

PLC IDE with Arduino Cloud Support Workflow

The device is programmed in two layers: The PLC main execution program and the Arduino sketch. To communicate and interchange data in a safe way between these two different program layers, the PLC IDE use 'Shared variables' between these two layers. The functions of each layer are:

The PLC program layer will manage internal communication and data handling. It can be programmed to read sensor information that is obtained via selected Modbus protocol or available I/O pins. Then use this data to send out to or receive from the Arduino sketch layer.
The Arduino sketch will handle data exchange bound between the PLC program layer and the Arduino IoT Cloud platform. The methods are 'PLCOut.varname' and 'PLCIn.varname', which are used to access the shared variables. For the purpose of the tutorial and to easily classify these methods, we will replace the 'varname' with the 'Shared_variable' tag.
Therefore, the 'PLCOut.Shared_Variable' and 'PLCIn.Shared_Variable' methods manage the shared variables that facilitate the communication between the two systems:

Shared variables between layers
- PLCOut.Shared_Variable: This variable refers to the data that is being sent from the PLC program layer to the Arduino sketch layer, which will be sent to Arduino IoT Cloud.
  In other words, it represents the outputs from the PLC program. It could be sensor readings, status information, or any other data that the PLC program is designed to generate and share.
- PLCIn.Shared_Variable: Conversely, this variable refers to the data that is being sent to the PLC from the Arduino sketch layer, received from the Arduino IoT Cloud platform.
  These are inputs for the PLC program. It could be commands, configuration data, or other information that the Arduino IoT Cloud system sends to control or interact with the PLC.

In most industrial IoT applications, the PLC program layer will be responsible for direct control of machinery or processes based on its programming, while the Arduino IoT Cloud platform will often be used as an HMI for operators, analytics, and remote control capabilities. The

Shared_Variables

commands allow in both cases real-time communication between these two layers.

Example Implementation

A demonstrative example will be used to show how both features are integrated. The example will consist of an Arduino IoT Cloud dashboard and a PLC IDE project file configured for an Opta™ device.

Opta™ will be programmed to execute the following actions:

Send analog readings and counter values from the device to the Arduino IoT Cloud.
The user programmable LED of Opta™ will be controlled via an interactive button found within the Arduino IoT Cloud dashboard, which can later be designed to trigger certain actions.

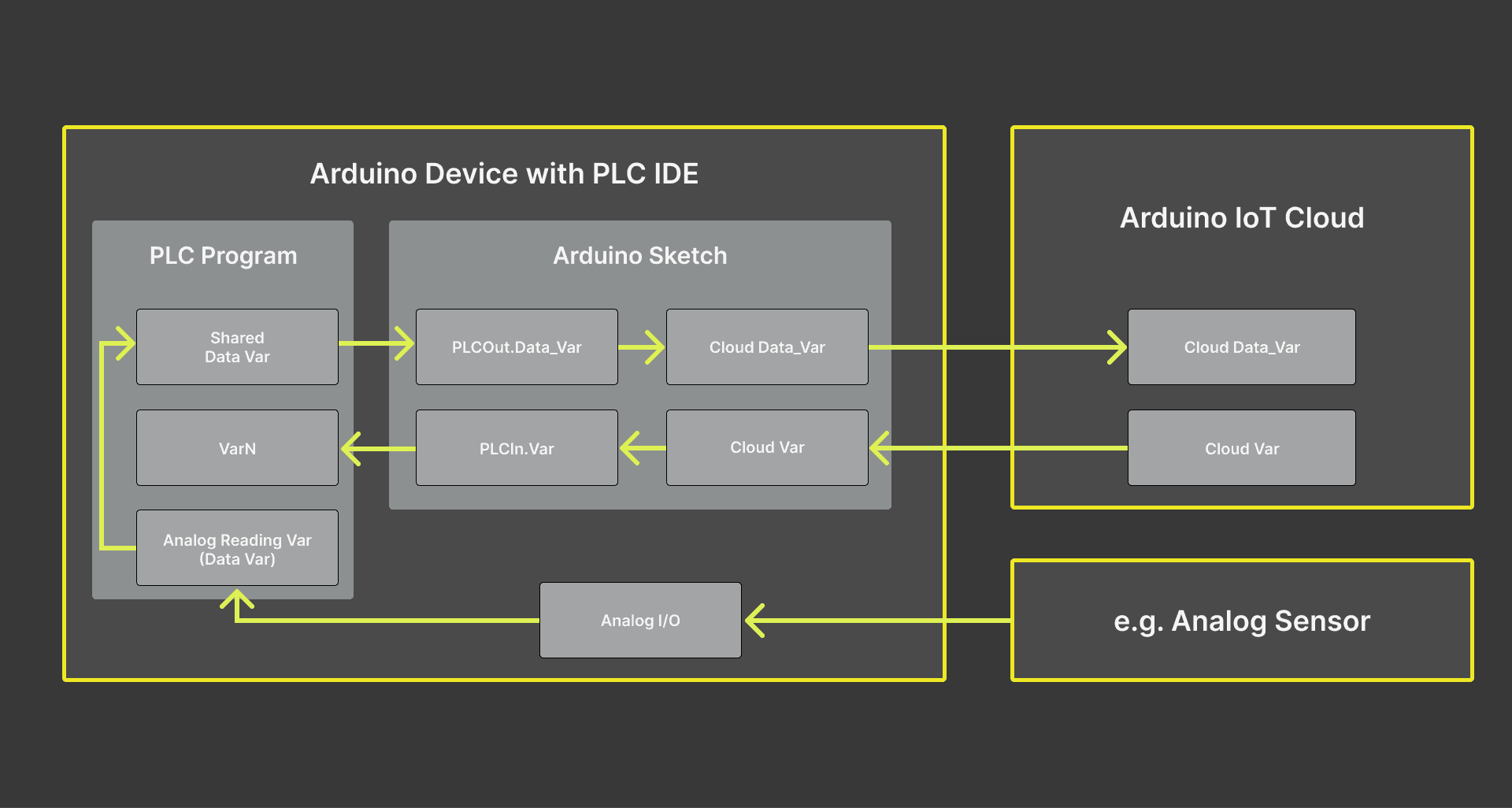

The following diagram shows the main steps to connect Opta™ to the Arduino IoT Cloud using the PLC IDE. In the following sections you will find how to perform all of these steps in detail.

Example Implementation Procedure Overview

The example implementation comprises the following sequence:

Setting up the Arduino IoT Cloud
Setting up the PLC IDE
1. Shared variables configuration
2. Analog port & user programmable LED configuration
3. Library management
Setting up the Arduino IoT Cloud dashboard
System integration test

Setting Up the Arduino IoT Cloud

We will begin by configuring the Arduino IoT Cloud with Opta™ to create a Thing. It will have Opta™ registered with cloud variables and a dashboard configured to perform different actions.

To learn more about how to use the Arduino IoT Cloud, please take a look at Getting Started With the Arduino IoT Cloud tutorial.

The following cloud variables will be created:

Cloud Variables	Type	Variable Permission	Send Values
analog01	Float (0 - 65535)	Read Only	On change
counter	Integer (0 - 2500)	Read Only	On change
cloudButton	Boolean	Read & Write	On change

The cloud variables will subsequently be linked to the 'Shared variables' within the PLC IDE environment to set up the communication pathway. Furthermore, the table displays a full 16-bit resolution range for 'analog01', as it can be paired with any chosen analog sensor. The 'counter' is set with a default limit of 2500, beyond which the device will reset to 0. If necessary, this limit can be adjusted in the PLC program, as elaborated further in this tutorial.

Once the Arduino IoT Cloud Thing has been created successfully, we will have something similar to the following image:

Arduino IoT Cloud Thing and Cloud variables for Opta™

We can now extract the code that will serve as the base for the Arduino sketch for Opta™ in the PLC IDE. The code can be accessed by going to the full editor. It will require some of the lines from the

ThingProperties.h

Please follow:

Things -> "Opta PLC IDE Cloud" Thing -> Sketch -> Open full editor

, of which 'Opta PLC IDE Cloud' is the name of your created Thing, to get to the full editor window.

The base sketch of the example will be as follows:

1#include <ArduinoIoTCloud.h>
2#include <Arduino_ConnectionHandler.h>
3
4const char SSID[]     = "SECRET_SSID";    // Network SSID (name)
5const char PASS[]     = "SECRET_OPTIONAL_PASS";    // Network password (use for WPA, or use as key for WEP)
6
7void onCloudButtonChange();
8
9float analog01;
10int counter;
11bool cloudButton;
12
13WiFiConnectionHandler ArduinoIoTPreferredConnection(SSID, PA
14void setup() {
15  // Initialize serial and wait for port to open:
16  Serial.begin(9600);
17  // This delay gives the chance to wait for a Serial Monitor without blocking if none is found
18  delay(1500);
19
20  // Defined in thingProperties.h
21  initProperties();
22
23  // Connect to Arduino IoT Cloud
24  ArduinoCloud.begin(ArduinoIoTPreferredConnection);
25
26  /*
27     The following function allows you to obtain more information
28     related to the state of network and IoT Cloud connection and errors
29     the higher number the more granular information you’ll get.
30     The default is 0 (only errors).
31     Maximum is 4
32 */
33  setDebugMessageLevel(2);
34  ArduinoCloud.printDebugInfo();
35}
36
37void loop() {
38  ArduinoCloud.update();
39  // Your code here
40}
41
42void initProperties(){
43  ArduinoCloud.addProperty(analog01, READ, ON_CHANGE, NULL);
44  ArduinoCloud.addProperty(counter, READ, ON_CHANGE, NULL);
45  ArduinoCloud.addProperty(cloudButton, READWRITE, ON_CHANGE, onCloudButtonChange);
46}
47
48/*
49  Since CloudButton is READ_WRITE variable, onCloudButtonChange() is
50  executed every time a new value is received from IoT Cloud.
51*/
52void onCloudButtonChange()  {
53  // Add your code here to act upon CloudButton change
54}

Save this example template for later. We will now proceed with a demonstrative example to show you how to set up the PLC IDE to be connected to the Arduino IoT cloud "Thing" we just created.

Setting Up the PLC IDE

Before continuing with the PLC IDE configuration with Opta™, please remember to have the latest PLC IDE with its corresponding tools stated within Software Requirements.

The PLC IDE configuration will play an important role in establishing successful communication with the Arduino IoT Cloud. It will require setting onboard features and the communication protocol for Opta™ as usual. However, a proper 'Shared variables' setting will define the communication outcome with the Arduino IoT Cloud.

Thus, you will learn to configure the 'Shared variables' based on the peripherals and tasks you may assign to Opta™.

Shared Variables Configuration

The successful communication between Opta™ configured with PLC IDE and Arduino IoT Cloud relies on the 'Shared variables'. The 'Shared variables' is defined by heading to

Resources > Opta > Shared variables

. It will then offer two additional tabs: 'Inputs' and 'Outputs'.

PLC IDE - Shared 'Input' and 'Output' variables

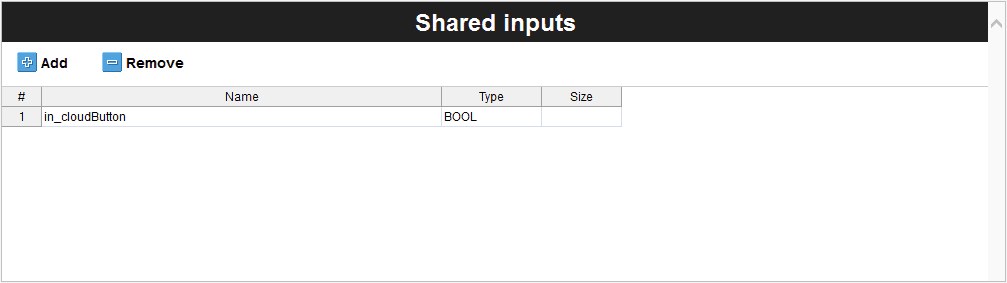

The 'Inputs' define variables that will capture the data that comes from the Arduino IoT Cloud through the local Arduino sketch to Opta™ PLC main program runtime. It is the compilation of variables that the Arduino IoT Cloud will send accordingly.

Subsequently, the user programmable LED will be controlled via Arduino IoT Cloud dashboard. We will define a variable so that it can be assigned later to update LED state variable accordingly.

The

in_cloudButton

will represent user programmable LED of Opta™ as a two state variable and indicates that is an input variable with the

in

tag.

The 'Outputs' define the variables that Opta™ will send to Arduino IoT Cloud. It is the compilation of variables that you would want to monitor within the Arduino IoT Cloud dashboard.

The analog port reading and the counter value of Opta™ are the information that we want to display on the Arduino IoT Cloud dashboard. It can be programmed to use Modbus-compatible devices and use its information for further development.

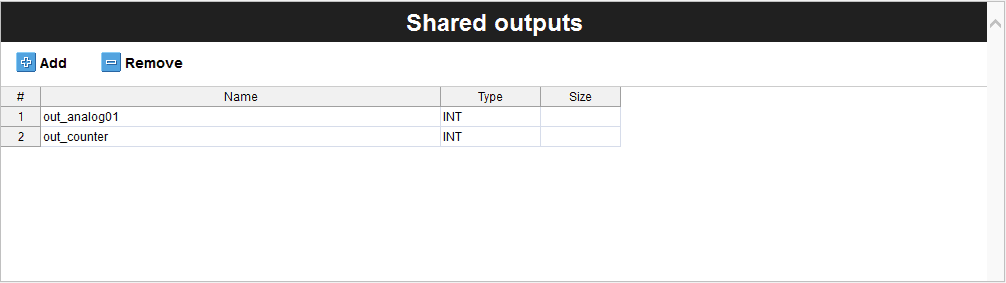

The following table shows the variables added to the 'Shared outputs' table.

The shared output variables are indicated with an

out

tag and represent the following information:

```
out_analog01
```
: Analog port number one reading
```
out_counter
```
: Counter value

The same variable name is used to maintain variable relationship and simplicity with the Cloud variables that we have defined here previously.

Depending on the project's development requirements, you can add all the variables that will be used to exchange information with the Arduino IoT Cloud.

We will now configure Opta™ device's features to link all these shared variables.

Analog Port Configuration

The analog port is configured using the following properties under:

Resources > Opta > Local IO Mapping > Programmable Inputs

Analog Port	Name	Variable	IO Type	Type
#1	I1	analog01	Analog	UINT

Opta™ has available 8x I/O ports that can be programmed either as analog or digital. You will select port number one and assign the

analog01

as the variable. The 'IO Type' must be 'Analog' and the 'Type' will update based on the selection of the 'IO Type' property.

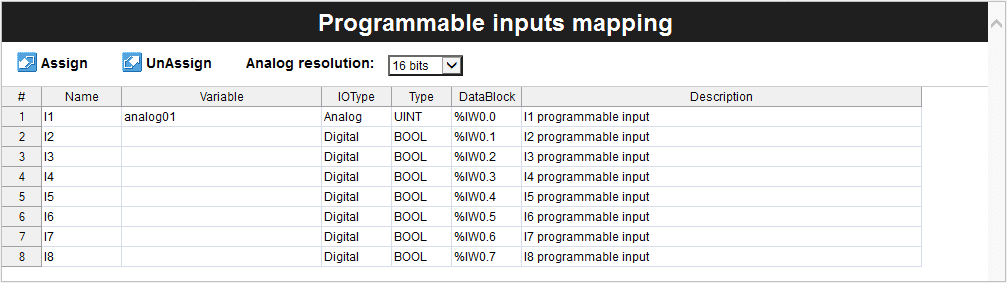

The 'Programmable inputs mapping' table should look as the following image:

PLC IDE - Programmable inputs mapping table

You can also change the analog resolution if needed between 12, 14, or 16 bits.

User Programmable LED Configuration

The user programmable LED of Opta™ is configurable under

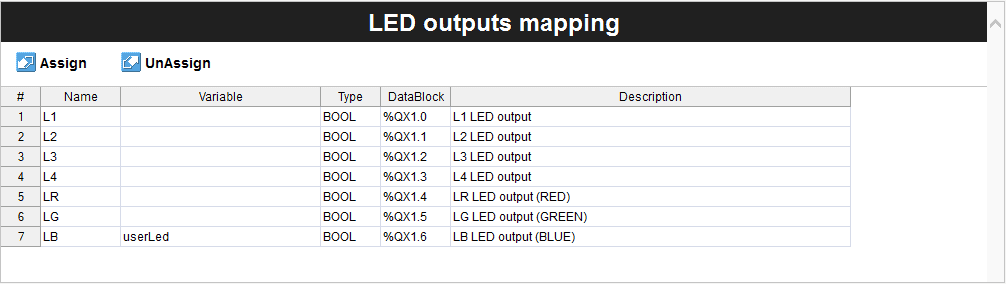

Resources > Opta > Local IO Mapping > LED Outputs

. To use the user programmable LED, you will need to assign a variable that will represent the 'LB' row as it can be seen in the following image:

In this case, the

userLed

is assigned as the variable that will represent the user programmable LED of Opta™ that emits blue light. The

userLed

is a boolean type variable as well as the

in_cloudButton

. It will be matched inside the PLC program to pass the boolean state per the command sent from the Arduino IoT Cloud dashboard.

Library Components

The Library section would be where you could find various pre-written codes or functions specific to PLC operations. It could include libraries for handling several industrial protocols, dealing with specific types of I/O, or even specialized functions for certain control systems. It makes the development process more efficient by providing ready-to-use codes, saving time and effort.

In the context of the PLC IDE, the libraries will need to be added manually under the

Sketch Libraries

found within the 'Resources' tab. These libraries are required to manage Arduino IoT Cloud connection and it is as follows:

Library Name	Version
ArduinoIoTCloud	1.11.2
Arduino_ConnectionHandler	0.7.6
ArduinoECCX08	1.3.7
ArduinoMqttClient	0.1.7
Arduini_DebugUtils	1.4.0
Arduino_Portenta_OTA	1.1.3

Once the libraries are in place within

Sketch Libraries

, we should have a similar table as the following image:

PLC IDE - Required libraries for Arduino IoT Cloud integration

These libraries are indexed, thus they are certified guaranteeing optimized performance and reliability. Leveraging them will not only speed up your development process but also increase the robustness of your applications for industrial environments. It may seem an extra step but it will help you keep cleaner, more reliable, and maintainable code.

For more information about managing libraries inside PLC IDE, please have a look at "Library Management" section from the Programming Introduction with Arduino PLC IDE.

Arduino Sketch

We can now build the Arduino sketch that will be used to establish communication with the Arduino IoT Cloud and manage data traffic. The base sketch will be needed and can be found as discussed in the 'Setting Up the Arduino IoT Cloud' section.

Most of the code will keep the same structure contrary to the

loop()

and

onCloudButtonChange()

functions. It will integrate the 'Shared variables' with the

PLCOut.Shared_Variable

PLCIn.Shared_Variable

to establish information exchange between the device and platform.

Beginning with the

loop()

function, we have the following code:

1void loop() {
2  ArduinoCloud.update();
3
4  analog01 = PLCOut.out_analog01;
5  counter = PLCOut.out_counter;
6}

The

loop()

function is used to periodically update the

analog01

and

counter

variables with the shared output variables. The shared output variables are

out_analog01

and

out_counter

, and they are attached to

PLCOut

This means that the PLC program, which is capturing the analog port reading and updating the counter value, is defined to bring the data to the Arduino sketch layer and update the cloud variables accordingly. The Arduino IoT Cloud dashboard then displays updated information after the

ArduinoCloud.update()

method based on the cloud variables, which are

analog01

and

counter

The

onCloudButtonChange()

function is cloud generated and designed to process similar tasks. Every time a new value is updated from the Arduino IoT Cloud, the function will be triggered and run the assigned tasks. In this instance, it will update the user programmable LED of Opta™ whenever a change is detected with the assigned dashboard button.

1/*
2  Since CloudButton is READ_WRITE variable, onCloudButtonChange() is
3  executed every time a new value is received from IoT Cloud.
4*/
5void onCloudButtonChange()  {
6  // Add your code here to act upon CloudButton change
7  PLCIn.in_cloudButton = cloudButton;
8}

The exact process involves assigning the updated cloud variable value to the

PLCIn.in_cloudButton

variable. It will update the shared variables attached to

PLCIn

, which is the

in_cloudButton

, and pass its value to the PLC program layer updating the status of Opta™.

Consequently, you will have an Opta™ constantly exchanging information with the Arduino IoT Cloud. The complete code for the Arduino sketch is as follows:

1#include <ArduinoIoTCloud.h>
2#include <Arduino_ConnectionHandler.h>
3
4const char SSID[]     = "NETWORK_SSID";    // Network SSID (name)
5const char PASS[]     = "NETWORK_PASS";    // Network password (use for WPA, or use as key for WEP)
6
7void onCloudButtonChange();
8
9bool cloudButton;
10float analog01;
11int counter;
12
13WiFiConnectionHandler ArduinoIoTPreferredConnection(SSID, PASS);
14
15void setup() {
16  // Initialize serial and wait for port to open:
17  Serial.begin(9600);
18  // This delay gives the chance to wait for a Serial Monitor without blocking if none is found
19  delay(1500);
20
21  // Defined in thingProperties.h
22  initProperties();
23
24  // Connect to Arduino IoT Cloud
25  ArduinoCloud.begin(ArduinoIoTPreferredConnection);
26
27  /*
28     The following function allows you to obtain more information
29     related to the state of network and IoT Cloud connection and errors
30     the higher number the more granular information you’ll get.
31     The default is 0 (only errors).
32     Maximum is 4
33 */
34  setDebugMessageLevel(2);
35  ArduinoCloud.printDebugInfo();
36}
37
38void loop() {
39  ArduinoCloud.update();
40
41  analog01 = PLCOut.out_analog01;
42  counter = PLCOut.out_counter;
43}
44
45void initProperties(){
46  ArduinoCloud.addProperty(cloudButton, READWRITE, ON_CHANGE, onCloudButtonChange);
47  ArduinoCloud.addProperty(counter, READ, ON_CHANGE, NULL);
48  ArduinoCloud.addProperty(analog01, READ, ON_CHANGE, NULL);
49}
50
51/*
52  Since CloudButton is READ_WRITE variable, onCloudButtonChange() is
53  executed every time a new value is received from IoT Cloud.
54*/
55void onCloudButtonChange()  {
56  // Add your code here to act upon CloudButton change
57  PLCIn.in_cloudButton = cloudButton;
58}

The

NETWORK_SSID

and

NETWORK_PASS

requires to be manually defined. Please replace these parameters to establish a connection with the desired network. Also, the parameters must be defined in between the quotation marks, replacing

NETWORK_SSID

and

NETWORK_PASS

fields.

PLC Program

The Arduino sketch is ready and now we need a PLC program that will control the onboard features of Opta™ and data readings.

The PLC program will do the following processes:

Run a linear counter and store to
```
cnt
```
, and pass the data to
```
out_counter
```
(Shared variables)
Reset counter value when it reaches 2500 in its value
Update the user programmable LED state of Opta™ based on
```
in_cloudButton
```
(Shared variables)
Update analog reading on the port number one defined to
```
analog01
```
and passing it to
```
out_analog01
```
(Shared variables)

The following code delivers the previous tasks:

1cnt := cnt + 1;
2out_counter := cnt;
3
4IF out_counter >= 2500 THEN
5    cnt := 0;
6END_IF;
7
8userLed := in_cloudButton;
9
10out_analog01 := analog01;

With this PLC program, we are all set to configure Opta™ device's internal processes and use Arduino sketch to establish a connection with the Arduino IoT Cloud.

For a good practice, we will set the present PLC program as a 'Fast Task'. It can be done by adding the

main

, which is the present PLC program we will use, to

Tasks -> Fast

under

Project

window tab.

Arduino IoT Cloud Dashboard

The Arduino IoT Cloud dashboard can be designed to your preference. The following image shows a dashboard example that allows for the control of the user programmable LED and the display of information received from Opta™.

More information about Arduino IoT Cloud & how to create dashboards can be found here.

Testing PLC IDE with Arduino IoT Cloud

The complete example project file for PLC IDE can be downloaded here. It is ready to use with Opta™ in the instance at the preferred workspace.

The first compilation process may take some time to finish. It can take around 7 minutes or more depending on the environment and hardware used.

Once we have successfully configured Opta™ with PLC IDE and established communication with the Arduino IoT Cloud dashboard, we have the following tasks in action:

The Arduino IoT Cloud dashboard displays the analog port number one reading and counter value of the connected Opta™
The user programmable LED of Opta™ can be controlled using the button found within the Arduino IoT Cloud dashboard

The animation below shows a simple active desktop dashboard:

Arduino IoT Cloud dashboard preview animation

The mobile dashboard is also available if on-demand monitoring and actuation is needed:

Arduino IoT Cloud mobile dashboard preview animation

If Opta™ fails to communicate with the Arduino IoT Cloud after configuration, please use the

WiFiFirmwareUpdater

to update Opta™ with the latest network firmware version.

Conclusion

You have now set an Opta™ using PLC IDE and successfully connected to the Arduino IoT Cloud platform. You learned how these tools integrate and can be used to create a simple interface allowing you to oversee Opta™ device's status. Now you are now more familiar with the PLC IDE and Arduino IoT Cloud environment, being capable of creating advanced HMI interfaces that can be used to control and monitor your Industrial Arduino Pro devices.

Next Steps

As you progress, feel free to delve into the vast Arduino ecosystem. It will encourage you to utilize an array of libraries and hardware enhancements to construct robust, secure, and interconnected industrial solutions with the Arduino Pro products. For a deeper understanding of the Arduino PLC IDE, consider reviewing the available tutorials.

Support

If you encounter any issues or have questions while working with the PLC IDE or Arduino IoT Cloud, we provide various support resources to help you find answers and solutions.

Help Center

Explore our Help Center, which offers a comprehensive collection of articles and guides for the PLC IDE or Arduino IoT Cloud. The Arduino Help Center is designed to provide in-depth technical assistance and help you make the most of your device.

Arduino help center page

Forum

Join our community forum to connect with other PLC IDE and Arduino IoT Cloud users, share your experiences, and ask questions. The forum is an excellent place to learn from others, discuss issues, and discover new ideas and projects related to PLC IDE and Arduino IoT Cloud.

The PLC IDE and Arduino IoT Cloud in the Arduino Forum

Contact Us

Please get in touch with our support team if you need personalized assistance or have questions not covered by the help and support resources described before. We're happy to help you with any issues or inquiries about the PLC IDE and Arduino IoT Cloud.

Tutorial Toolbox

Hardware

Opta

Software

Contribute to Arduino

Join the community and suggest improvements to this article via GitHub. Make sure to read out contribution policy before making your pull request.

CONTRIBUTE

Missing something?

Check out our store and get what you need to follow this tutorial.

VISIT OUR STORE

Suggest Changes

The content on docs.arduino.cc is facilitated through a public GitHub repository. You can read more on how to contribute in the contribution policy.

EDIT THIS PAGE
