Getting Started with AWS IoT Core

Learn how to connect your Opta™ device to the AWS IoT Core.

AUTHOR: Allan F. Gagnon

Overview

AWS IoT Core is a managed Cloud service that lets connected devices easily and securely interact with Cloud applications and other devices. AWS IoT Core can support billions of devices and trillions of messages and can process and route those messages to AWS endpoints and other devices reliably and securely. Devices can connect to AWS IoT Core using the following protocols: HTTP, WebSockets, and MQTT.

In this tutorial, you will learn how to securely connect an Opta™ device to AWS IoT Core using the MQTT protocol. MQTT (Message Queuing Telemetry Transport) is a highly lightweight machine-to-machine (M2M) connectivity protocol that uses a publish/subscribe messaging model. It is particularly suitable for Internet of Things (IoT) applications due to its bandwidth efficiency and ability to ensure message delivery over unstable networks. By the end of this tutorial, you will have the necessary skills to set up your Opta™ device to publish data to the AWS IoT Core and receive data from it.

Goals

Learn how to connect an Opta™ device to the AWS IoT Core.
Learn how to generate a Certificate Signing Request (CSR) using the Arduino ecosystem tools.

Hardware and Software Requirements

Hardware Requirements

Opta™ WiFi Lite, Opta™ RS485 or Opta™ WiFi (x1)
USB-C® cable (x1)

Software Requirements

AWS IoT Core

AWS IoT Core is at the heart of the AWS IoT suite of services, providing a centralized platform where IoT devices can connect to the Cloud. Its robust framework supports millions of devices and billions of messages, seamlessly and securely routing those messages between devices and various AWS Cloud services. Some key features of AWS IoT Core are the following:

Scalability: AWS IoT Core is designed to scale IoT applications quickly, managing connections and messaging without manually provisioning infrastructure.
Security: A top priority with AWS IoT Core requiring devices to authenticate using X.509 certificates over TLS. This method ensures that the data exchanged between devices and the Cloud is encrypted and accessed only by authorized devices and services.
Device gateway: The device gateway enables devices to communicate efficiently and securely with AWS IoT Core. It supports real-time and persistent connections and is optimized to ensure low latency and high throughput.
Message broker: AWS IoT Core includes a message broker that handles messages to and from devices. It supports MQTT, a lightweight communication protocol ideal for IoT devices, including those with limited processing power or operating in environments with intermittent connectivity.
Device shadows: AWS IoT Core also offers device shadows, virtual representations of your devices in the Cloud. This allows for interaction with devices even when they are offline. You can retrieve the last reported state and set desired future states for the devices.
Rule engine: The AWS IoT Rules Engine processes and routes message data to other AWS services such as AWS Lambda, Amazon Kinesis, Amazon S3, and more. It can transform raw device data and control what data is stored, where, and how it's used.

X.509 Certificates

X.509 certificates provide a robust layer of security for devices communicating with AWS IoT Core. When connecting using MQTT, these certificates are essential as they confirm the device's identity to AWS IoT Core, which is impossible with basic username and password authentication. This certificate-based system is part of the mutual authentication process, which is more secure than traditional credential-based methods.

With each device possessing a unique X.509 certificate, AWS IoT Core can ensure that the messages are secure and come from a trusted source. This method is fundamental in IoT ecosystems, where trust and identity verification are paramount to maintaining the system's integrity.

More information on X.509 certificate support on AWS IoT can be found here.

Instructions

Setting Up the Arduino IDE

This tutorial will need the latest version of the Arduino IDE; you can download it here. If it is your first time setting up an Opta™ device with the Arduino IDE, it is advisable to check its User Manual first. In the Arduino IDE, you need to install the core for Opta™ devices; you can do this by navigating to Tools > Board > Boards Manager. In the Board Manager tab, search for

opta

and install the latest

Arduino Mbed OS Opta Boards

version.

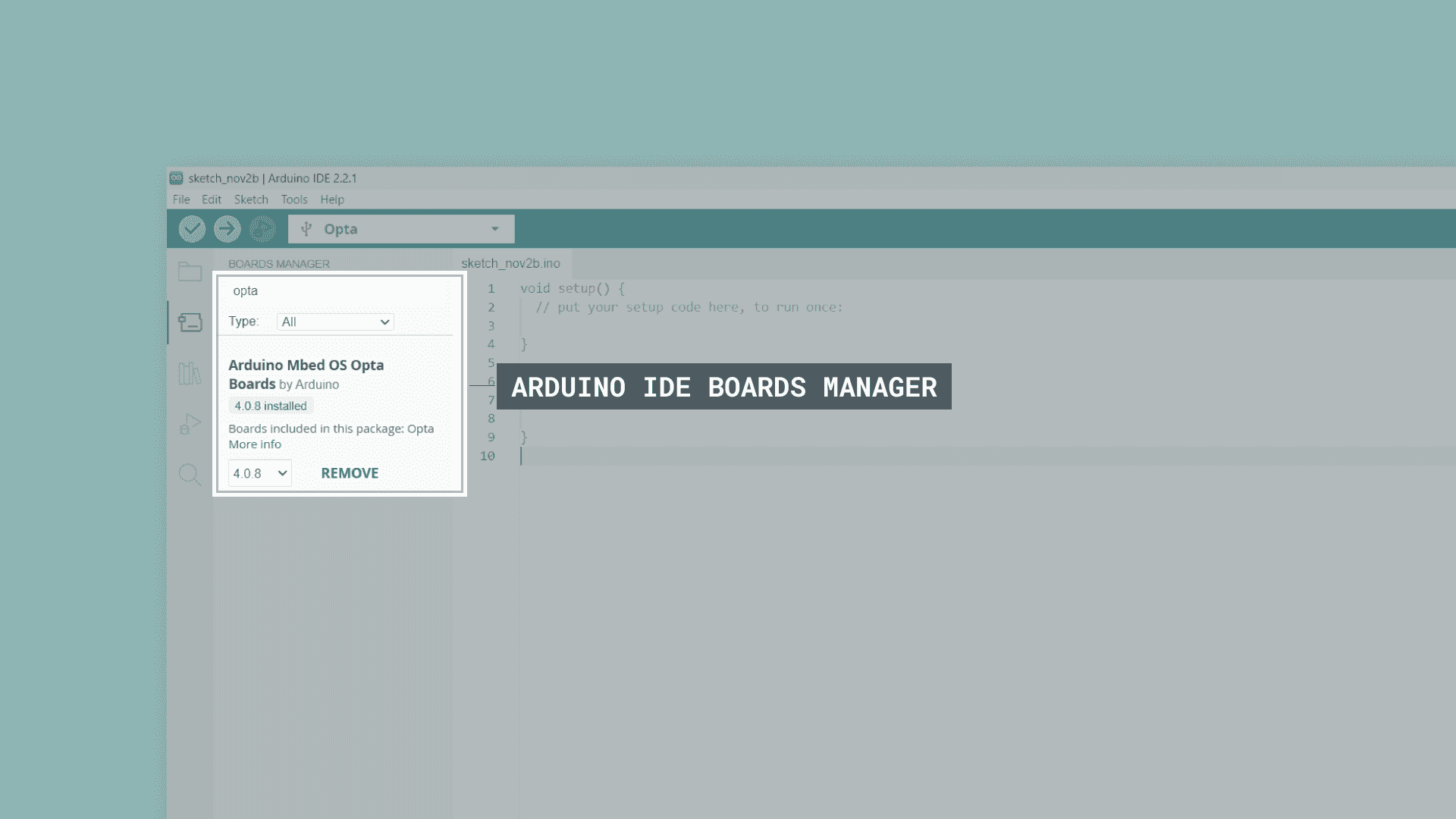

Installing the Opta™ core in the Arduino IDE

This tutorial also requires the latest version of the

NTPClient

Arduino_JSON

ArduinoECCX08

ArduinoBearSSL

ArduinoMqttClient

Arduino_ConnectionHandler

and

Arduino Cloud Provider Examples

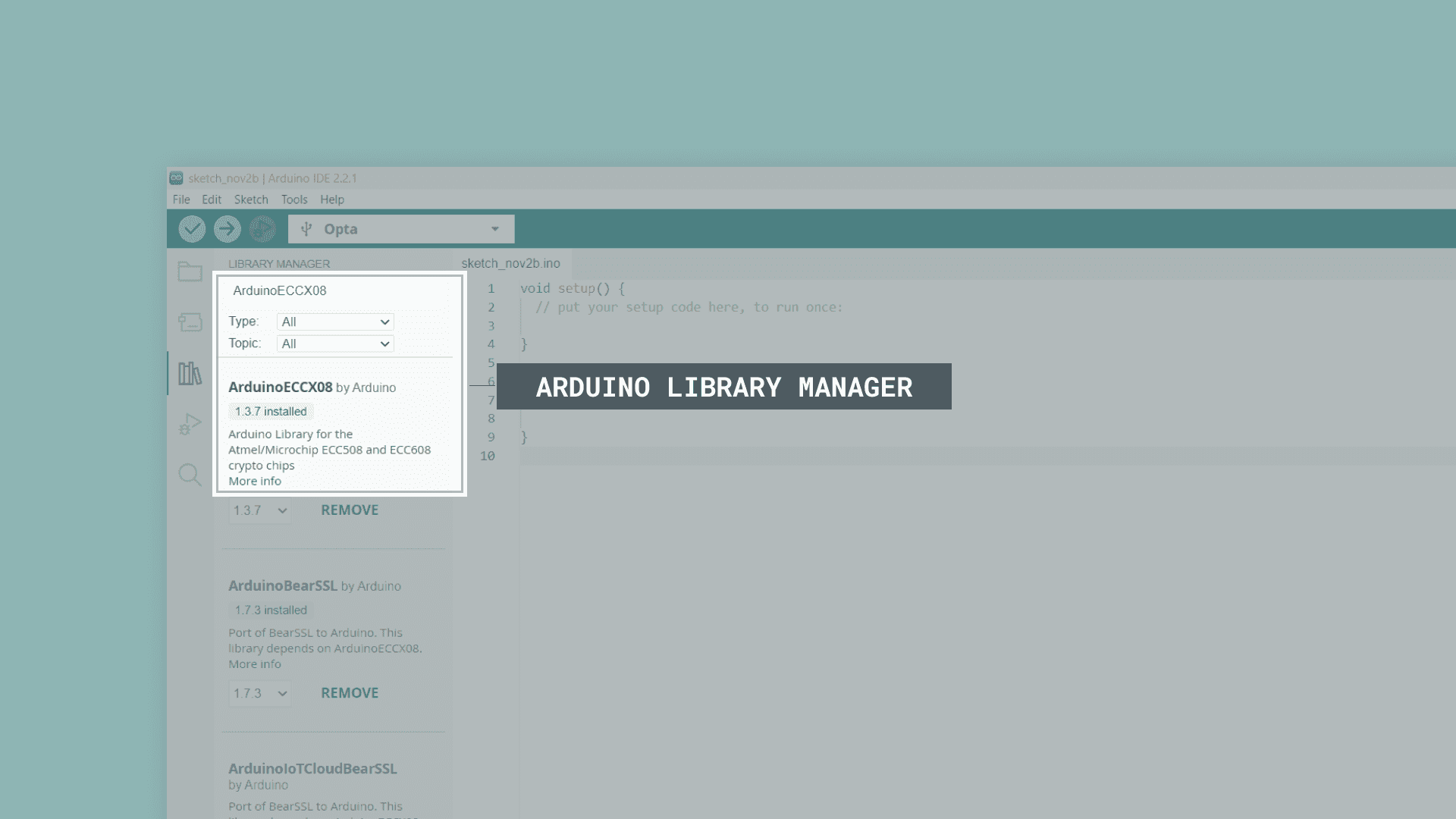

libraries installed on the Arduino IDE. You can do this by navigating to Tools > Manage Libraries or clicking the Library Manager icon in the left tab of the IDE. In the Library Manager tab, search for

NTPClient

Arduino_JSON

ArduinoECCX08

ArduinoBearSSL

ArduinoMqttClient

Arduino_ConnectionHandler

and

Arduino Cloud Provider Examples

and install the latest version.

Setting Up Your AWS Account

If you do not have an existing AWS account and user, refer to the online AWS documentation at Set up your AWS account. To get started, follow the steps outlined in the sections below:

Generating a Certificate Signing Request

As mentioned, AWS IoT Core requires devices that connect to it using the MQTT protocol to use X.509 certificates for authentication. We'll use an example sketch from the

ArduinoECCX08

library to generate a Certificate Signing Request (CSR) from an Opta™ device and then upload this CSR in the AWS console to create an X.509 certificate.

Open the

ECCX08CSR

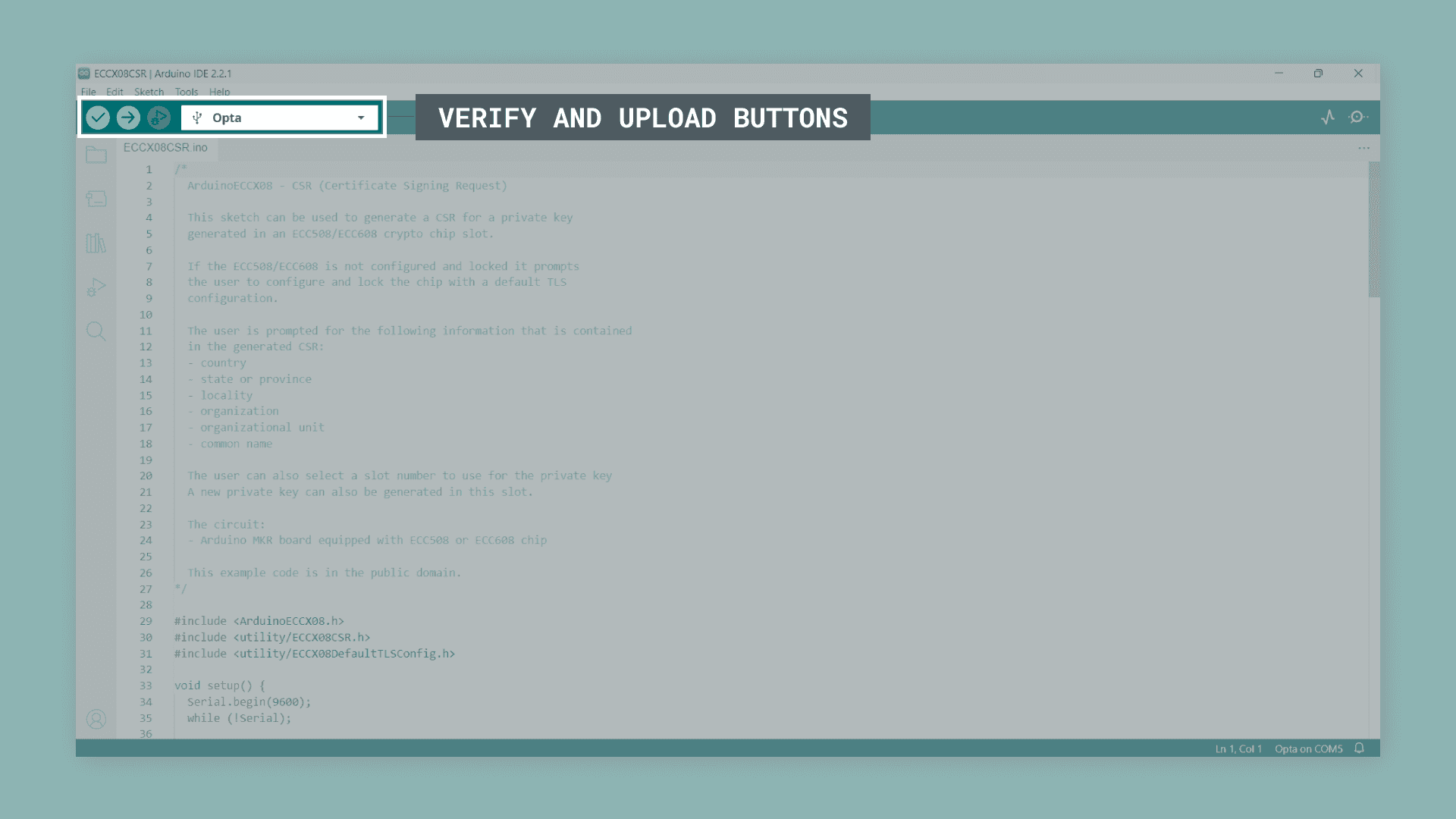

example sketch by navigating to File > Examples > ArduinoECCX08 > Tools. To upload the code to your Opta™ device, click the Verify button to compile the sketch and check for errors; then click the Upload button to program the device with the sketch.

Verify and Upload buttons of the Arduino IDE

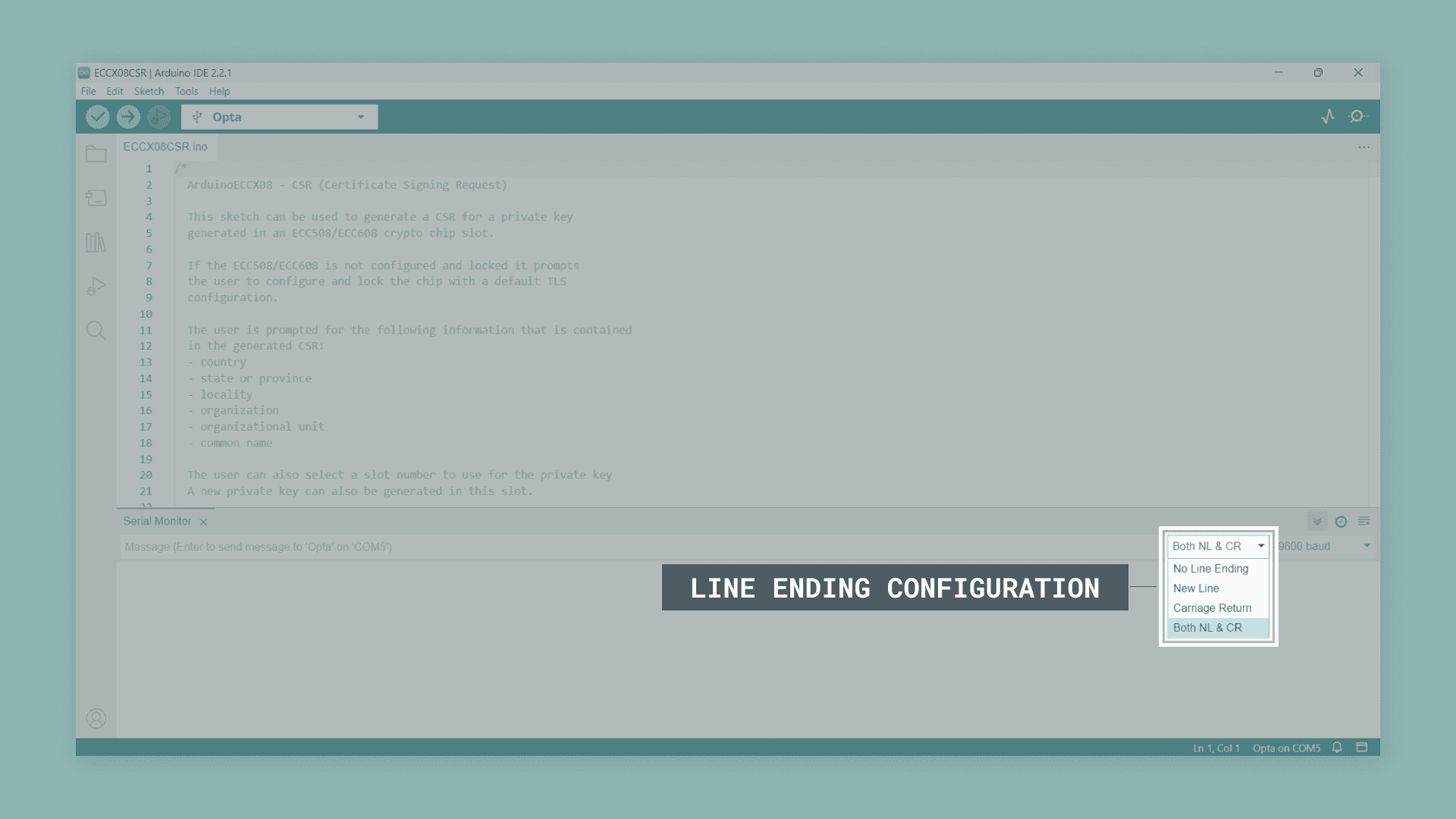

When finished, open the IDE's Serial Monitor. Ensure the line ending configuration is set to Both NL & CR, as shown in the image below.

Provide the information requested by the example sketch to generate a new CSR for your Opta™ device. Copy the generated CSR from the IDE's Serial Monitor, including

-----BEGIN CERTIFICATE REQUEST-----

and

-----END CERTIFICATE REQUEST-----

and save it to a new

.txt

file or

.csr

file using your favorite text editor. You will upload this file to the AWS console next.

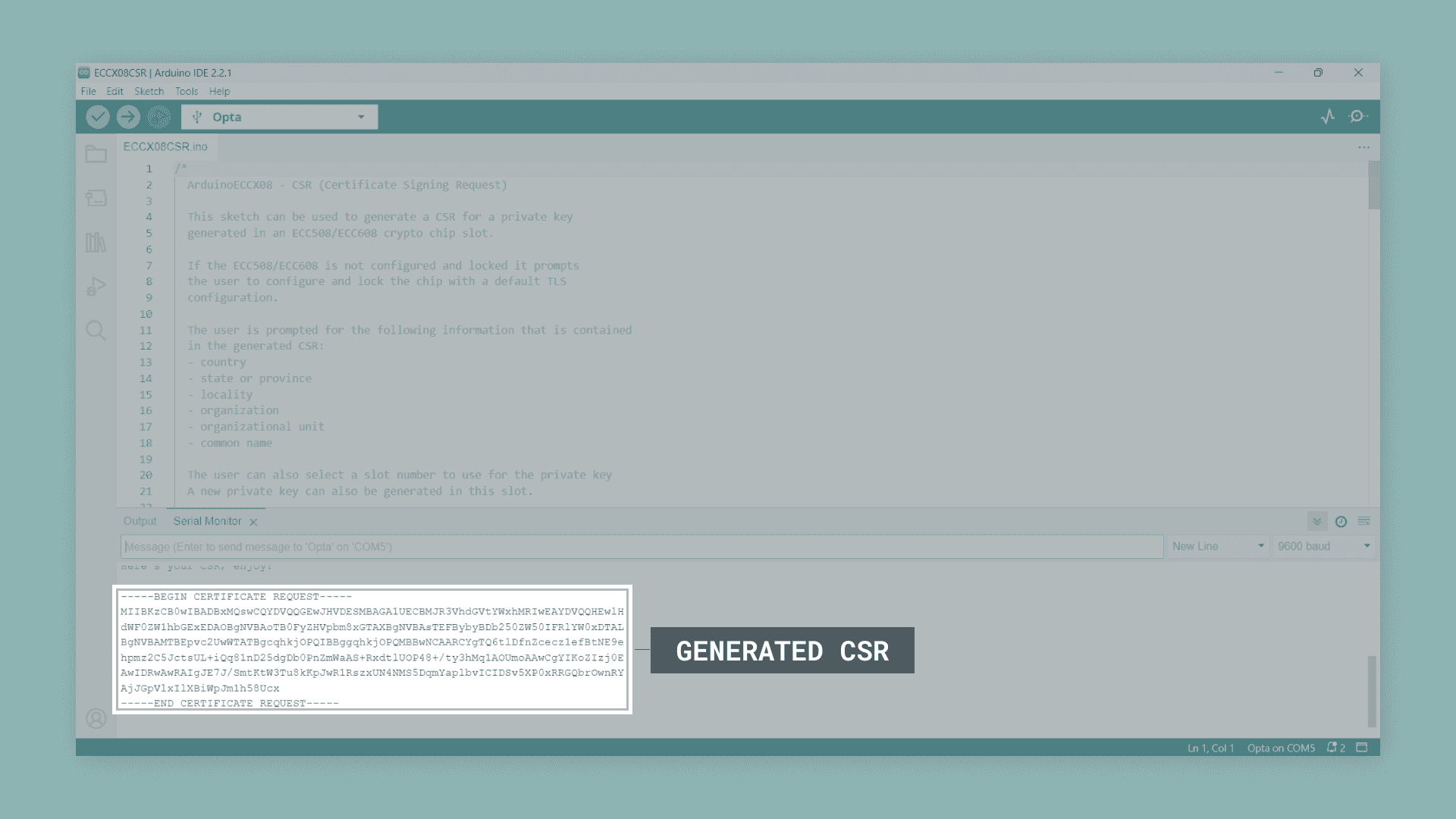

Generating a CSR with the Arduino ecosystem tools

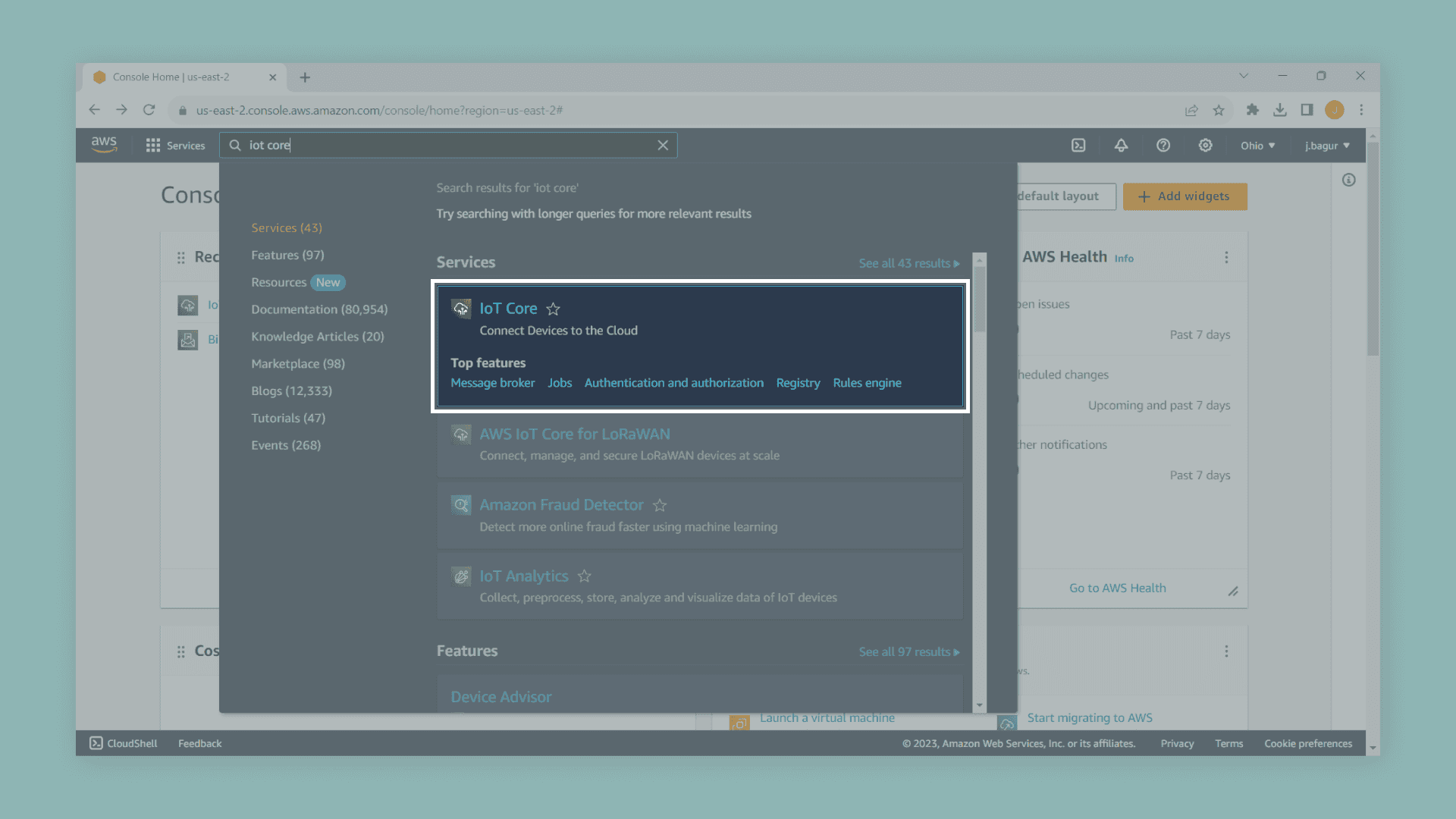

Now that we have a CSR to identify your Opta™ device, we need to login into the AWS IoT Core console and create a certificate.

Creating Resources in AWS IoT Core

Refer to the online AWS documentation at Create AWS IoT resources. Follow the steps outlined in the following sections to provision resources for your device:

Pay special attention to the notes in the shared sections.

Opta™ Configuration as a Resource

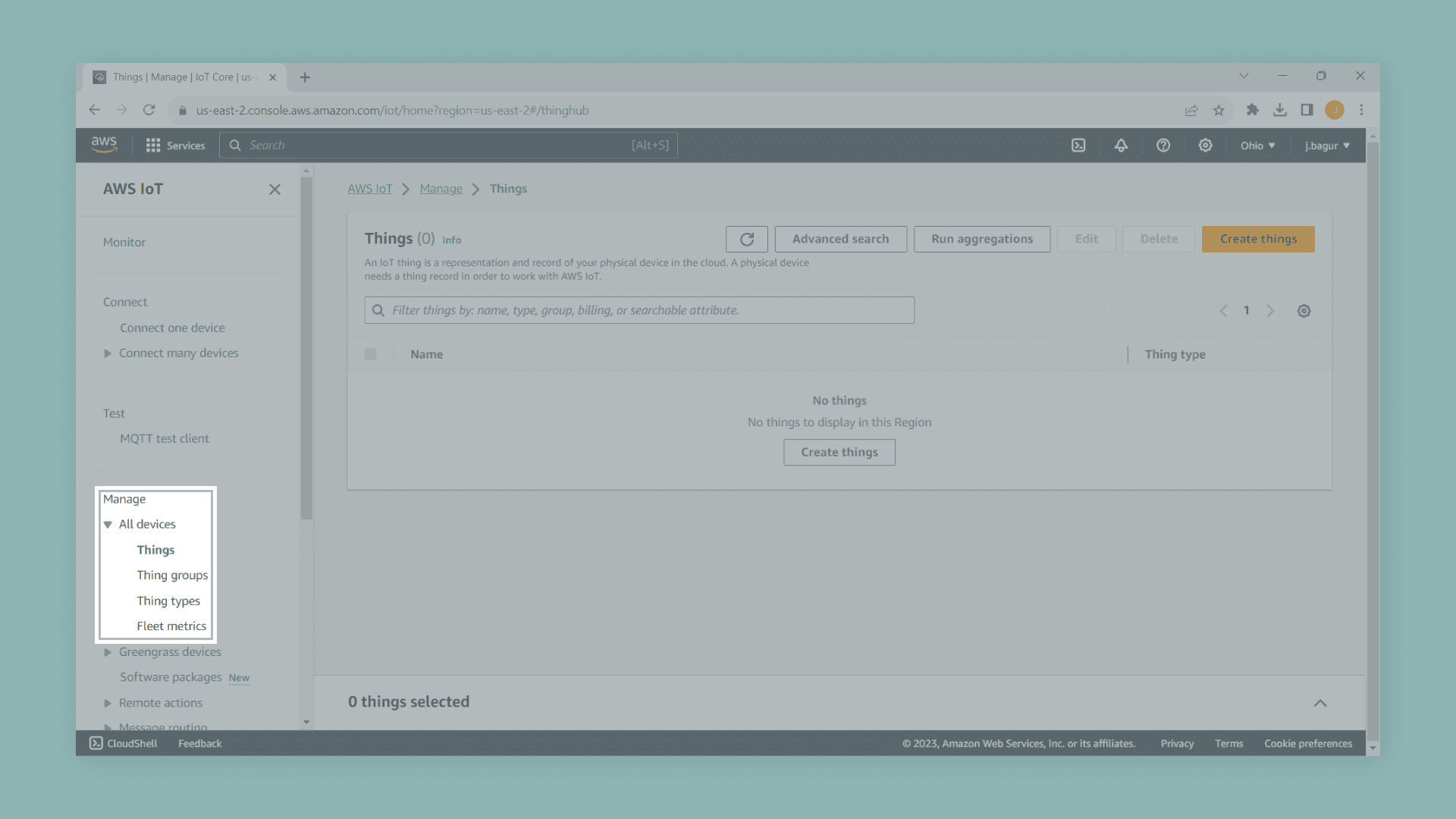

In the IoT Core services area, navigate to the menu on the left side and choose Manage > All devices > Things, then select the Create things button.

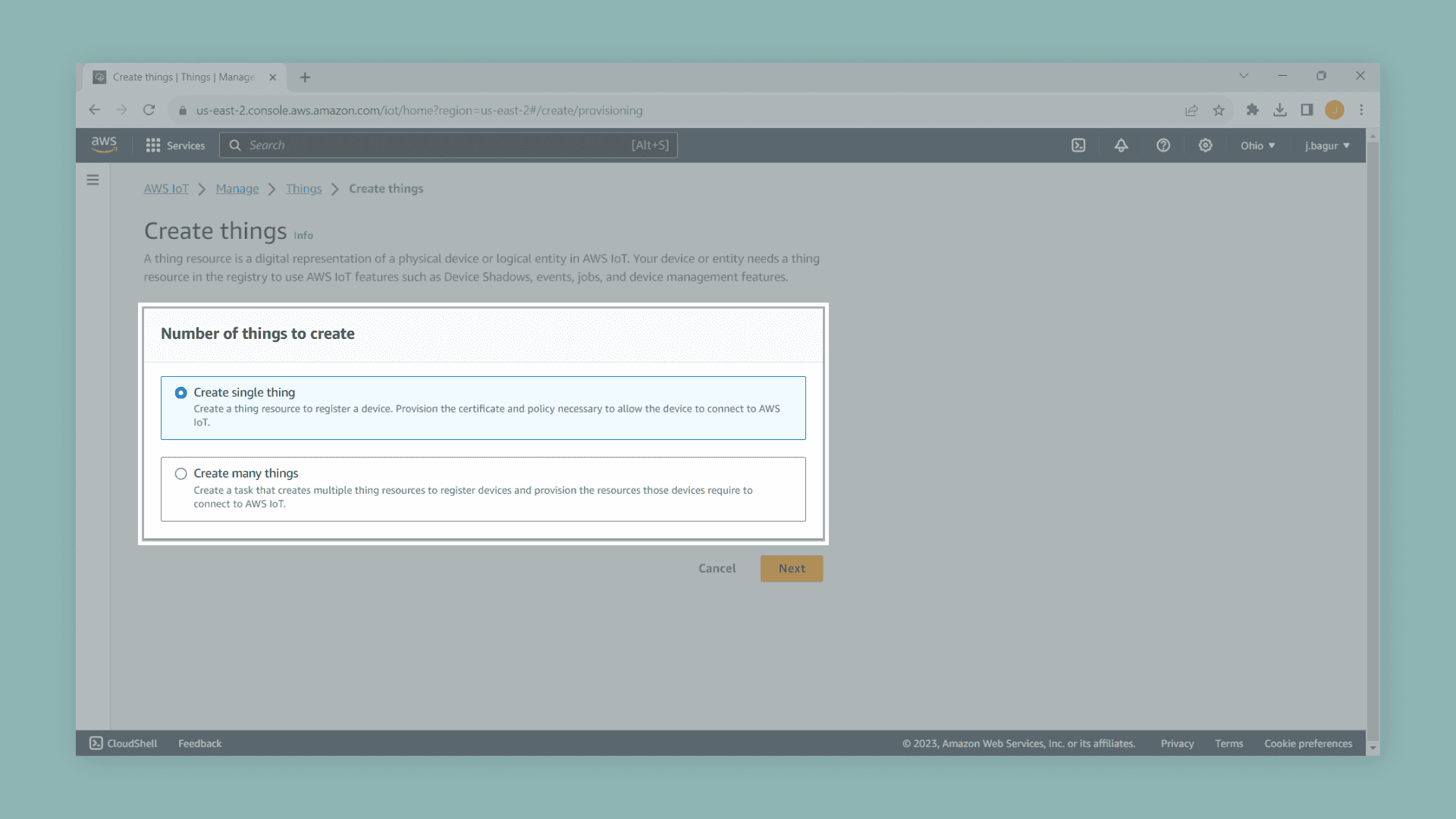

Once you click the Create things button, you will be transferred to a page where you can create a single or many things. Select the Create single thing option and then the Next button.

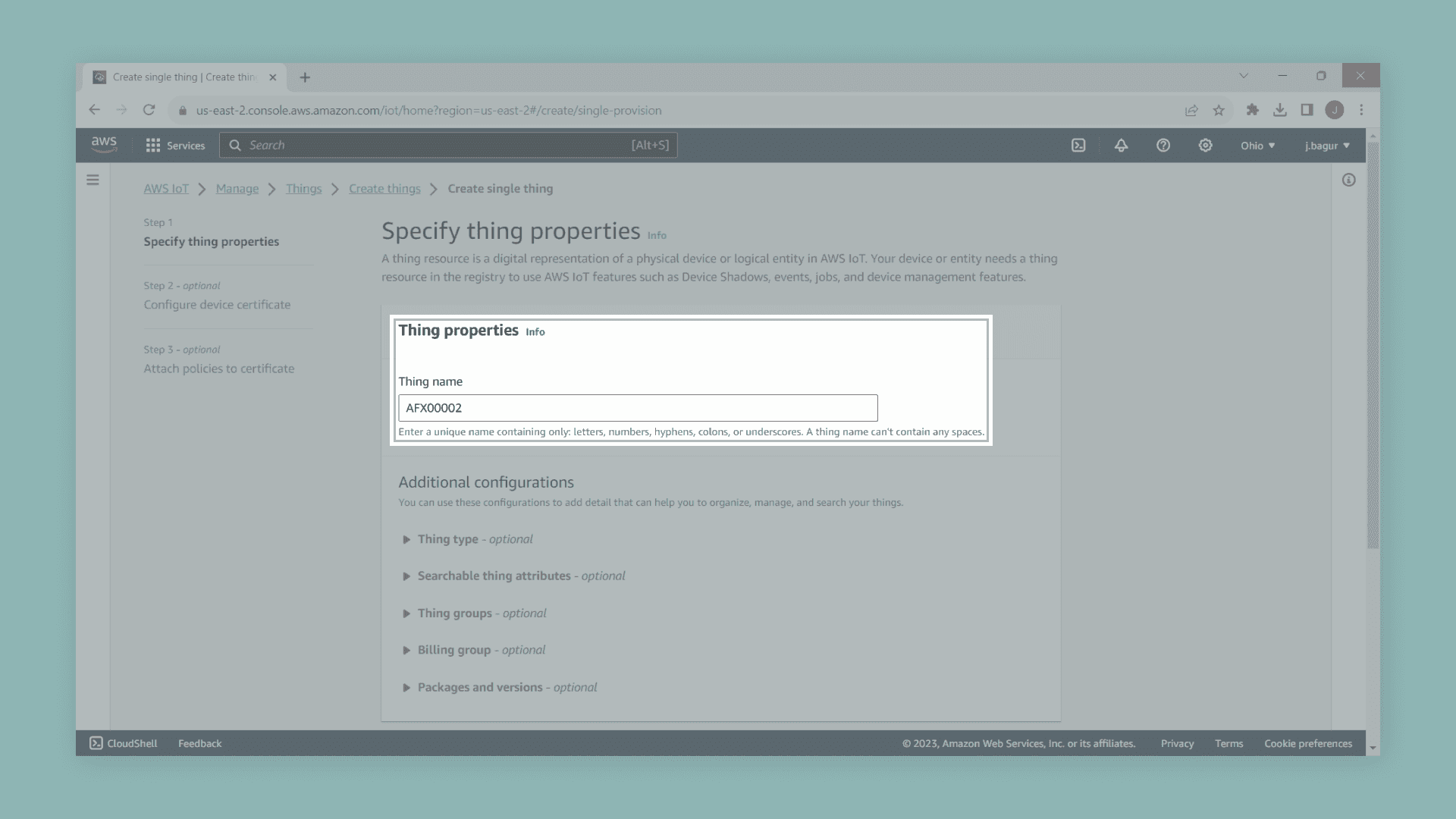

After selecting the Next button, you will be transferred to a page where you can name your Thing, name your Thing as same as the common name that you defined in the generated CSR, and then select the Next button.

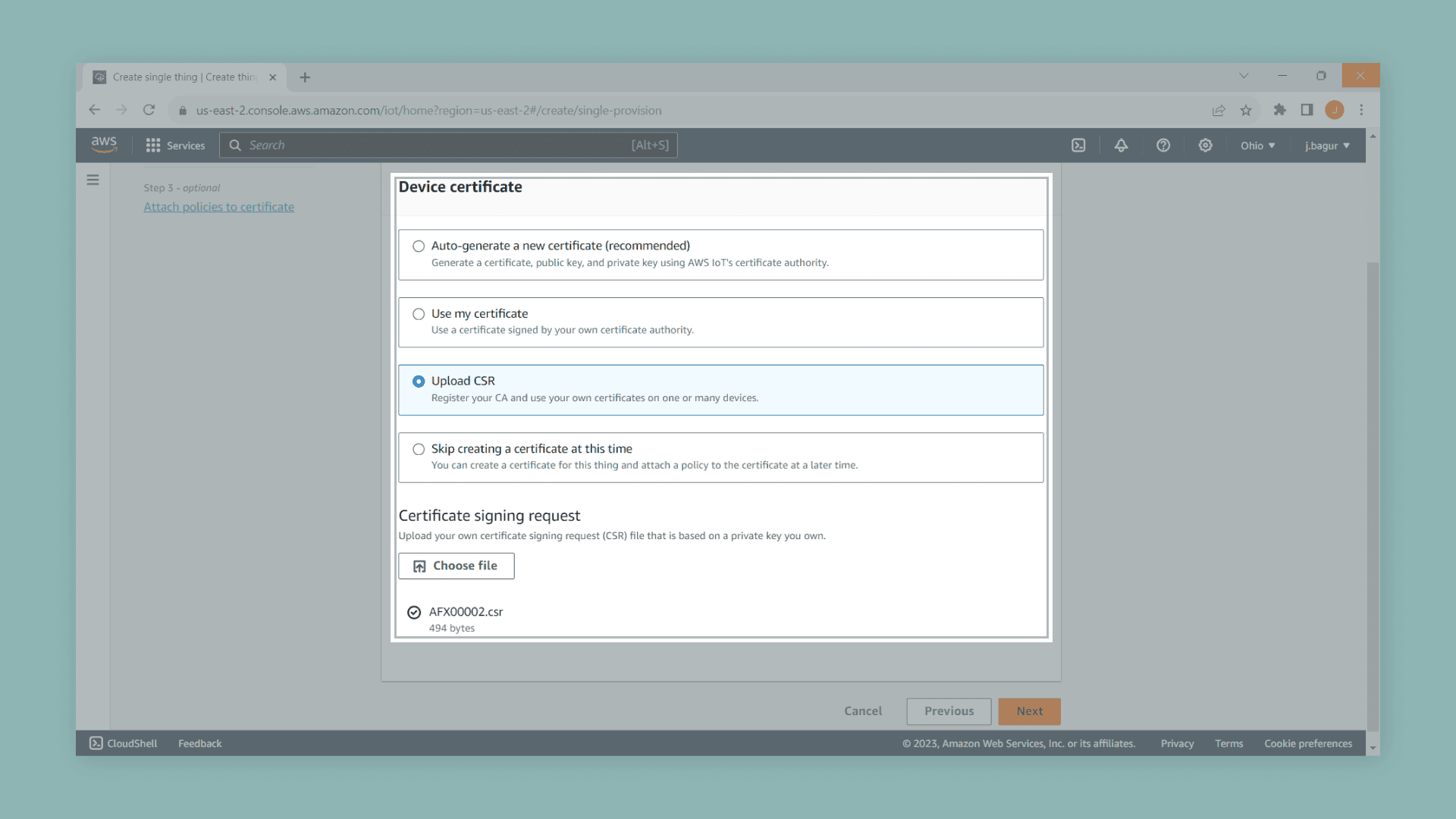

After selecting the Next button, you will be transferred to a page where you can upload the generated CSR. Choose the CSR file, then select the Next button.

After selecting the Next Button, you will be transferred to a page where you can choose the policies you want to attach to your Thing, and then select the Create thing button.

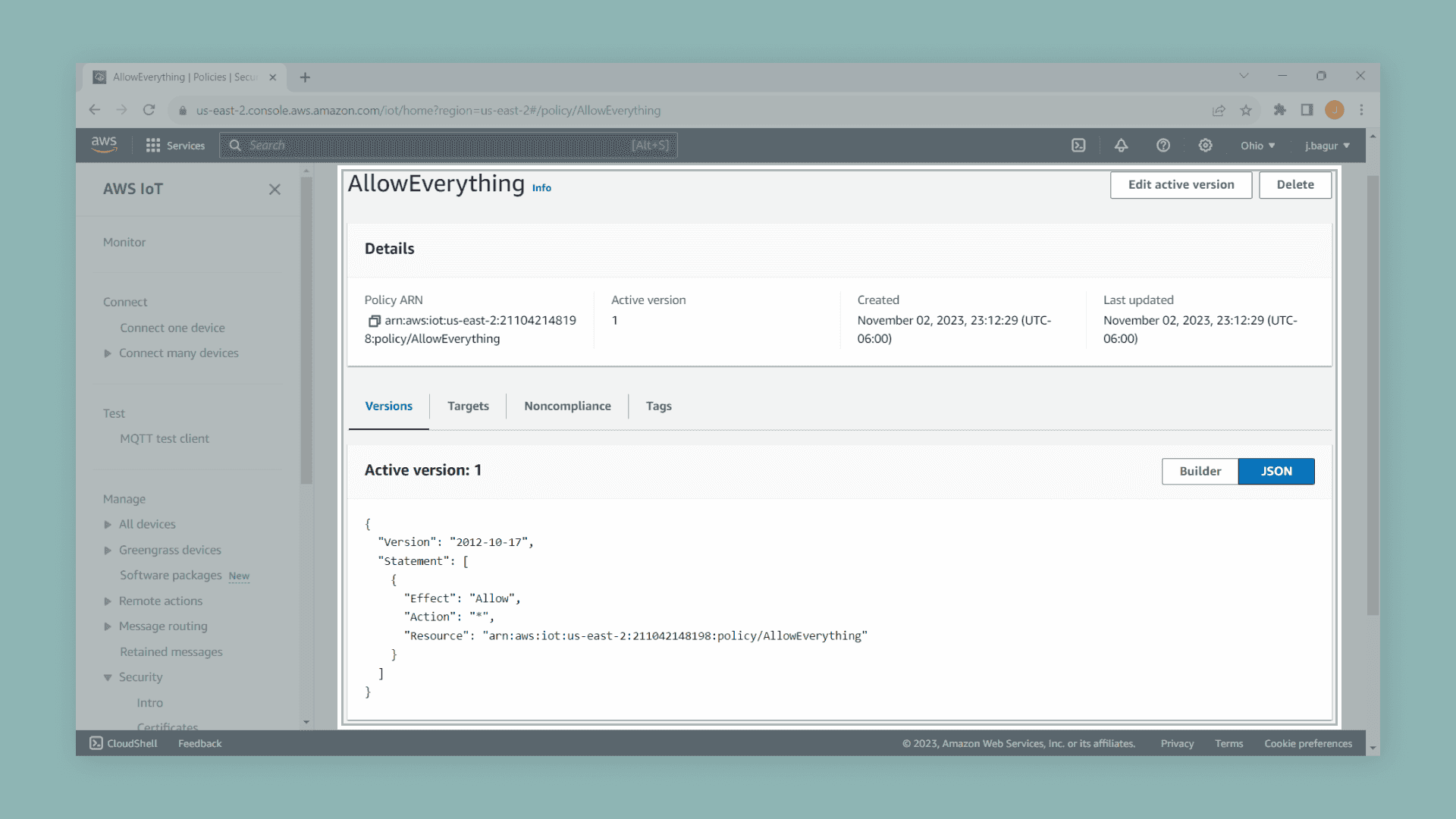

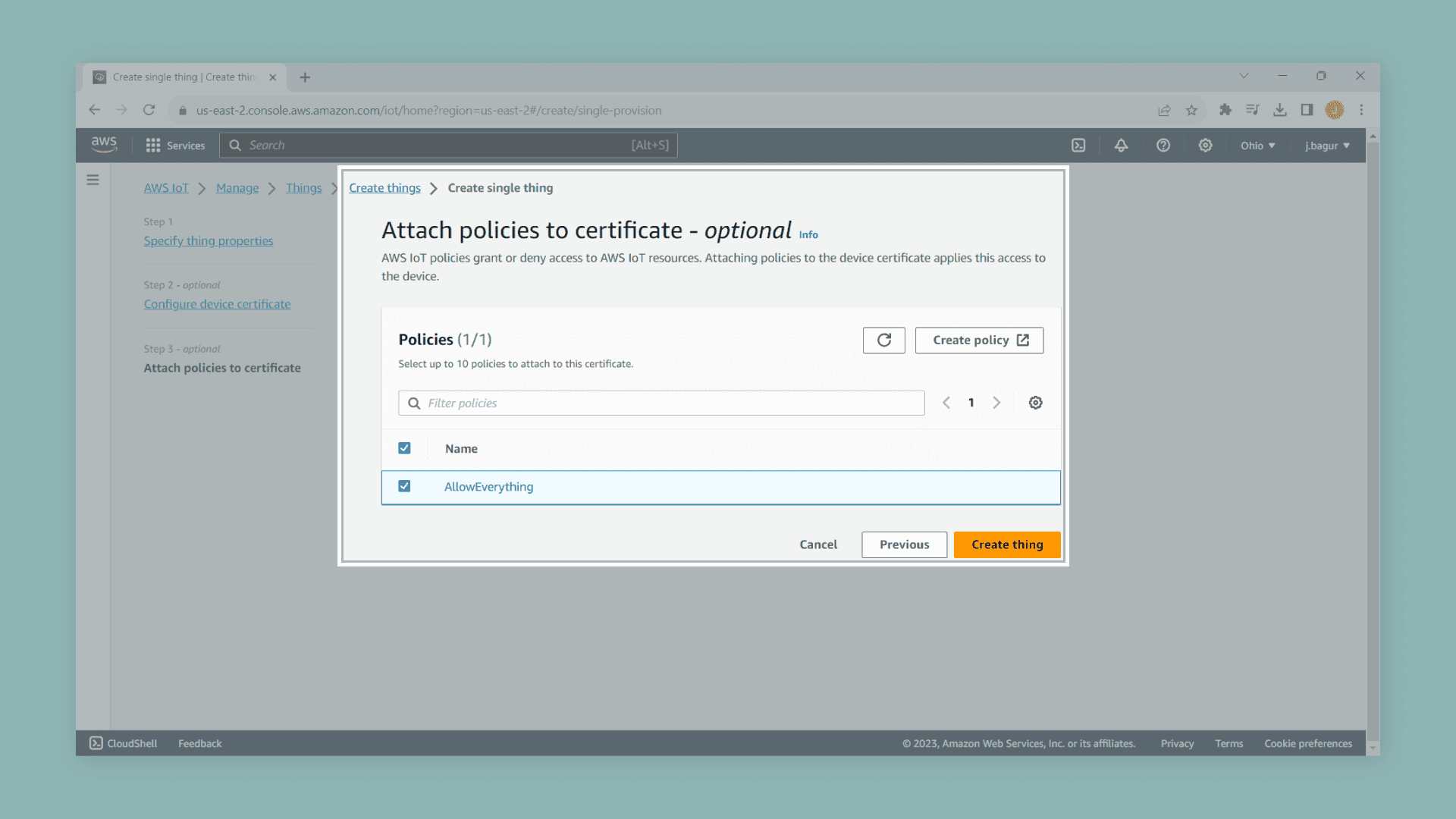

In the image shown below, you can see an example policy created for testing purposes only. Please do not use this policy in production since it is a wide-open policy and is not the best practice and standards. Refer to the online AWS documentation at Create an AWS IoT policy.

Provisioning Your Device

Select the Thing you just created and navigate to the Certificates tab; select the Certificate ID as shown in the image below.

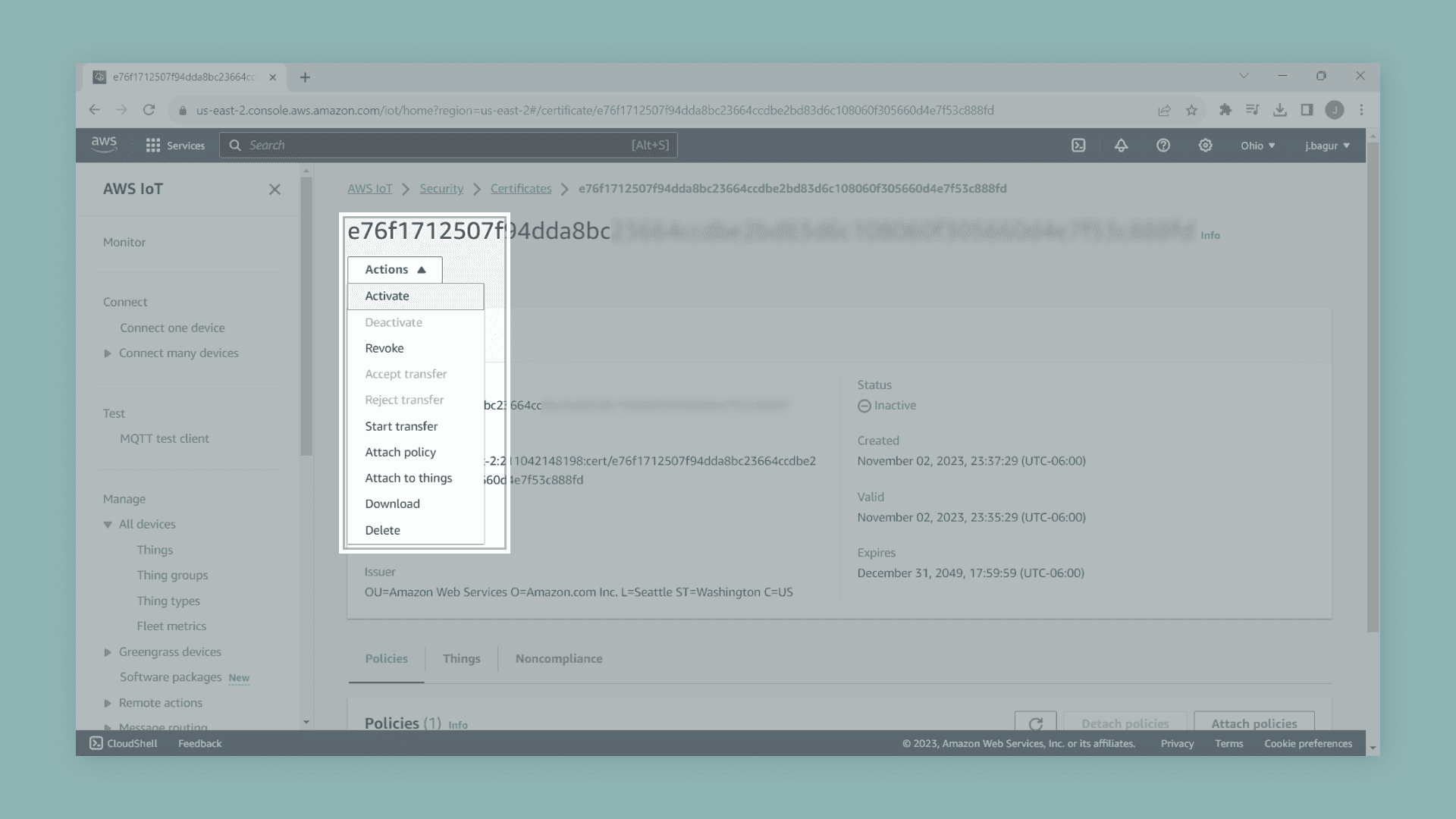

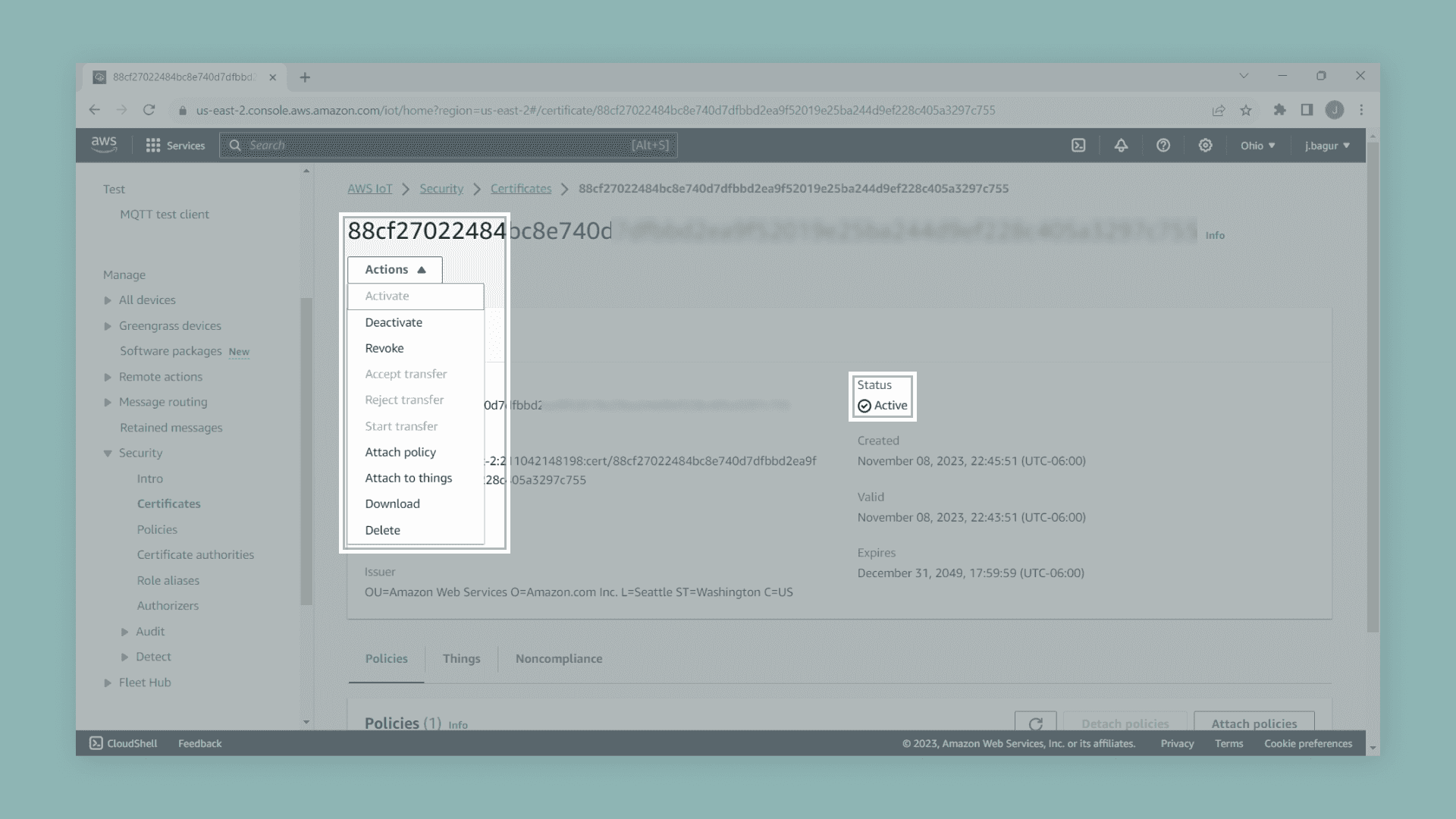

Once in the Certificate area, select the Actions dropdown menu and choose Activate. After the certificate is activated, the next step is to download the certificate. Save the downloaded certificate in a place where you can find the certificate for future action.

Connecting Your Device To AWS IoT Core

The first step to connect your Opta™ device is getting the device data endpoint from your AWS account. In your AWS account, navigate to the menu on the left side and choose Settings; copy the provided endpoint.

The next step depends on the variant of your Opta™ device you have.

For Opta™ Lite (SKU: AFX00003): Open the AWS IoT Ethernet example sketch in the Arduino IDE using the File > Examples > Arduino Cloud Provider Examples > AWSIoT > AWS_IoT_Opta > AWS_IoT_Opta_ethernet.ino
For Opta™ RS485 (SKU: AFX0001): Open the AWS IoT Ethernet example sketch in the Arduino IDE using the File > Examples > Arduino Cloud Provider Examples > AWSIoT > AWS_IoT_Opta > AWS_IoT_Opta_ethernet.ino
For Opta™ WiFi (SKU: AFX00002): If you connect using Ethernet, open the AWS IoT Ethernet example sketch in the Arduino IDE using the File > Examples > Arduino Cloud Provider Examples > AWSIoT > AWS_IoT_Opta >AWS_IoT_Opta_ethernet > AWS_IoT_Opta_ethernet.ino. If you connect using Wi-Fi®, open the AWS IoT Wi-Fi® example sketch in the Arduino IDE using the File > Examples > Arduino Cloud Provider Examples > AWSIoT > AWS_IoT_Opta->AWS_IoT_Opta_wifi > AWS_IoT_Opta_wifi.ino

In the

arduino_secrets.h

tab update the Wi-Fi® Setting with the SSID and password of your Wi-Fi® network. Update the

secret_broker

with the device data endpoint captured before, and update the

secret_port

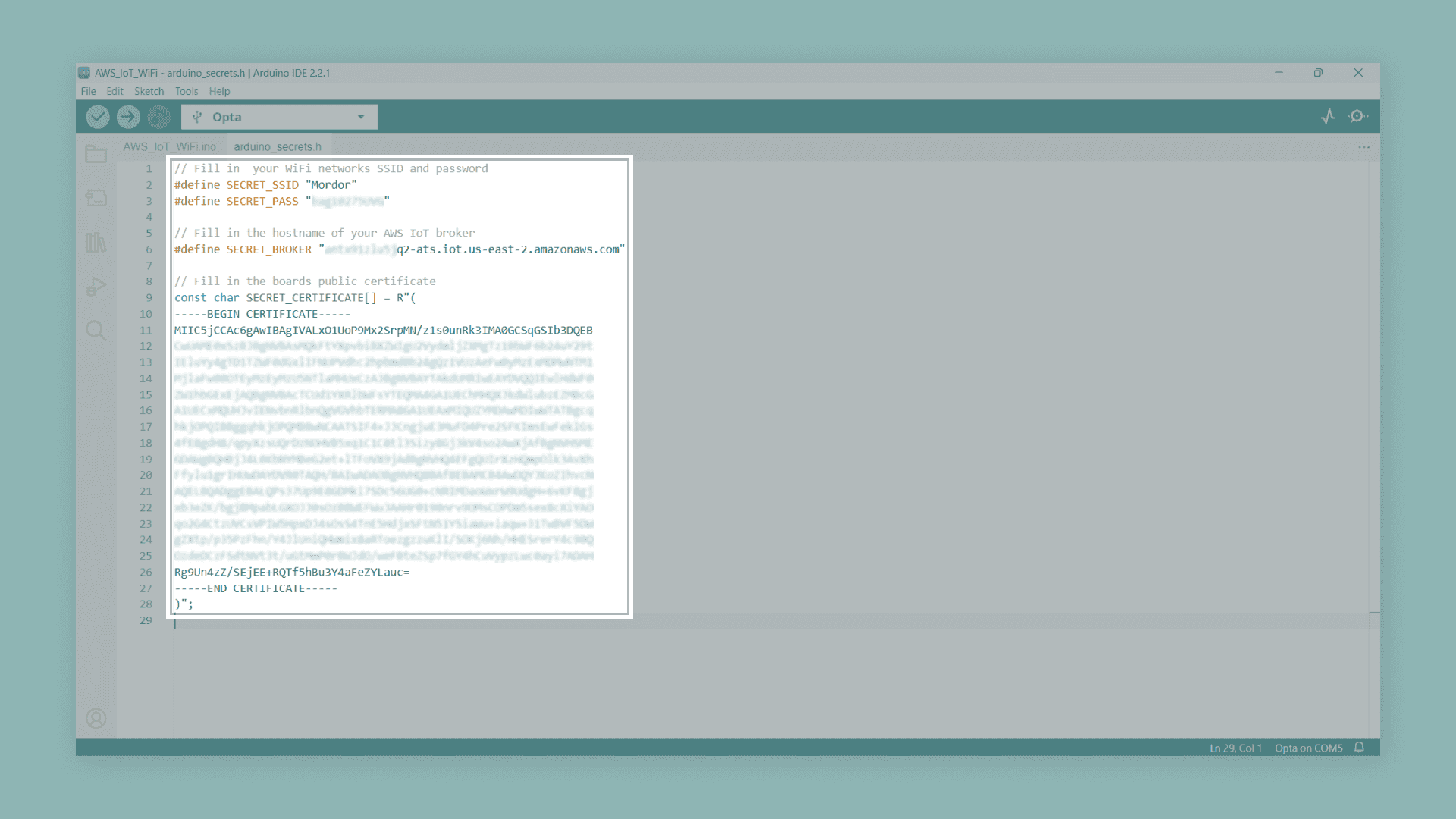

with the proper port used to connect to AWS IoT. Finally, open the certificate file you downloaded with a text editor and copy/paste the value in the sketch in the

secret_certificate

area. In the image below, the

arduino_secrets.h

tab for the

AWS_IoT_Opta_wifi.ino

sketch is shown.

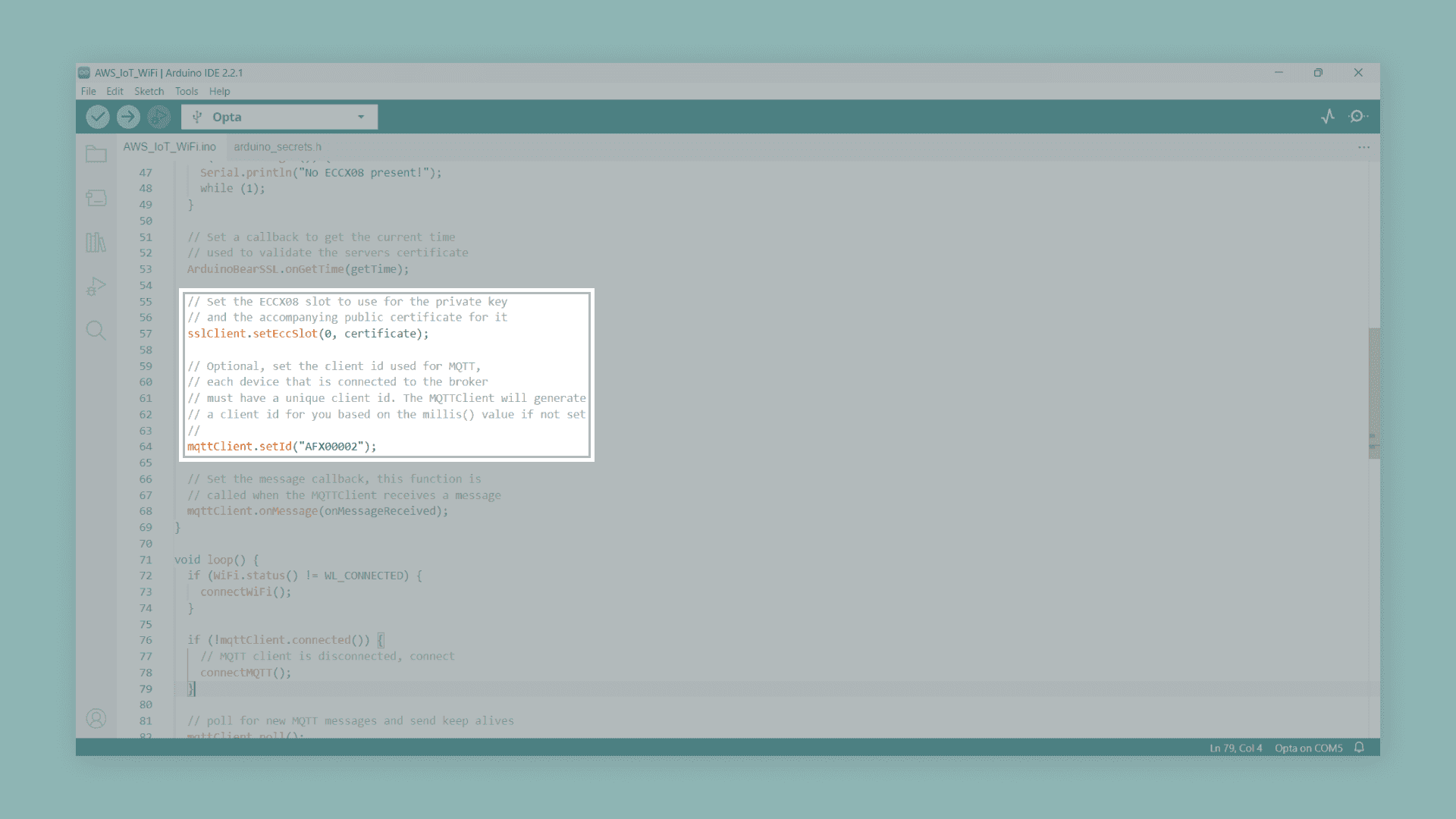

Within the

setup()

, the lines

sslClient.setEccSlot(0, certificate)

and the

mqttClient.setId(“clientID”)

are important. The

setECCSlot

function sets the slot you used before for the CSR; the

setId

function sets the name you gave to your Thing in the AWS IoT Core.

Once the example sketch is set with proper values, the next step is to upload the sketch and test it.

Uploading the Example Sketch

After modifying the example sketch, click the Verify button to compile the sketch and check for errors; then click the Upload button to program the device with the sketch. Open the IDE's Serial Monitor to monitor the connection Wi-Fi connection of your device and its connection to AWS.

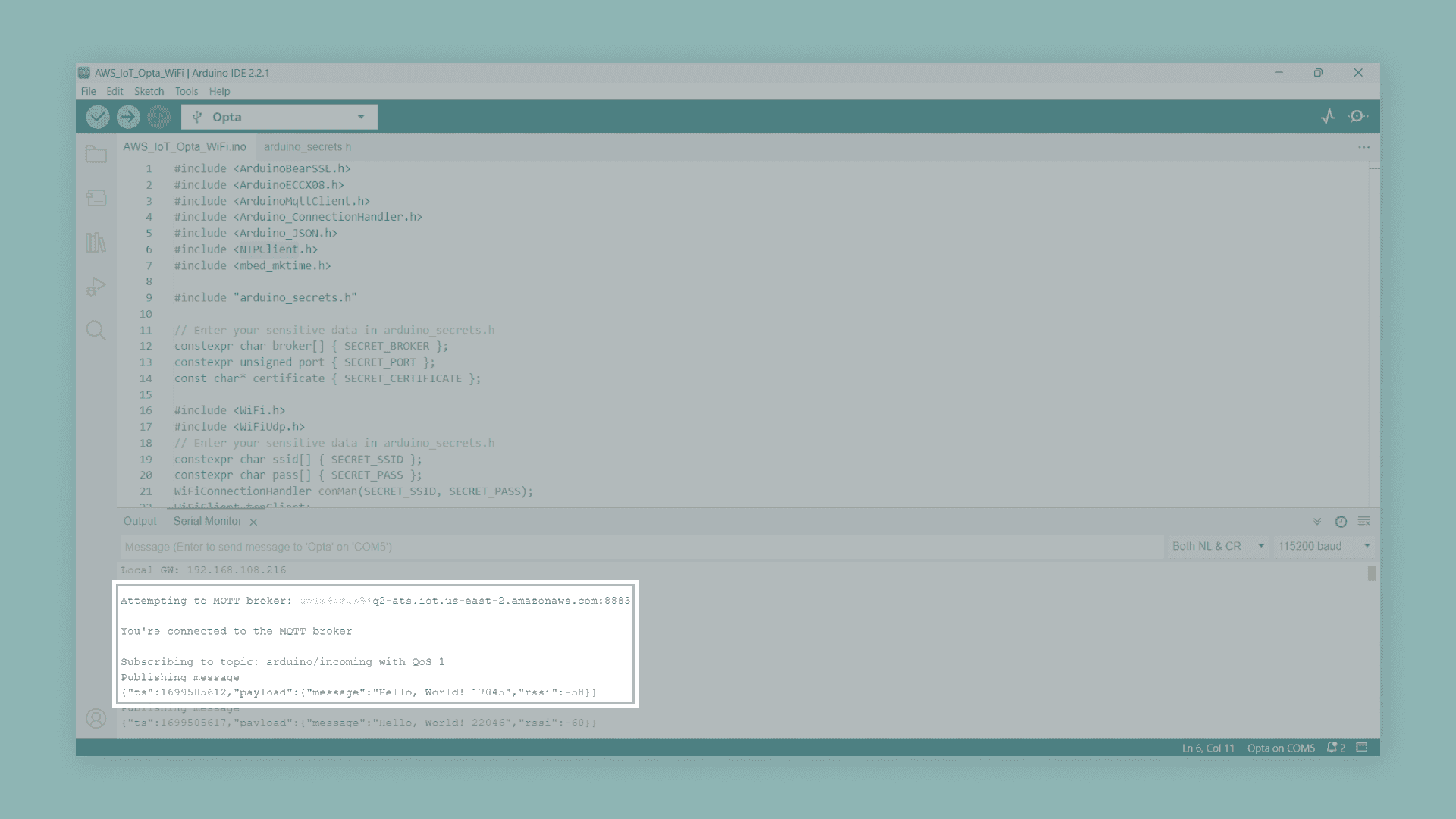

The example sketch automatically connects to an Ethernet or a Wi-Fi® network and the AWS IoT Core broker. Then, it subscribes to the

arduino/incoming

topic and sends messages to the

arduino/outgoing

topic every five seconds.

Testing the Example Sketch

As soon as your Opta™ device is connected to the AWS IoT broker, it publishes automatically a simple message to the

arduino/outgoing

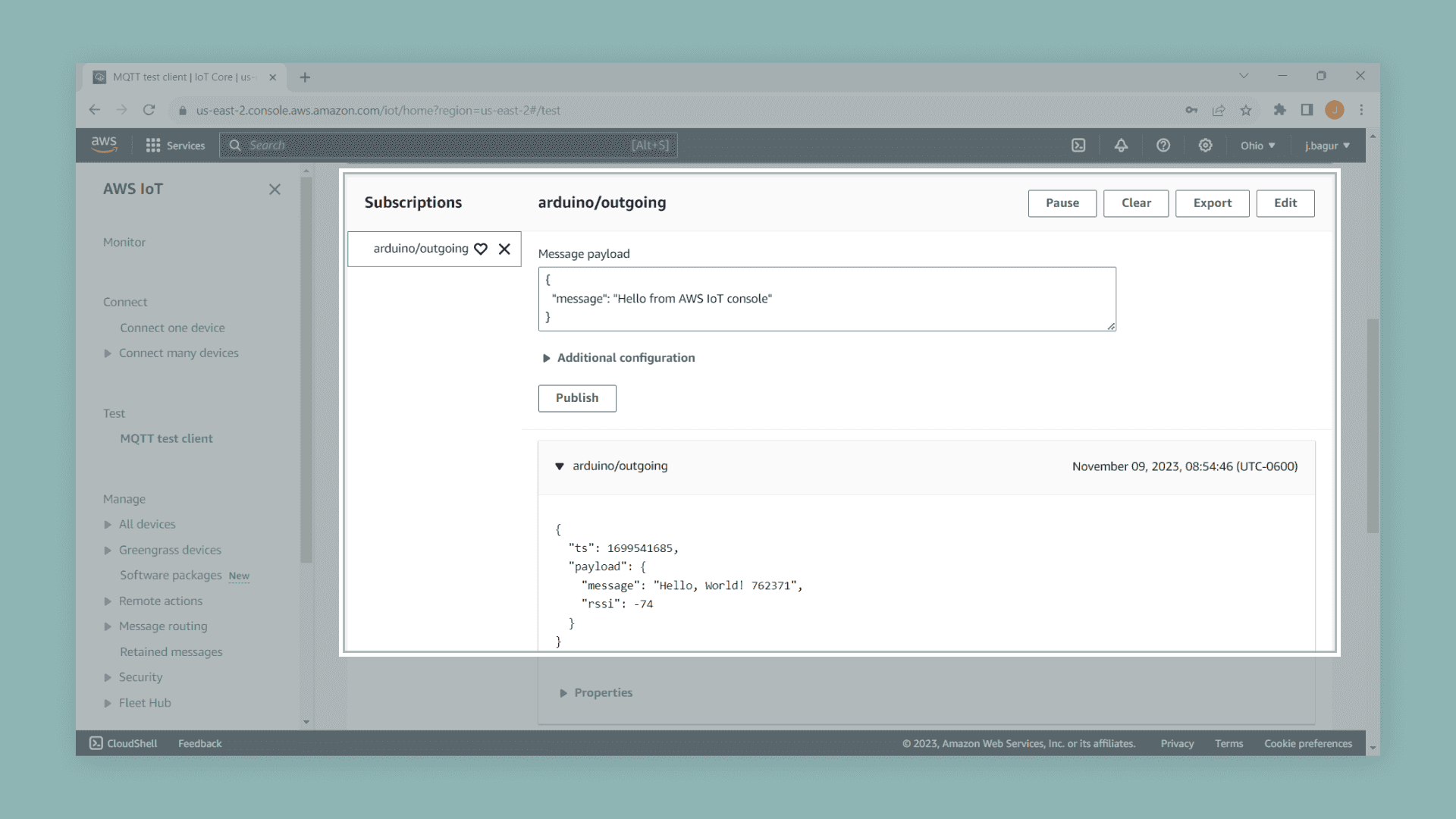

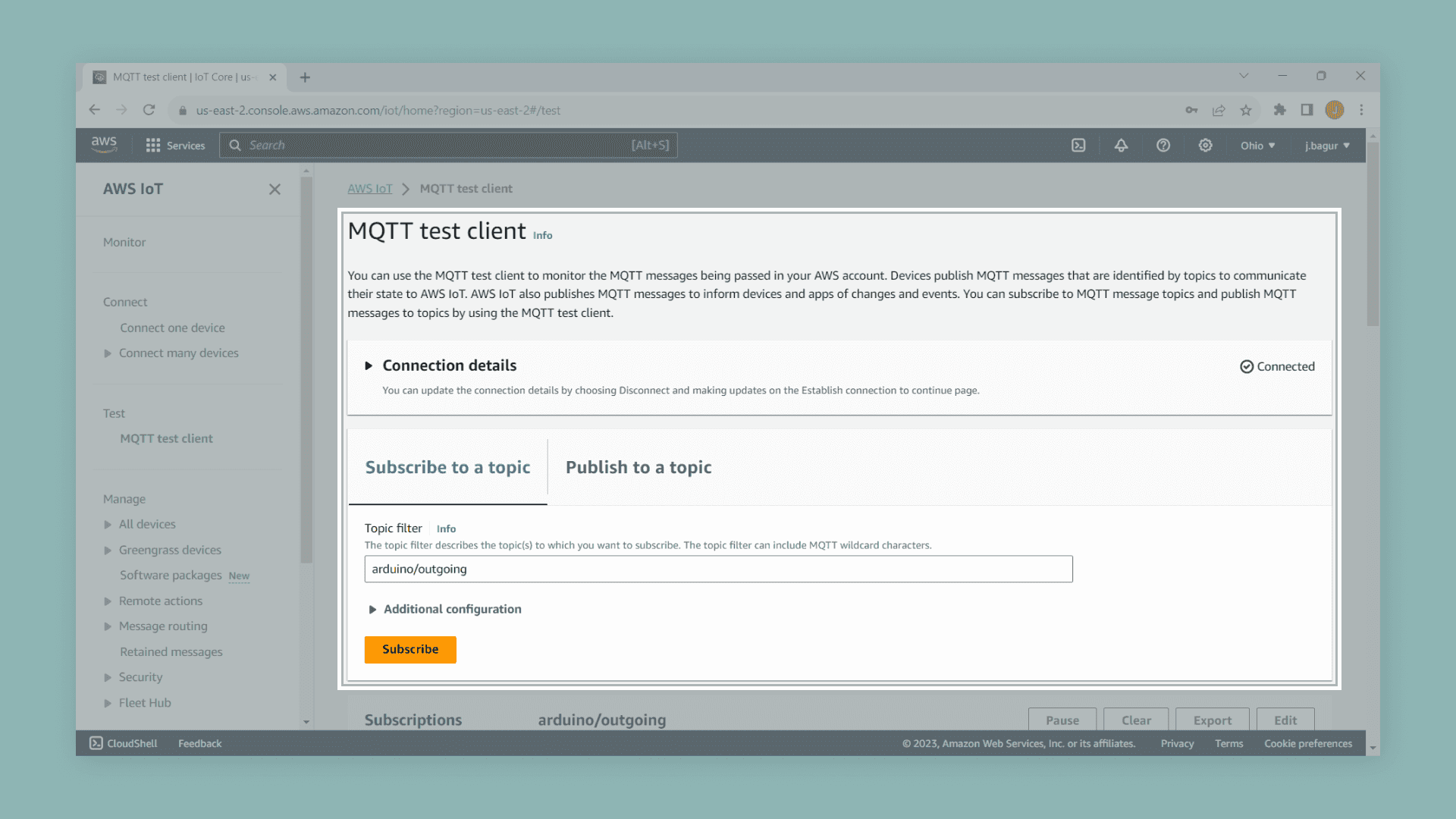

topic every five seconds. On the AWS IoT Core console, open the MQTT test client and add a subscription for the

arduino/outgoing

topic; choose the JSON formatting as display option.

See messages arriving from your Opta™ device every five seconds.

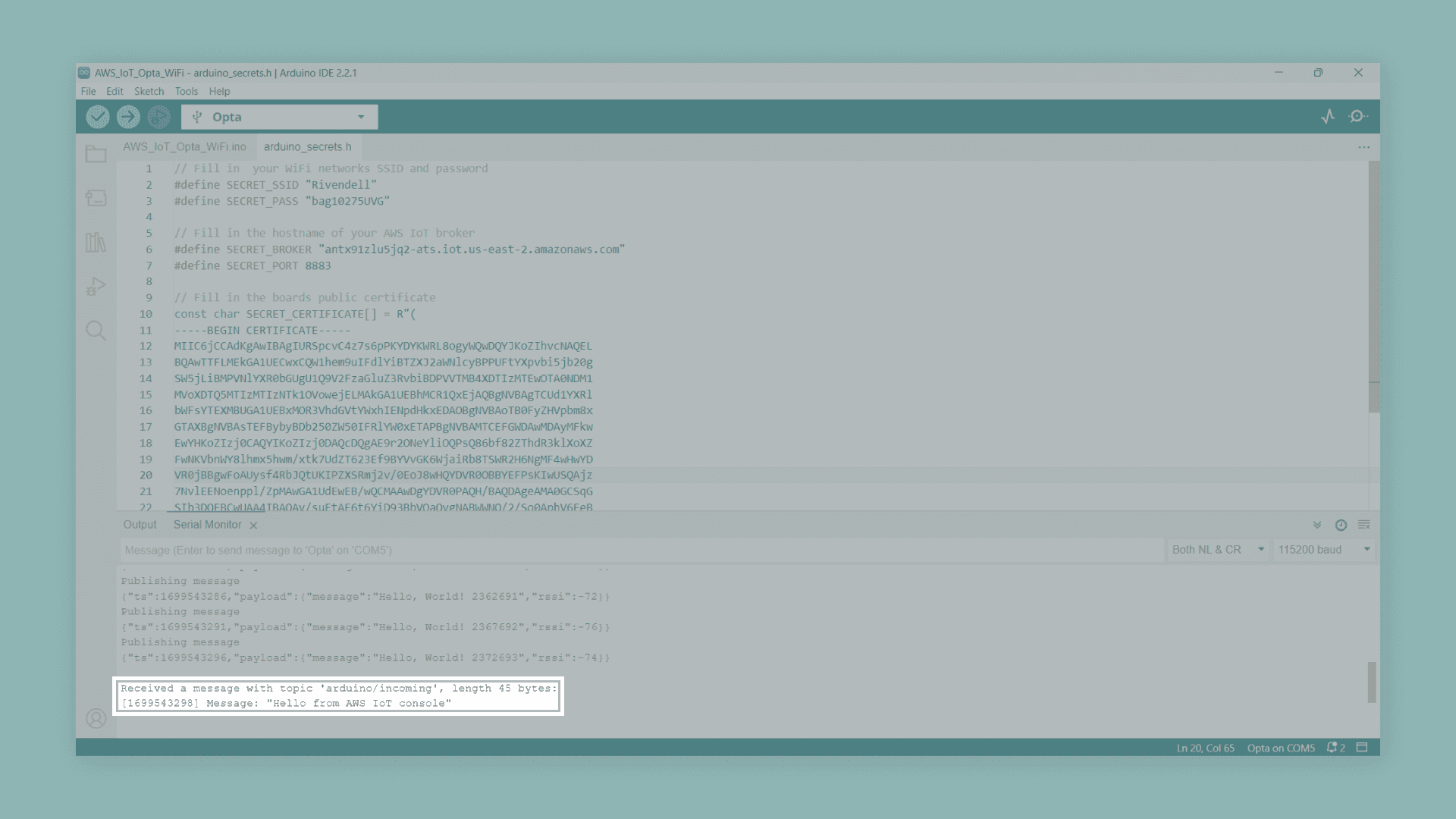

On the AWS IoT Core console, open the MQTT test client and select the "Publish to a topic" tab. Add

arduino/incoming

as Topic name and click the "Publish" button to send data to Opta™. Data in the "Message payload" text area shows on the Serial Monitor of the Arduino IDE.

Please note the example sketch can parse only JSON messages in the form:

1{
2  "message": "Hello from AWS IoT console"
3}

The message can be modified as you like, remember to adapt the example sketch accordingly.

Troubleshooting

For more information with AWS, refer to the AWS online documentation on Troubleshooting AWS IoT. For more details on Opta™ devices, refer to Opta™'s online documentation on Arduino Docs.

If your Opta™ device fails to connect to AWS IoT Core, check the following:

X.509 certificate: it must be activated in AWS IoT Core.

Example sketch: all the fields from the

arduino_secrets.h

file must be compiled (

SECRET_SSID

SECRET_PASS

SECRET_BROKER

SECRET_PORT

, and

SECRET_CERTIFICATE
