08. How To Build a Custom Image for Your Portenta X8

This tutorial teaches you how to compile a custom image for your Portenta X8.

AUTHOR: Pablo Marquínez

LAST REVISION: 03/09/2023, 02:39 PM

Overview

In this tutorial, you will learn how to build an image for the Portenta X8 with the source code provided at our GitHub repository for lmp-manifest. Building your image locally can help debug several aspects of the system, such as the bootloader or kernel support.

Images built locally cannot register with FoundriesFactory and will not be OTA compatible, but this is a good alternative for those who do not have a FoundriesFactory subscription.

This tutorial targets customers that are not FoundriesFactory subscribers, but still want to extend the functionality of the Arduino pre-built sources by building their images. For FoundriesFactory subscribers, we strongly suggest making use of your Factory's continuous integration system for image creation.

Goals

Learn how to build a "builder" Docker image
Learn how to get the required files
Learn how to configure the build settings
Learn how to build the image
Learn how to save the needed files for flashing

Required Hardware and Software

Arduino Portenta X8
Docker Engine
~60GB available space on your machine's drive

Instructions

Docker

Build the Docker Image

You will create a Docker image that has the dependencies needed to build your device image. To do so, you will need to clone our lmp-manifest repository. The following steps will guide you through the process:

First, clone the lmp-manifest repository with the following command:

1git clone https://github.com/arduino/lmp-manifest.git

After cloning the lmp-manifest repository successfully, we will proceed to build the Docker Image using following command sequence:

1cd lmp-manifest
2docker build -t yocto-build ./lmp-manifest

You will be able to see similar result if everything went successfully.

Run The Docker Image (Builder)

Once the Docker Image is ready, we will run the image with the

-v

argument to mount a volume. This allows you to use a host directory inside the Docker image, so you can store all the data and build artifacts safely.

If you do not use a volume while running the image, you will lose the data when the image stops

Run the

yocto-build

builder image with following command:

1docker run -v <source>:/dockerVolume -it yocto-build bash

We need to switch to the

builder

user with the following command after the previous process, and the password is builder:

1su builder

Image Setup and Build

You can download a bash script that wraps all the upcoming steps.

Setup the Environment

Now that you are running inside the Docker Image, you can use tools like git-repo, which is already installed.

First, configure git with your credentials. They don't need to be the real ones but are required by

git-repo

to pull. The following commands can be used for this example:

1git config --global user.email "you@example.com"
2git config --global user.name "Your Name"

Change to the home directory, and initialize the repository using repo:

1cd ~
2repo init -u https://github.com/arduino/lmp-manifest.git -m arduino.xml -b release

Then pull the needed files with:

1repo sync

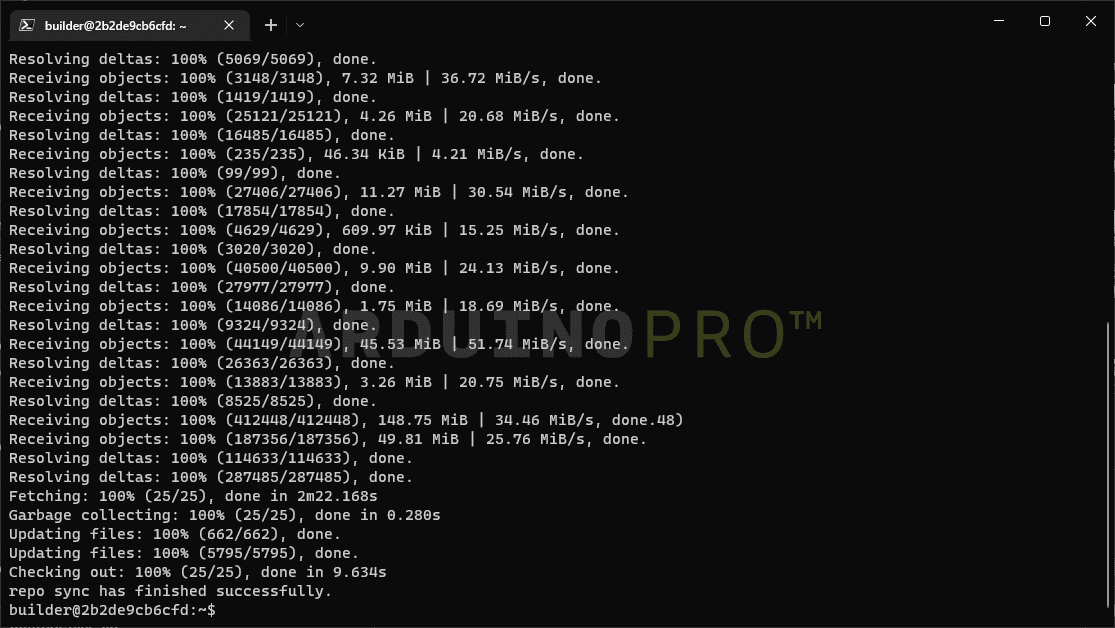

After completion, it should look like the following image:

NOTE: If you are a FoundriesFactory subscriber and want to build your Factory sources locally, please use the manifest link for your Factory as below. This is not recommended as images built locally cannot register to the Factory and receive OTAs.

Set Up the Portenta X8 Distribution

It is recommendable to set

DISTRO

to either:

```
lmp-base
```
: insecure image without ostree, developer-friendly, not OTA compatible
```
lmp
```
: secure image without xwayland
```
lmp-xwayland
```
: secure image with xwayland support

It will help to classify the image if it follows any of the previous characteristics and with the following command:

1DISTRO=lmp-xwayland MACHINE=portenta-x8 . setup-environment

lmp-partner-arduino-image

will be better supported soon.

It will then switch automatically to a new folder. Continuing, you can now proceed to accept the EULA using the following command:

1echo "ACCEPT_FSL_EULA = \"1\"" >> conf/local.conf

You will be able to see similar output as following after the previous steps:

Build an Image With Bitbake

To start building the image, following command is used:

1bitbake lmp-partner-arduino-image

This process may take ~7 hours depending on the build host

If you want to use your computer while it builds, it is recommendable to lower the threads used since it takes a lot of resources and time. Do so by opening

conf/local.conf

and lowering the values of the following variables:

```
BB_NUMBER_PARSE_THREADS = "4"
```
```
BB_NUMBER_THREADS = "4"
```

And add:

```
PARALLEL_MAKE = "-j 4"
```

If possible, it is a good practice to understand the available threads of your computer used for this process, to optimize the resources accordingly for optimal balance between build performance and side tasks while waiting for the build. Once it finishes you will see something similar to:

Setup Manufacturing Tools

To flash your board, you will need to compile lmp-mfgtool distro to get additional tools. First, go into your home folder and change

DISTRO

following the command sequence:

1cd ..
2DISTRO=lmp-mfgtool MACHINE=portenta-x8 . setup-environment
3echo "ACCEPT_FSL_EULA = \"1\"" >> conf/local.conf
4echo "MFGTOOL_FLASH_IMAGE = \"lmp-partner-arduino-image\"" >> conf/local.conf

You should be able to see similar results as following image when successful:

Build Manufacturing Tools: Flash The Board

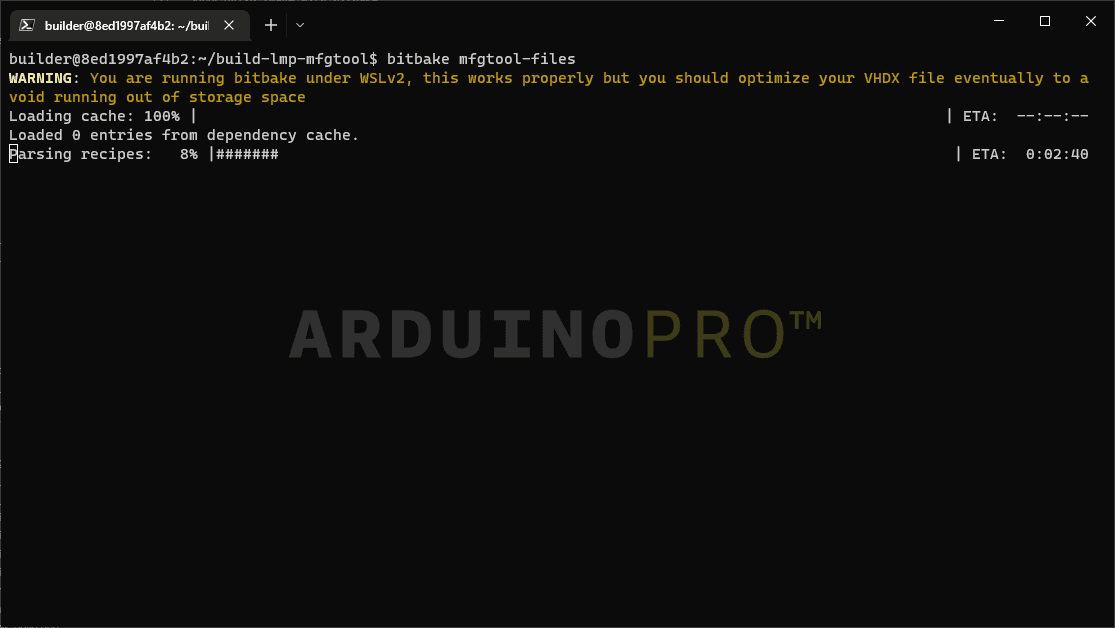

To compile and get the tools required, we will use following command:

1bitbake mfgtool-files

After completion:

This process may take ~2 hours depending on your build host

Save Your Image For Flashing

After a successful build, save the needed files to the host volume you mounted with

docker run

. Use the following commands to copy the files to your storage unit:

1cd ..
2mkdir ../../dockerVolume/flashing
3DEPLOY_FOLDER=../../dockerVolume/flashing
4
5cp -L build-lmp-mfgtool/deploy/images/portenta-x8/mfgtool-files-portenta-x8.tar.gz $DEPLOY_FOLDER
6cp -L build-lmp-xwayland/deploy/images/portenta-x8/imx-boot-portenta-x8 $DEPLOY_FOLDER
7cp -L build-lmp-xwayland/deploy/images/portenta-x8/u-boot-portenta-x8.itb $DEPLOY_FOLDER
8cp -L build-lmp-xwayland/deploy/images/portenta-x8/sit-portenta-x8.bin $DEPLOY_FOLDER
9cp -L build-lmp-xwayland/deploy/images/portenta-x8/lmp-partner-arduino-image-portenta-x8.wic $DEPLOY_FOLDER
10
11cd $DEPLOY_FOLDER
12tar xvf mfgtool-files-portenta-x8.tar.gz

You will be able to see the copied files in your OS file explorer.

Checking copied files with file explorer

Conclusion

In this tutorial, you have learned how to build a "builder" Docker image, get its required files, configure the build settings, build the image,a and to save the needed files for flashing. Now you have all the required files to flash the image you built onto the device.

Next Steps

Please follow the Flashing tutorial to flash your device with your custom image. You can use the files provided from this build to flash the Portenta X8 following the tutorial's steps.

Troubleshooting

If you are having
```
do_fetch
```
issues, try to check your system's and virtual machine's DNS settings.
