Getting Started with the Portenta Max Carrier

This tutorial give you an overview of the core features of the Portenta Max Carrier.


The Arduino Portenta Max Carrier provides developers with an unlimited range of applications, from robotics and medical devices to industrial or automotive applications; the Portenta Max Carrier possibilities are endless. The Portenta Max Carrier can be used as a single-board computer (SBC) or reference design. It couples the Arduino Portenta H7 board as a central high-performance unit, granting Edge AI and cutting-edge connectivity features into an industry-standard embedded Next Unit of Computing (eNUC) form factor ready.

In this tutorial, you will learn about the core features of the Portenta Max Carrier and how to get started with it.


  • Describe the core features of the Portenta Max Carrier.
  • Describe the power sources of the Portenta Max Carrier.
  • Describe the relevant peripherals, headers, and connectors of the Portenta Max Carrier.

Required Hardware and Software

  • Portenta H7
  • Portenta Max Carrier
  • USB-C® cable (either USB-A to USB-C® or USB-C® to USB-C®)
  • LoRa® antenna (868-915MHz) with SMA connector
  • LTE antenna (698-960/1710-2690MHz) with SMA connector
  • 3.7V 2600mAh 18650 Li-Ion battery
  • DC 4.5-20V power supply with barrel jack
  • Micro SD Card
  • Arduino IDE (online or offline)


1. Get to Know the Portenta Max Carrier

The Portenta Max Carrier was designed to augment the capabilities of the Portenta H7 board and provide easy access to its onboard peripherals. It is designed to enable research and develop industrial-grade advanced applications, from rapid prototyping to a deployable robust single-board computer.

The Portenta Max Carrier establishes a connection with Portenta H7 via High-Density connectors. This interface grants access to extensive modules and peripherals on-board the Portenta Max Carrier.

In this tutorial, we will describe the following features of the Portenta Max Carrier:

  • Power distribution
  • Connectors
  • On-board memory units
  • Wireless connectivity
  • Audio interfaces
  • On-board debugger

1.1. Power Distribution

The Portenta Max Carrier provides several peripherals and modules to cover a wide spectrum of applications. For these peripherals and modules to be powered up and run, the Portenta Max Carrier is built upon a sophisticated electric power distribution architecture.

To power the Portenta Max Carrier, you can use the barrel jack connector (X1) or a 3.7V 18650 Li-Ion battery connected to the Portenta Max Carrier's battery clips (J16 and J18). You can also power the Portenta Max Carrier directly from the USB-C® connector of the Portenta H7 board.

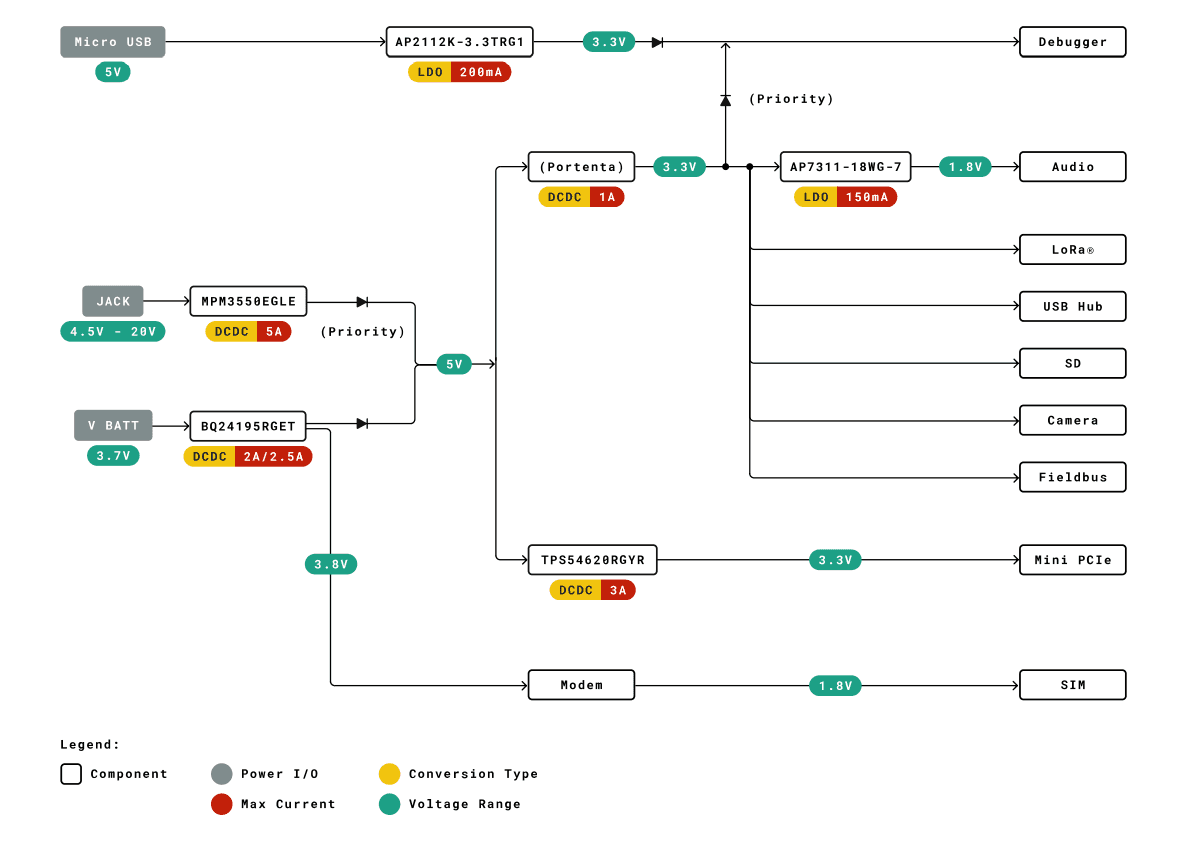

You can see the detailed Portenta Max Carrier's power tree in the image below:

Portenta Max Carrier Power Distribution
Portenta Max Carrier Power Distribution

The following image shows the Portenta Max Carrier's power inputs:

Portenta Max Carrier Power Inputs
Portenta Max Carrier Power Inputs

These power feed line options power up different peripherals and modules depending on the line configuration. The Portenta H7 powered by USB-C® cable attached to Portenta Max Carrier enables Audio, LoRa®, USB Hub, SD port, and Fieldbus. The Debugger is also enabled, and it is also possible to upload the code at the same time. This power line use case will be useful to develop and debug the code.

If the Arduino IDE throws an error failing to upload the code, please set the Portenta H7 in Bootloader Mode before uploading.

The external power supply goes through MPM3550EGLE, which is a DC/DC power module, to provide +5V to power up the peripherals and the modules. The module provides the power to BQ24195RGET, which is a battery charge and power path management, and it is used in Portenta Max Carrier for the Li-Ion battery source and to boost the voltage to +5V. The battery charger IC feeds the power to the Modem including all the peripherals and modules mentioned previously. The external power supply has the highest priority in the power line.

A Micro USB port is available for debugging on the Portenta Max Carrier. The debugging module is a separate segment, and it is powered by a Micro USB port using its power supply AP2112K, which is a low-dropout linear regulator. The debugger is available for use without the Portenta H7 paired with the Portenta Max Carrier.

1.2. Connectors

The Portenta Max Carrier is equipped with a wide spectrum of connectors for expandability. The following table will show briefly the connectors that are available on the carrier.

Connector (Ref.)Description
USB Hub (U3)USB2514Bi/M2 4-port USB 2.0 Hub IC
LoRa® Header (CN2)Debug Header
Debug Header (CN3)LoRa® Debug Header
High Density Connectors (J1,J2)DF40HC(3.5)-80DS-0.4V(51) High Density Connectors
Modem SMA Connector (J3)Right-Angle SMA Connector for Modem
LoRa® SMA Connector (J9)Right-Angle SMA Connector for LoRa®
FPC Connector (J4)2-1734248-0 FPC Connector
JTAG Header (CN1)FTSH-105-01-F-DV 10-pin JTAG Header
USB DBG0 (J10)ZX62-AB-5PA(31) Micro USB Debugger Connector with VBUS
USB DBG1 (J19)ZX62-AB-5PA(31) Micro USB Debugger Connector without VBUS
Grove Connector for Audio (J20)110990030 Grove Connector for a Speaker
Header Connector (J5)FW-20-05-G-D-254-150 Signal Break
4P4C CAN Connector (J7)J6 615006138421 RS-232/RS-485 Connector J7 6
6P6C Serial Connector (J6)615006138421 RS-232/RS-485 Connector
PCIe Connector (J8)1759546-1 Mini PCIe Connector
Micro SD Connector (J11)114-00841-68 Micro SD Connector
Ethernet Connector (J17)TRJK7003A97NL Gigabit Ethernet Connector

PCIe connector is available on-board. However, only USB and I2C is available for use at the moment.

It is worth noting that a 4P4C connector establishes the connection to the CAN Transceiver based on a TJA1049T/3J IC.

The Serial Transceiver based on SP335 IC, which is a multi-protocol transceiver with support for RS-232, RS-485, and RS-422. It establishes a connection via a 6P6C connector, and its default configurations are as follows:

  • Full Duplex
  • 232 Protocol
  • No Data Rate Limit
  • Enabled

1.3. Onboard Memory Units

The Portenta Max Carrier equips two different memory units onboard: Flash Memory and Mini SD Card slot.

Portenta Max Carrier Storage Option
Portenta Max Carrier Storage Option

On-Board Flash Memory

  • The Flash memory on-board the Portenta Max Carrier has 2 MB of storage via QSPI (Quad Serial Peripheral Interface).

For more information on how to use the Flash Memory storage, please follow this guide to get the most out of the Flash Memory.

Mini SD Card slot

  • The Mini SD card interface grants the possibility to extend the storage size. It can be used to process a hefty amount of log data, which can be from sensors or programmed onboard computer registry.

To learn how to use the Mini SD card slot to expand the storage size, please follow this guide.

If it requires to reduce library size and uses FAT16/FAT32 formats, please look into this library, created and maintained by Bill Greiman.

1.4. Wireless Connectivity

The Portenta Max Carrier has on-board Murata CMWX1ZZABZ-078 LoRaWAN® Module and SARA-R412M-02B Cell Modem shown in the following image below:

Portenta Max Carrier Connectivity Module
Portenta Max Carrier Connectivity Module

LoRaWAN® Module - Murata CMWX1ZZABZ-078

One of the notable features of Portenta Max Carrier is the Murata CMWX1ZZABZ-078 that enables LoRaWAN® connectivity. LoRaWAN® is a Low Power Wide Area Network (LPWAN) designed to connect low-power devices to the Internet. It was developed to meet and fulfill Internet of Things (IoT) devices' requirements, such as low-power consumption and low data throughput.

Depending on the region, it will require to use an appropriate antenna for the respective frequencies. The common frequencies are 915 MHz for North America and Australia, and 863 MHz for European region. Frequencies are on a range, so for example, Australian region is possible to use a 928 MHz compatible antenna and configuration.

For more in-depth information about LoRa® and LoRaWAN®, please read The Arduino Guide to LoRa® and LoRaWAN®.

For the LoRa® Connection tutorial with in-depth details on how to power up the module and establish a connection to The Things Network (TTN), please go here for more information.

Cell Modem - SARA-R412M-02B

The Portenta Max Carrier carries a cellular modem SARA-R412M-02B to carry out tasks requiring general network connectivity. This cellular modem is capable of establishing 2G / Cat-M1 / NB-IoT connections globally. It is powered by a bidirectional logic level shifter SN74LVC1T45 and an internal regulator, implemented for the use of SIM card and I/O.

The cellular modem requires SIM card integration, which can be fulfilled by introducing a SIM card in the available microSIM slot (SIM1). The modem has a dedicated SMA connector (J3) for the antenna.

Please DO NOT USE the cellular modem without the external antenna attached to the SMA connector. It might damage the Portenta Max Carrier if used without.

To begin using the modem, it will require some packages to be installed beforehand. Given the network technology, Cat-M1 and NB-IoT, it will require the use of the

library. Please also make sure to have the
Arduino Mbed OS Portenta Core
up to date from the board manager.

We will use the

header file for the PIN and APN configuration of the SIM card that will be inserted into the microSIM slot onboard Portenta Max Carrier.

If you want to learn how to run a sketch with this library or how to switch between Cat M1 and NB IoT, please take a look at our Portenta Max Carrier and Portenta H7 Cat M1/NB IoT tutorial

The antenna connectors for both LoRaWAN® and cellular modem with the microSIM slot are indicated in the following image:

Portenta Max Carrier Antenna Connectors and microSIM Slot
Portenta Max Carrier Antenna Connectors and microSIM Slot

Ethernet Connection

The Portenta Max Carrier has a physical Ethernet interface on-board, which is directly connected via High-Density Connectors of the Portenta board. The connector provides network activity status and speed indication via an LED indicator.

The 10/100 Ethernet is supported and the Gigabit connection is reserved for future use at the moment. The physical interface is indicated visually with the previous image showing antenna connectors and a microSIM slot.

1.5. Audio Interfaces

The Portenta Max Carrier features a stereo CODEC, the CS42L52 from Cirrus Logic®. The CS42L52 is a 24-bit, low-power stereo CODEC that can provide up to 1W per channel of Class D stereo/mono amplification to external speakers (8-ohm stereo speakers and 4-ohm mono speakers) or enough power to drive 44mW per channel into stereo headphones. There are four analog audio interfaces in the Portenta Max Carrier, as shown in the image below:

Portenta Max Carrier Audio Connectors
Portenta Max Carrier Audio Connectors

You can use this cable assembly and make your mono speaker. The CS42L52 stereo CODEC operates using an I2C interface, with the CODEC acting as a secondary device.

The Portenta H7 establishes an I2C interface using the

library included in the
package. The Portenta Max Carrier, while having paired the Portenta H7 via High-Density Connectors, can be expanded via Header Connector J5 for I2C interface interoperability. External modules requiring an I2C interface can be established via header Connector J5 with up to 2 available I2C bridges.

For more information on I2C protocol, please have a look at this guide to Arduino & the I2C Protocol (Two Wire).

1.6. Onboard Debugger

Part of the development process, debugging process is crucial, and it is a required step if we are aiming now to work with industrial-grade devices. The Portenta Max Carrier provides discrete debugging capability onboard. The feature can be accessed via micro USB to J-Link debugger.

It is driven by an STM32F405RGT6 controller and compatible with Segger® J-Link OB and Blackmagic probes. The module itself does not require Portenta H7 to be attached to the Portenta Max Carrier, meaning it does not require VBUS.

For more in-depth information about Debugging, please read Debugging Fundamentals.

The following image indicates the connectors that enable and allows to establish a connection to Portenta Max Carrier's onboard debugger.

Portenta Max Carrier On-Board Debugger Connections
Portenta Max Carrier On-Board Debugger Connections

2. Basic Setup of the Portenta Max Carrier

The Portenta Max Carrier only requires the Portenta H7 as the main unit to be able to use it. External components are required to enable the onboard module's capability and correct operation, such as cellular modem and LoRaWAN® connectivity. As the Portenta H7 is the central control unit of the Portenta Max Carrier, it will need to have the latest Arduino Mbed OS Portenta Core installed.

If it is not installed or requires an update, it is possible to navigate under Tools > Board > Board Manager and search for the

Arduino Mbed OS Portenta Core
and proceed with the update.

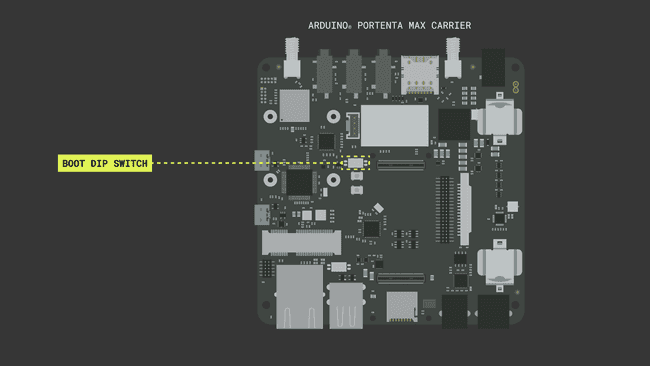

To take advantage of Portenta Max Carrier's Power Architecture, an important physical configuration requires to be verified. A DIP Switch for Boot mode selection is present on the Portena Max Carrier board. It requires setting BOOT_SEL to select between 2 boot addresses, which will enable Portenta H7 and Max Carrier to run the firmware. BOOT parameter will switch the Portenta H7 state into Boot mode.

Every time it initiates at Boot mode, the Portenta H7 will fade the Green LED to indicate its state. It will help to understand the board is in Boot mode and not turned off due to an unavailable electric supply as it shut off. As the power lines are alive even if the board shows no indication of an operating instance.

Portenta Max Carrier Power DIP Switch
Portenta Max Carrier Power DIP Switch

3. The Circuit

The Portenta Max Carrier uses the Portenta H7 as the main central processing unit and that powers up the carrier's modules mentioned above. Both systems possess High-Density Connectors to establish communication interfaces in between. It is simple as attaching the Portenta H7 to Portenta Max Carrier's High-Density Connectors. The following connection scheme shows how exactly the device is paired with the correct orientation.

Portenta Max Carrier Hardware Setup
Portenta Max Carrier Hardware Setup

The rest of the connection population will depend on the development requirement. It is important that if the connectivity modules are to be utilized, respective antennas should be attached before powering up. Otherwise, the Portenta Max Carrier may suffer from severe electronic hardware damage. Such details are drawn on the table with the briefly mentioned content above in

1.4. Wireless Connectivity

4. Getting up to Pro with Development Environment

For all the information detailed above for it to be used, we will need to develop the code and flash it to the system. It is possible to use the following development environment designed by Arduino.

4.1. Using Arduino IDE 2

The Arduino IDE 2 allows the developers to design and upload the code to Portenta H7 offline. It will also help you with organizing packages needed to program the Portenta H7. It will require a USB-C® Type cable that will allow you to connect and program the Portenta H7. In here, you will be able to find the latest version of the Arduino IDE 2.

If you want to know how to set up the Arduino IDE 2 adequately, please look into Quick Guide to Arduino IDE 2.

4.2. Using Arduino Web Editor

All Arduino boards work Out-of-the-Box with the Arduino Web Editor, and the Portenta H7 with Portenta Max Carrier is no exception. The Arduino Web Editor requires an online connection with an Arduino account and a simple plugin for development. The features are always up-to-date and support every Arduino board. By following this link to Arduino® Web Editor, you will be able to access and begin developing the code.

If you want to know how to get started with Arduino Web Editor, please look into Getting started with the Web Editor.

4.3. Using Arduino IoT Cloud

The Arduino boards that are IoT enabled, can use the Arduino IoT Cloud to develop an automated system and a feedback system that gathers useful data for analysis purposes. By following this link to Arduino IoT Cloud, you will be able to access and begin developing the code.

If you want to know how to get started with Arduino IoT Cloud, please look into Getting Started With the Arduino IoT Cloud.

5. Portenta Max Carrier Quick Peripheral Table

The following peripheral table will help you guide through quickly the select available connectors on Portenta Max Carrier.

LoRa® Header (CN2)
1+3V3Power+3V3 Power Rail
2LoRa_SWDIODigitalLoRa® SWD Data Line
3, 5, 9GNDPowerGround
6 ~ 8NCNCNot Connected
4LoRa_SWCLKDigitalLoRa® SWD Clock Line
10LORA_RSTDigitalLoRa® module reset pin
Debug Header (CN3)
13V3_DBGPower+3V3 Power Rail
2DBG_SWDIODigitalSWD Data Line
3, 5, 9GNDPowerGround
4DBG_SWCLKDigitalSWD Clock Line
6 ~ 8NCNCNot Connected
10RSTDigitalReset Pin
JTAG Header (CN1)
13V3Power+3V3 Power Rail
2JTAG_SWDDigitalJTAG SWD Data Line
3, 5GNDPowerGround
4JTAG_SCKDigitalJTAG Clock Line
6JTAG_SWODigitalJTAG Trace Data Line
7NCNCNot Connected
8JTAG_TDIDigitalJTAG Test Data In Line
9JTAG_TRSTDigitalJTAG Test Reset Line
10JTAG_RSTDigitalJTAG Reset Line
Header Connector (J5)
13V3Power+3V3 Power Rail
2, 13, 14GNDPowerGround
3VREF_PAnalogPositive Analog Voltage Reference
4VREF_NAnalogNegative Analog Voltage Reference
5 ~ 12A0 ~ A7AnalogAnalog input 0 ~ 7
15SAI_CKDigitalSAI Clock Line
16CSDigitalSPI1 Clock Select
17SAI_FSDigitalSAI Frame Synchronization
18CKDigitalSPI1 Clock Line
19SAI_D0DigitalSAI Data Line 0
20MISODigitalSPI Main In Secondary Out
21SAI_D1DigitalSAI Data Line 1
22MOSIDigitalSPI1 Main Out Secondary In
23SPDIF_TXDigitalSPDIF Transmission
24TXDigitalSerial3 Transmission
25SPDIF_RXDigitalSPDIF Receive
26RXDigitalSerial3 Receive
27SDADigitalI2C1 Data Line
28RTSDigitalSerial3 Ready to Send
29SCLDigitalI2C1 Clock Line
30CTSDigitalSerial3 Clear to Send
313V8Power+3V8 Power Rail
32SDADigitalI2C2 Data Line
33PWM0DigitalPWM Output 0
34SCLDigitalI2C2 Clock Line
35PWM1DigitalPWM Output 1
365VPower+5V Power Rail
37PWM2DigitalPWM Output 2
38CAN1_TXDigitalCAN Transmission Line
39PWM3DigitalPWM Output 3
40CAN1_RXDigitalCAN Receive Line
4P4C CAN Connector (J7)
15VPower+5V (Fused)
2CANLDiff.CAN Differential Signal Low
3CANHDiff.CAN Differential Signal High
6P6C Serial Conn. (J6)
2ZDigitalSP335 Out 1
3YDigitalSP335 Out 2
4ADigitalSP335 In 2
5BDigitalSP335 In 1
PCIe Connector (J8)
1, 3, 5, 6, 8, 10, 12, 14, 16, 17, 19, 20, 24, 28, 37, 42 ~ 49, 51NCNCNot Connected
2, 39, 41, 523V3_PCIEPower+3V3 Power Rail
3, 9, 15, 18, 21, 26, 27, 29, 34, 35, 40, 50GNDPowerGround
7PCIE_CLKREQDigitalPCIE Clock Request Signal
11mPCIe_CK_NDiff.PCIe Clock Differential Negative
13mPCIe_CK_PDiff.PCIe Clock Differential Positive
22mPCIe_RSTDigitalPCIe Reset Signal
23mPCIe_RX_NDiff.PCIe Receive Differential Negative
25mPCIe_RX_NDiff.PCIe Receive Differential Positive
30SCLDigitalI2C Clock Line
31mPCIe_TX_NDiff.PCIe Transmission Differential Negative
32SDADigitalI2C Data Line
33mPCIe_TX_PDiff.PCIe Transmission Differential Positive
36USB_DNDiff.USB Data Differential Negative
38USB_DNDiff.USB Differential Positive

These are a quick reference to commonly used interfaces and if custom connectors are to be used, above quick peripheral table will assist you to verify the correct polarity of connector pins.


You now have a quickstart guide to the Portenta Max Carrier with its rich modules and peripherals to design and implement real-world solutions. The Portenta Max Carrier provides a wide spectrum of tools and ports to enable a scalable design solution. With this guide, you now also acquired brief knowledge about the Portenta Max Carrier and will be able to solidify the requirements and devise more clearly.

Next Steps

In-depth guides for each distinctive module onboard Portenta Max Carrier can be found under each section of the features listed previously in this guide.


One may encounter issues setting up and initializing for the first time the Portenta Max Carrier. The following troubleshooting will help you with the possible issues that might occur in the beginning.

  • When sketch upload fails, please check if the Portenta H7 attached to Portenta Max Carrier is in bootloader mode. Double-press the RESET button and the Green LED will be waving, indicating it has entered bootloader mode. Please retry uploading the sketch afterward.

  • Verify that the BOOT DIP switch of the Portenta Max Carrier has been configured to an address. Otherwise, the paired Portenta H7 will go into bootloader mode after power-on and it will not initialize the program.
