Portenta C33 User Manual

Overview

This user manual will provide a comprehensive overview of the Portenta C33 board, covering its major hardware and software elements. With this user manual, you will learn how to set up, configure and use all the main features of the board.

Hardware and Software Requirements

Hardware Requirements

• Portenta C33 (x1)
• USB-C® cable (x1)
• Wi-Fi® W.FL antenna (x1)

Software Requirements

• Arduino IDE 1.8.10+, Arduino IDE 2.0+, or Arduino Web Editor

Product Overview

The Portenta C33 is a powerful System-on-Module (SOM) designed for cost-effective Internet of Things (IoT) applications and devices. Based on the R7FA6M5BH2CBG microcontroller from Renesas®, it shares the same form factor as the Portenta H7 board. It is backward-compatible with the MKR and Portenta family shields and carriers through its MKR-styled and High-Density connectors. The Portenta C33 is ideal for a wide range of applications, from smart home devices to connected industrial sensors.

Board Architecture Overview

The Portenta C33 features a robust and efficient architecture that enables it for low-cost, battery-powered, IoT applications and devices.

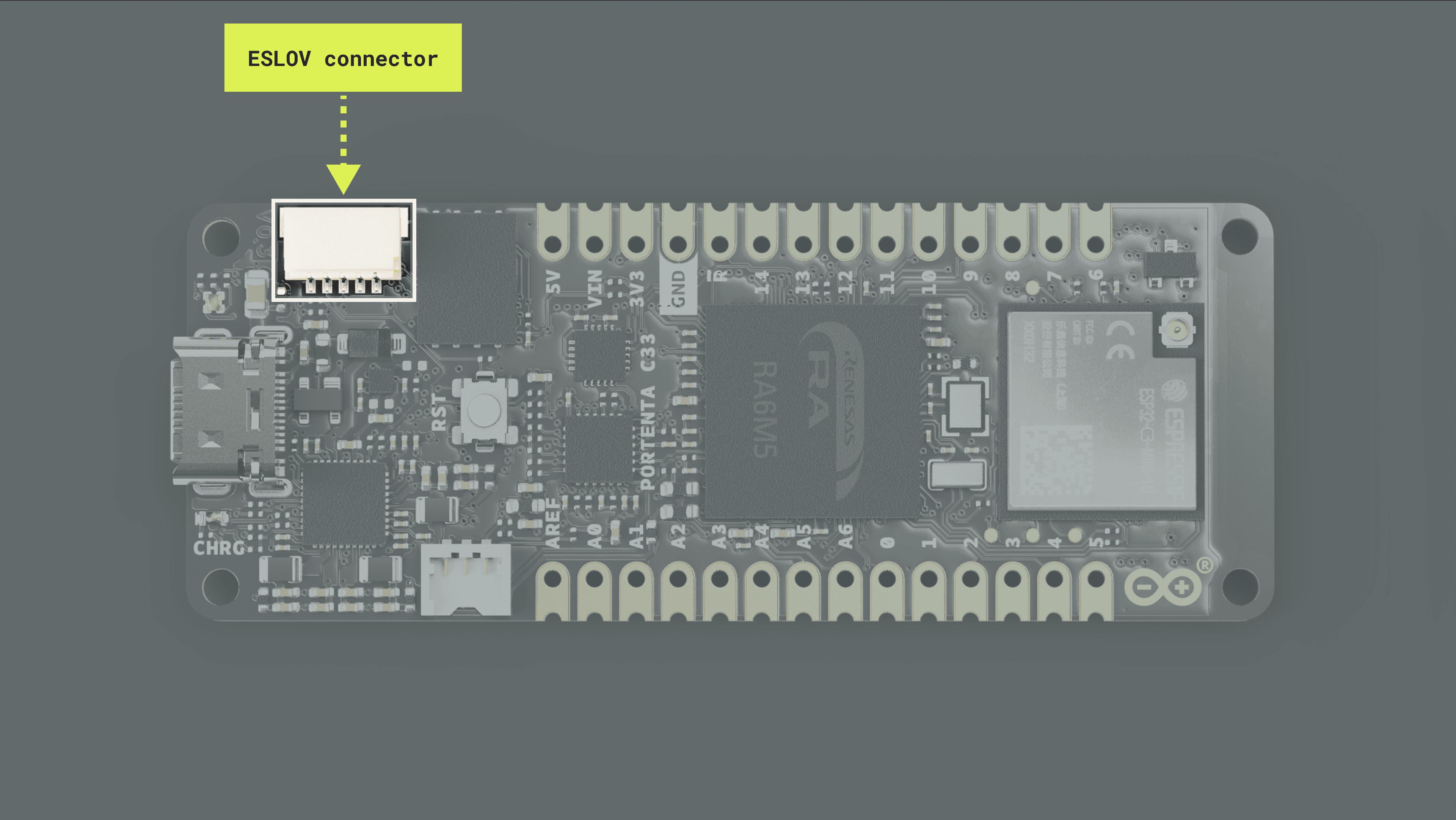

Here is an overview of the board's main components shown in the images above:

• Microcontroller: At the heart of the Portenta C33 is the R7FA6M5BH2CBG, a powerful and versatile SOM from Renesas®. The R7FA6M5BH2CBG is built around a 32-bit Arm® Cortex®-M33 processor running at 200 MHz, with 2 MB of Flash memory and 512 kB of SRAM.

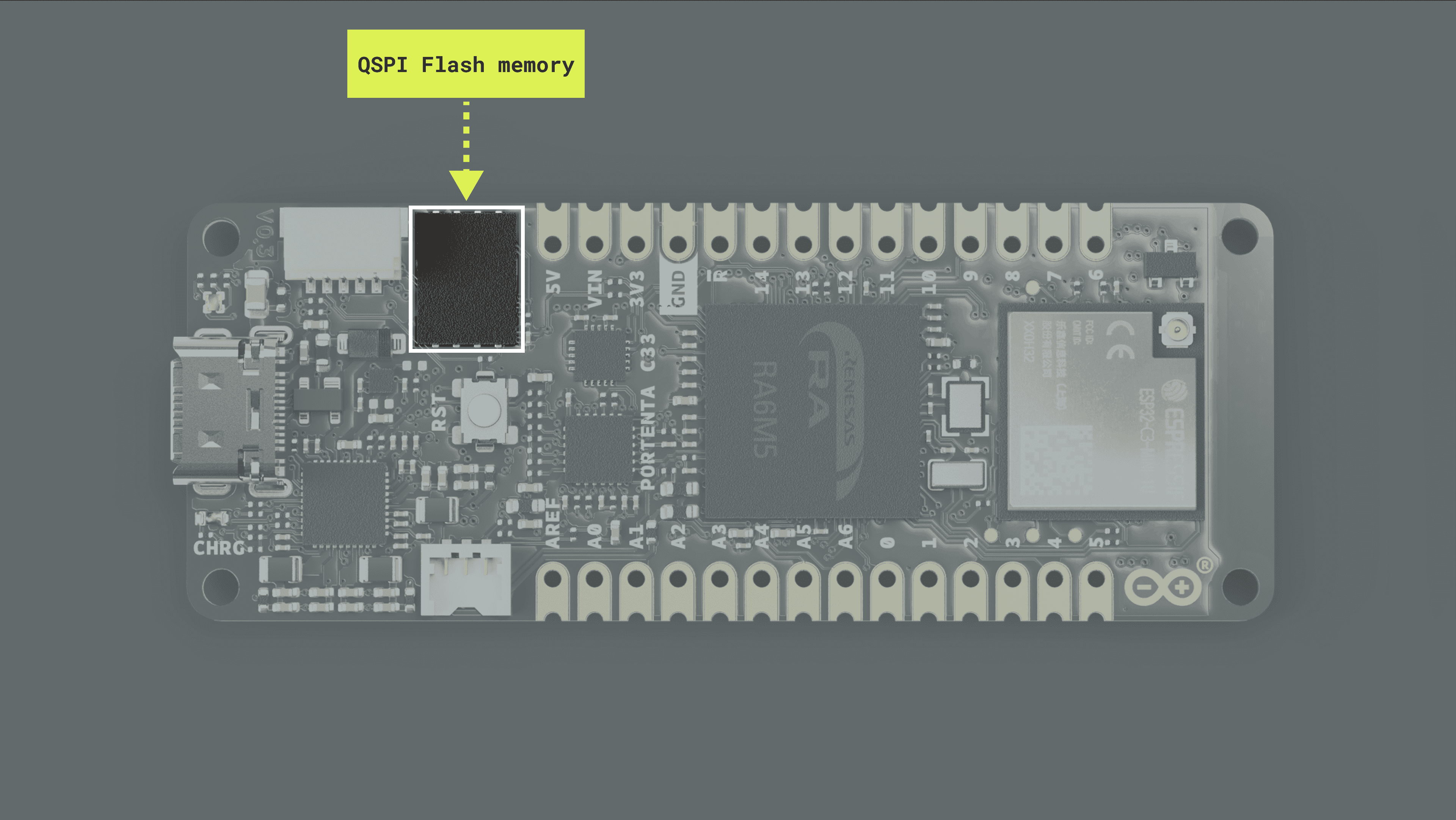

• External memory: The board features an onboard 16 MB QSPI Flash memory.

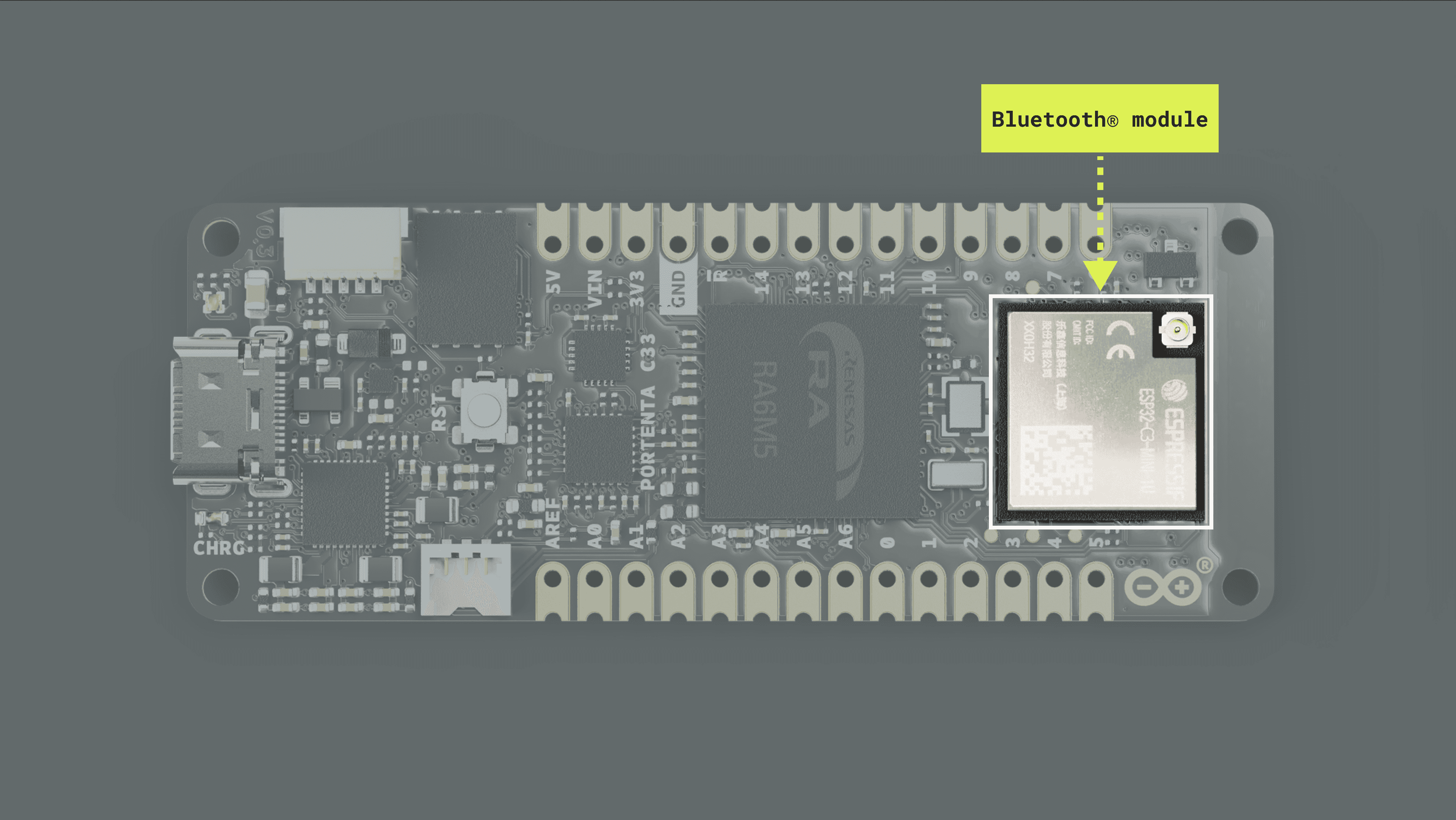

• Wireless connectivity: The board supports 2.4 GHz Wi-Fi® (802.11 b/g/n) and Bluetooth® 5.0, provided by the ESP32-C3-MINI-1U module developed by Espressif Systems®. This high-performance Wi-Fi® and Bluetooth® module allows the Portenta C33 to communicate wirelessly with other devices and systems. Note:

  ArduinoBLE

  library support is limited to Bluetooth® 4.0 only actually.
• Ethernet connectivity: The board features an onboard, high-performance 10/100 Mbps Ethernet transceiver accessible through its High-Density connectors.

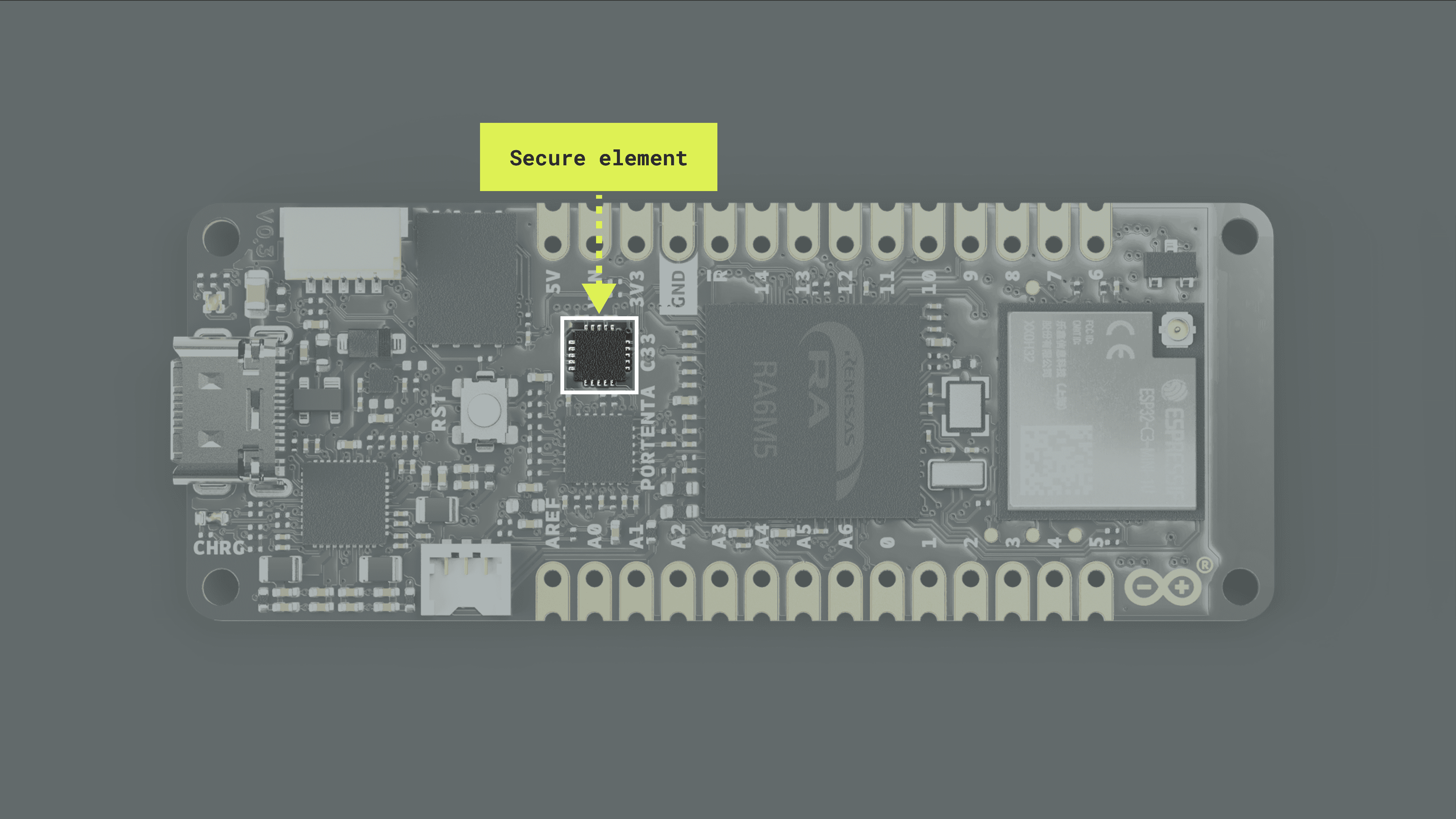

• Security: The board features an onboard ready-to-use secure element, the SE050C2 from NXP®, specifically designed for IoT devices and provides advanced security features.
• USB connectivity: The board features a USB-C port for power and data, which is also accessible through the board's High-Density connectors.
• Power management: The Portenta C33 is designed for low-power operation to meet the demands of always-connected IoT devices. It features a power management integrated circuit (PMIC), the PF1550 from NXP®, designed specifically for low-power, portable, and battery-powered IoT applications.
• Analog and digital peripherals: The board features analog peripherals such as two 8-channel 12-bit analog-to-digital converters (ADC) and two 12-bit digital-to-analog converters (DAC). It also features the following digital peripherals: GPIO (x7), I2C (x1), UART (x4), SPI (x2), PWM (x10), CAN (x2), SPDIF (x1), and SAI (x1).
• Debugging: The board features a JTAG/SWD debug port accessible through its High-Density connectors.
• Surface mount: The castellated pins of the board allow it to be positioned as a surface-mountable module.
• MKR-styled connectors: The MKR-styled connectors of the board make it compatible with all the MKR family boards. 2.54 mm pitch headers can be easily soldered to the board.

Board Core and Libraries

The Arduino Renesas Boards core contains the libraries and examples to work with the Portenta C33's peripherals and onboard components, such as its external QSPI Flash memory and Wi-Fi® and Bluetooth® module. To install the core for the Portenta C33 board, navigate to Tools > Board > Boards Manager or click the Boards Manager icon in the left tab of the IDE. In the Boards Manager tab, search for

renesas

Pinout

The complete pinout is available and downloadable as PDF from the link below:

• Portenta C33 pinout

Datasheet

The complete datasheet is available and downloadable as PDF from the link below:

• Portenta C33 datasheet

Schematics

The complete schematics are available and downloadable as PDF from the link below:

• Portenta C33 schematics

STEP Files

The complete STEP files are available and downloadable from the link below:

• Portenta C33 STEP files

First Use

Powering the Board

The Portenta C33 can be powered by the following:

• Using a USB-C® cable (not included).
• Using an external 4.1 to 6 V power supply connected to the

  VIN

  pin located in the MKR-styled connectors pins of the board (please refer to the board pinout section of the user manual).
• Using an external 5 V power supply connected to the

  5V

  pin located in the MKR-styled connectors of the board (please refer to the board pinout section of the user manual).
• Using a 3.7 V Lithium Polymer (Li-Po) battery connected to the board through the onboard battery connector; the manufacturer part number of the battery connector is BM03B-ACHSS-GAN-TF(LF)(SN), and its matching receptacle manufacturer part number is ACHR-03V-S. The recommended minimum battery capacity for the Portenta C33 is 800 mAh. A Li-Po battery with an integrated NTC thermistor is also recommended for thermal protection.
• Using an Arduino Pro carrier board, such as the Portenta Max Carrier and the Portenta Breakout.
• Using your custom boards to power the board through the board's castellated pins, MKR-styled, or High-Density connectors. Check out the board pinout and its schematic to know more about it.

Hello World Example

Let's program the Portenta C33 with the classic

hello world

Blink

There are two ways to program this example in the board:

• Navigate to File > Examples > 01.Basics > Blink.
• Copy and paste the code below into a new sketch in the Arduino IDE.

Copy
1void setup() {
2  // Initialize LED_BUILTIN as an output (this will turn on the LED)
3  pinMode(LED_BUILTIN, OUTPUT);
4}
5
6void loop() {
7  // Turn the built-in LED off
8  digitalWrite(LED_BUILTIN, HIGH);
9  delay(1000);
10  // Turn the built-in LED on
11  digitalWrite(LED_BUILTIN, LOW);
12  delay(1000);
13}

For the Portenta C33, the

LED_BUILTIN

The built-in RGB LED on the Portenta C33 needs to be pulled to ground to make them light up. This means that a voltage level of

LOW

HIGH

pinMode(LED_BUILTIN, OUTPUT)

To upload the code to the Portenta C33, click the Verify button to compile the sketch and check for errors; then click the Upload button to program the board with the sketch.

You should see now the green LED of the built-in RGB LED turn on for one second, then off for one second, repeatedly.

Pins

The Portenta C33 has been designed with two types of connectors: the MKR-styled connectors, intended for prototyping and debugging, and the High-Density connectors, intended to be used across Arduino Pro boards or custom boards. The Portenta C33 MKR-styled connectors pinout is shown in the image below:

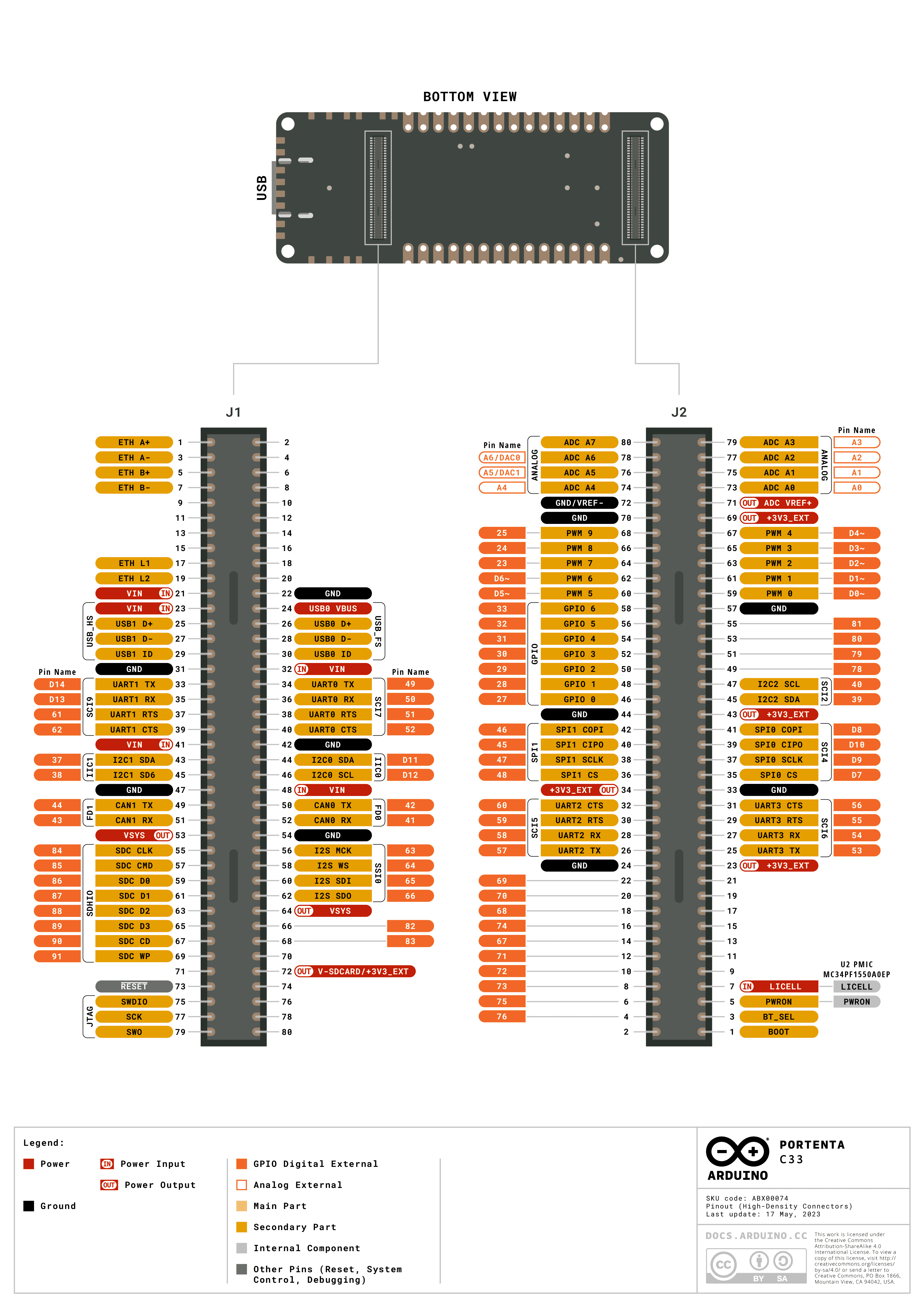

The Portenta C33 High-Density connectors pinout is shown in the image below:

Analog Pins

The Portenta C33 has eight analog input pins mapped as follows:

A0

P006

A1

P005

A2

P004

A3

P002

A4

P001

A5

DAC1

P015

A6

DAC0

P014

A7

P000

The eight analog input pins can be used through the built-in functions of the Arduino programming language (

analogRead()

Please refer to the board pinout section of the user manual to find the analog pins on the board:

• MKR-style connectors: pins

  A0

  ,

  A1

  ,

  A2

  ,

  A3

  ,

  A4

  ,

  A5

  , and

  A6

  are accessible thought these connectors.
• High-Density connectors: pins

  A0

  ,

  A1

  ,

  A2

  ,

  A3

  ,

  A4

  ,

  A5

  ,

  A6

  , and

  A7

  are accessible thought these connectors.

The example code shown below reads the voltage value from a potentiometer connected to

A0

Copy
1// Define the potentiometer pin and variable to store its value
2int potentiometerPin = A0;
3int potentiometerValue = 0;
4
5void setup() {
6  // Initialize Serial communication
7  Serial.begin(9600);
8}
9
10void loop() {
11  // Read the voltage value from the potentiometer
12  potentiometerValue = analogRead(potentiometerPin);
13
14  // Print the potentiometer voltage value to the Serial Monitor
15  Serial.print("- Potentiometer voltage value: ");
16  Serial.println(potentiometerValue);
17
18  // Wait for 1000 milliseconds
19  delay(1000);
20}

Digital Pins

The Portenta C33 has 91 digital input/output pins, mapped as described in the following tables. The first 14 digital pins are available through the MKR-styled connectors of the board:

0

P105

1

P106

2

P11

3

P303

4

P401

5

P210

6

P601

7

CS0

P402

8

MOSI0

P900

9

SCK0

P204

10

MISO0

P315

11

SDA0

P407

12

SCL0

P408

13

RX0

P110

14

TX0

P602

The following eight digital pins also have analog functionalities; they are available through the MKR-styled and High-Density connectors of the board:

15

A0

P006

16

A1

P005

17

A2

P004

18

A3

P002

19

A4

P001

20

A5

DAC1

P015

21

A6

DAC0

P014

22

A7

P000

The following four digital pins are PWM-capable; they are available through the High-Density connectors of the board:

23

P605

24

P608

25

P311

26

P600

The following seven pins are Interrupt Request (IRQ) capable; they are available through the High-Density connectors of the board:

27

P009

28

P409

29

P505

30

P706

31

P707

32

P708

33

P802

The following three pins are the digital pins used to control the built-in RGB LED of the board:

34

LEDR

P107

35

LEDG

P400

36

LEDB

P800

The following four digital pins are I2C-capable; they are available through the High-Density connectors of the board:

37

SDA1

P511

38

SCL1

P512

39

SDA2

P302

40

SCL2

P301

The following four digital pins are CAN-capable; they are available through the High-Density connectors of the board:

41

P202

42

P203

43

P610

44

P609

The following four digital pins are SPI-capable; they are available through the High-Density connectors of the board:

45

P100

46

P101

47

P102

48

P103

The following 14 digital pins are UART-capable; they are available through the High-Density connectors of the board:

49

P613

50

P614

51

P611

52

P404

53

P506

54

P304

55

P503

56

P502

57

P805

58

P513

59

P508

60

P500

61

P603

62

P604

The following four digital pins are SSI-capable; they are available through the High-Density connectors of the board:

63

P112

64

P113

65

P114

66

P115

The following 17 digital pins are generic GPIO pins; they are available through the High-Density connectors of the board:

67

P908

68

P403

69

P901

70

P612

71

P312

72

P313

73

P314

74

PA01

75

PA08

76

PA09

77

PA10

78

P507

79

PB00

80

P615

81

P003

82

P007

83

P008

The last eight digital pins are SD-card-capable; they are available through the High-Density connectors of the board:

84

P413

85

P412

86

P411

87

P410

88

P206

89

P205

90

P415

91

P414

The basic functionality of the Portenta C33's digital pins can be implemented through the built-in functions of the Arduino programming language. The configuration of a digital pin is done in the

setup()

pinMode()

Copy
1// Pin configured as an input
2pinMode(pin, INPUT);
3
4// Pin configured as an output
5pinMode(pin, OUTPUT);
6
7// Pin configured as an input, internal pull-up resistor enabled
8pinMode(pin, INPUT_PULLUP);

The state of a digital pin, configured as an input, can be read using the built-in function

digitalRead()

Copy
1// Reads pin state, stores value in state variable
2state = digitalRead(pin);

The state of a digital pin, configured as an output, can be changed using the built-in function

digitalWrite()

Copy
1// Set pin on
2digitalWrite(pin, HIGH);
3
4// Set pin off
5digitalWrite(pin, LOW);

The example code shown below uses digital pin

3

2

Copy
1// Define button and LED pin
2int buttonPin = 2;
3int ledPin = 3;
4
5// Variable to store the button state
6int buttonState = 0;
7
8void setup() {
9  // Configure button and LED pins
10  pinMode(buttonPin, INPUT_PULLUP);
11  pinMode(ledPin, OUTPUT);
12
13  // Initialize Serial communication
14  Serial.begin(9600);
15}
16
17void loop() {
18  // Read the state of the button
19  buttonState = digitalRead(buttonPin);
20
21  // If the button is pressed, turn on the LED and print its state to the Serial Monitor
22  if (buttonState == LOW) {
23    digitalWrite(ledPin, HIGH);
24    Serial.println("- Button is pressed. LED is on.");
25  } else {
26    // If the button is not pressed, turn off the LED and print to the Serial Monitor
27    digitalWrite(ledPin, LOW);
28    Serials.println("- Button is not pressed. LED is off.");
29  }
30
31  // Wait for 1000 milliseconds
32  delay(1000);
33}

PWM Pins

The Portenta C33 has 10 digital pins with PWM functionality, mapped as follows:

0

D0

P105

1

D1

P106

2

D2

P111

3

D3

P303

4

D4

P401

5

D5

P210

6

D6

P601

7

D7

P402

8

P900

9

P204

23

P605

24

P608

25

P311

26

P600

The 10 PWM pins can be used through the built-in (

analogWrite()

Please refer to the board pinout section of the user manual to find them on the board.

• MKR-styled connectors: pins

  0

  ,

  1

  ,

  2

  ,

  3

  ,

  4

  ,

  5

  , and

  6

  are accessible through these connectors.
• High-Density connectors: pins

  0

  ,

  1

  ,

  2

  ,

  3

  ,

  4

  ,

  5

  ,

  7

  ,

  8

  ,

  9

  ,

  23

  ,

  24

  ,

  25

  , and

  26

  are accessible through these connectors.

The example code shown below uses digital pin

9

Copy
1// Define the LED pin, brightness, and fade amount variables
2int brightness = 0;
3int fadeAmount = 5;
4
5void setup() {
6  // Configure the LED pin as an output
7  pinMode(LEDG, OUTPUT);
8}
9
10void loop() {
11  // Set the brightness of the LED
12  analogWrite(LEDG, brightness);
13
14  // Update the brightness value
15  brightness += fadeAmount;
16
17  // Reverse the fade direction when reaching the limits
18  if (brightness <= 0 || brightness >= 255) {
19    fadeAmount = -fadeAmount;
20  }
21
22  // Wait for 30 milliseconds
23  delay(30);
24}

You should now see the built-in RGB LED's green LED fade in and then fade out repeatedly.

Actuators

This user manual section covers the Portenta C33 built-in actuators, showing their main hardware and software characteristics.

RGB LED

The Portenta C33 features a built-in RGB LED that can be used as a visual feedback indicator for the user.

The built-in RGB LED can be accessed through the following macro definitions:

LEDR

LEDB

LEDG

LED_BUILTIN

The built-in RGB LED on the Portenta C33 must be pulled to ground to make it light up. This means that a voltage level of

LOW

HIGH

pinMode(LED_BUILTIN, OUTPUT)

The following example code blinks each of the LEDs at an interval of 500 ms:

Copy
1void setup() {
2  // Initialize LEDR, LEDG and LEDB as outputs
3  pinMode(LEDR, OUTPUT);
4  pinMode(LEDG, OUTPUT);
5  pinMode(LEDB, OUTPUT);
6}
7
8void loop() {
9  // Turn on the built-in red LED and turn off the rest
10  digitalWrite(LEDR, LOW);
11  digitalWrite(LEDG, HIGH);
12  digitalWrite(LEDB, HIGH);
13  delay(500);
14  // Turn on the built-in green LED and turn off the rest
15  digitalWrite(LEDR, HIGH);
16  digitalWrite(LEDG, LOW);
17  digitalWrite(LEDB, HIGH);
18  delay(500);
19  // Turn on the built-in blue LED and turn off the rest
20  digitalWrite(LEDR, HIGH);
21  digitalWrite(LEDG, HIGH);
22  digitalWrite(LEDB, LOW);
23  delay(500);
24}

You should now see the built-in RGB LED blinking each of its LEDs repeatedly.

Communication

This section of the user manual covers the different communication protocols that are supported by the Portenta C33 board, including the Serial Peripheral Interface (SPI), Inter-Integrated Circuit (I2C), Universal Asynchronous Receiver-Transmitter (UART), and Wi-Fi®; JTAG interface and communication via the onboard ESLOV connector is also explained in this section.

The Portenta C33 features dedicated pins for each communication protocol, accessible through the MKR-styled connectors and the High-Density connectors, making connecting and communicating with different components, peripherals, and sensors easy.

SPI

The Portenta C33 supports SPI communication via two dedicated ports named

SPI0

SPI1

8

MOSI

P900

10

MISO

P315

9

SCK

P204

7

CS

SS

P402

46

PIN_SPI1_MOSI

P101

45

PIN_SPI1_MISO

P100

47

PIN_SPI1_SCK

P102

48

PIN_SPI1_CS

P103

Please refer to the board pinout section of the user manual to find them on the board. Include the

SPI

Copy
1#include <SPI.h>

In the

setup()

CS

Copy
1void setup() {
2  // Set the chip select pin as output
3  pinMode(SS, OUTPUT);
4
5  // Pull the CS pin HIGH to unselect the device
6  digitalWrite(SS, HIGH);
7
8  // Initialize the SPI communication
9  SPI.begin();
10}

To transmit data to an SPI-compatible device, you can use the following commands:

Copy
1// Replace with the target device's address
2byte address = 0x00;
3
4// Replace with the value to send
5byte value = 0xFF;
6
7// Pull the CS pin LOW to select the device
8digitalWrite(SS, LOW);
9
10// Send the address
11SPI.transfer(address);
12
13// Send the value
14SPI.transfer(value);
15
16// Pull the CS pin HIGH to unselect the device
17digitalWrite(SS, HIGH);

I2C

The Portenta C33 supports I2C communication, which allows data transmission between the board and other I2C-compatible devices. There are three available I2C ports in the Portenta C33:

I2C0

I2C1

I2C2

11

SDA0

P407

12

SCL0

P408

37

SDA1

P511

38

SCL1

P512

39

SDA2

P302

40

SCL2

P301

To locate these pins on the board, please refer to the board pinout section of the user manual. The

SDA0

SCL0

System integrators can use the Portenta C33's High-Density connectors to expand the signals of the board to a custom-designed daughter board or carrier. Below is the I2C pins mapping on the board's High-Density connectors and shared resources:

I2C1

I2C0

I2C2

The status column indicates the current status of the pins. "Free" means the pins are not in use by another resource or peripheral of the board and are available for usage, while "Shared" means the pins are used by one or several resources or peripherals of the board.

To use I2C communication, include the

Wire

Wire

Copy
1#include <Wire.h>

In the

setup()

Copy
1// Initialize the I2C communication
2Wire.begin();

To transmit data to an I2C-compatible device, you can use the following commands:

Copy
1// Replace with the target device's I2C address
2byte deviceAddress = 0x1;
3
4// Replace with the appropriate instruction byte
5byte instruction = 0x00;
6
7// Replace with the value to send
8byte value = 0xFF;
9
10// Begin transmission to the target device
11Wire.beginTransmission(deviceAddress);
12
13// Send the instruction byte
14Wire.write(instruction);
15
16// Send the value
17Wire.write(value);
18
19// End transmission
20Wire.endTransmission();

To read data from an I2C-compatible device, you can use the

requestFrom()

read()

Copy
1// The target device's I2C address
2byte deviceAddress = 0x1;
3
4// The number of bytes to read
5int numBytes = 2;
6
7// Request data from the target device
8Wire.requestFrom(deviceAddress, numBytes);
9
10// Read while there is data available
11while (Wire.available()) {
12  byte data = Wire.read();
13}

UART

The Portenta C33 supports UART communication. The pins used in the Portenta C33 for the UART communication protocol are the following:

13

RX0

P110

14

TX0

P602

49

P613

50

P614

53

P506

54

P304

57

P805

58

P513

92

P603

93

P604

Please refer to the board pinout section of the user manual to find them on the board. The built-in (Serial) library functions can use the UART pins.

To begin with UART communication, you'll need to configure it first. In the

setup()

Copy
1// Start UART communication at 9600 baud
2Serial.begin(9600);

To read incoming data, you can use a

while()

Serial.available()

Serial.read()

Copy
1// Variable for storing incoming data
2String incoming = "";
3
4void loop() {
5  // Check for available data and read individual characters
6  while (Serial.available()) {
7    // Allow data buffering and read a single character
8    delay(2);
9    char c = Serial.read();
10
11    // Check if the character is a newline (line-ending)
12    if (c == '\n') {
13      // Process the received data
14      processData(incoming);
15
16      // Clear the incoming data string for the next message
17      incoming = "";
18    } else {
19      // Add the character to the incoming data string
20      incoming += c;
21    }
22  }
23}

To transmit data to another device via UART, you can use the

Serial.write()

Copy
1// Transmit the string "Hello world!
2Serial.write("Hello world!");

You can also use the

Serial.print()

Serial.println()

Copy
1// Transmit the string "Hello world!"
2Serial.print("Hello world!");
3
4// Transmit the string "Hello world!" followed by a newline character
5Serial.println("Hello world!");

Wi-Fi®

The Portenta C33 board features an onboard Wi-Fi® module, the ESP32-C3-MINI-1U module from Espressif Systems®. The ESP32-C3-MINI-1U is a low-power, highly integrated Wi-Fi® and Bluetooth® System-on-Chip (SoC) solution designed for many IoT applications.

Some of the key capabilities of the ESP32-C3-MINI-1U module are the following:

• Wi-Fi® and Bluetooth® connectivity: The module supports 2.4 GHz Wi-Fi® (802.11 b/g/n) and Bluetooth® 5.0 connectivity.

  ArduinoBLE

  library support is limited to Bluetooth® 4.0 at this time.
• CPU and memory: It contains a 32-bit RISC-V single-core processor with a clock speed of up to 160 MHz. The chip also has 400 KB of SRAM and 384 KB of ROM.
• Security features: It supports various security features, including secure boot, flash encryption, and cryptographic hardware acceleration.
• Low-power operation: It supports multiple power modes for different low-power applications, making it suitable for battery-powered devices.

The Arduino Renesas Core has a built-in library that lets you use the onboard Wi-Fi® module, the

WiFiC3

Always connect your board's Wi-Fi® module with its W.FL antenna (included with your board) to avoid damaging it.

The code below showcases how to connect to a Wi-Fi® network, check Wi-Fi® status, connect to a server, send HTTP requests, and receive and print HTTP responses, which are common tasks for an IoT device.

Copy
1/**
2  Web Client (Wi-Fi version)
3  Name: WiFiWebClient.ino
4  Purpose: This sketch connects to a website via Wi-Fi
5
6  @author Arduino Team
7  @version 2.0 31/05/12
8*/
9
10// Include the necessary libraries for Wi-Fi management and HTTP communication
11#include "WiFiC3.h"
12#include "WiFiClient.h"
13#include "IPAddress.h"
14#include "arduino_secrets.h"
15
16// Define the credentials of the Wi-Fi network to connect to
17char ssid[] = SECRET_SSID;  // Network SSID
18char pass[] = SECRET_PASS;  // Network password
19
20// Define a variable for storing the status of the Wi-Fi connection
21int status = WL_IDLE_STATUS;
22
23// Define the server to which we'll connect
24// This can be an IP address or a URL
25char server[] = "www.google.com";
26
27// Initialize the Wi-Fi client object
28// This will be used to interact with the server
29WiFiClient client;
30
31void setup() {
32  // Begin serial communication at a baud rate of 115200
33  Serial.begin(115200);
34
35  // Wait for the serial port to connect
36  // This is necessary for boards that have native USB
37  while (!Serial) {}
38
39  // Check for the onboard Wi-Fi module
40  // If the module isn't found, halt the program
41  if (WiFi.status() == WL_NO_MODULE) {
42    Serial.println("- Communication with Wi- Fi module failed!");
43    while (true);
44  }
45
46  // Check if the Wi-Fi module's firmware is up to date
47  String fv = WiFi.firmwareVersion();
48  if (fv < WIFI_FIRMWARE_LATEST_VERSION) {
49    Serial.println("- Please upgrade the firmware!");
50  }
51
52  // Attempt to connect to the defined Wi-Fi network
53  // Wait for the connection to be established
54  while (status != WL_CONNECTED) {
55    Serial.print("- Attempting to connect to SSID: ");
56    Serial.println(ssid);
57    status = WiFi.begin(ssid, pass);
58    delay(10000);
59  }
60
61  // Print the Wi-Fi connection status
62  printWifiStatus();
63
64  // Attempt to connect to the server at port 80 (the standard port for HTTP).
65  // If the connection is successful, print a message and send a HTTP GET request.
66  // If the connection failed, print a diagnostic message.
67  Serial.println("\n- Starting connection to server...");
68  if (client.connect(server, 80)) {
69    Serial.println("- Connected to server!");
70    client.println("GET /search?q=arduino HTTP/1.1");
71    client.println("Host: www.google.com");
72    client.println("Connection: close");
73    client.println();
74  } else {
75    Serial.println("- Connection failed!");
76  }
77}
78
79/**
80  Reads data from the client while there's data available
81
82  @param none
83  @return none
84*/
85void read_response() {
86  uint32_t received_data_num = 0;
87  while (client.available()) {
88
89    // Actual data reception
90    char c = client.read();
91
92    // Print data to serial port
93    Serial.print(c);
94
95    // Wrap data to 80 columns
96    received_data_num++;
97    if (received_data_num % 80 == 0) {
98      Serial.println();
99    }
100  }
101}
102
103void loop() {
104  // Read and print the server's response
105  read_response();
106
107  // If the server has disconnected, disconnect the client and halt the program
108  if (!client.connected()) {
109    Serial.println();
110    Serial.println("- Disconnecting from server...");
111    client.stop();
112    while (true);
113  }
114}
115
116/**
117  Prints data from the Wi-Fi connection status
118
119  @param none
120  @return none
121*/
122void printWifiStatus() {
123  // Print network SSID
124  Serial.print("- SSID: ");
125  Serial.println(WiFi.SSID());
126
127  // Print board's IP address
128  IPAddress ip = WiFi.localIP();
129  Serial.print("- IP Address: ");
130  Serial.println(ip);
131
132  // Print signal strength
133  long rssi = WiFi.RSSI();
134  Serial.print("- Signal strength (RSSI):");
135  Serial.print(rssi);
136  Serial.println(" dBm");
137}

First, the necessary libraries are included:

• The

  WiFiC3.h

  and

  WiFiClient.h

  are included at the start, those libraries contains the functionalities required to communicate via Wi-Fi®.
• The SSID and password for the Wi-Fi® network are defined.

Then, the server is defined (

www.google.com

Next, in the

setup()

• The serial port is initialized at a baud rate of 115200.
• The sketch checks for Wi-Fi® module availability and its firmware version, then attempts to connect to the Wi-Fi® network with the defined SSID and password. If the connection is successful, it prints the Wi-Fi® status and attempts to connect to the defined server. If the server connection is successful, it sends a GET request.
• The

  read_reponse()

  function reads data from the client while there's data available. It wraps the data to 80 columns and prints it to the IDE's Serial Monitor.

Finally, in the loop() function:

• The

  read_response()

  function is called to read any available data. If the server is disconnected, it disconnects the client and enters an infinite loop, halting the sketch.
• The

  printWifiStatus()

  function prints the connected network SSID, the IP address of the board, and the signal strength (RSSI) to the IDE's Serial Monitor.

Ethernet

The Portenta C33 board features an Ethernet physical layer (PHY) transceiver, the LAN8742AI from Microchip®. The LAN8742AI is a low-power 10BASE-T/100BASE-TX physical layer (PHY) transceiver. This device is responsible for transmitting and receiving data over an Ethernet connection. The transceiver complies with the IEEE 802.3 and 802.3u standards and supports communication with an Ethernet MAC through a standard RMII interface.

Some of the key capabilities of the LAN8742AI are the following:

• Speed and duplex mode: It can operate at 10 Mbps (10BASE-T) or 100 Mbps (100BASE-TX). It also features auto-negotiation, which means it can automatically determine the best speed and duplex mode for communication.
• HP Auto-MDIX: This feature allows you to use a straight-through or crossover Ethernet cable.
• Wake on LAN (WoL): The device can be programmed to detect certain types of packets and trigger an interrupt.
• Cable diagnostics: The transceiver can detect issues with the Ethernet cable and determine its location.

The Arduino Renesas Core has a built-in library that lets you use the onboard Ethernet PHY transceiver right out of the box, the

EthernetC33

Copy
1/**
2  Web Client (Ethernet version)
3  Name: WebClient.ino
4  Purpose: This sketch connects to a website via Ethernet
5
6  @author Arduino Team
7  @version 4.0 01/06/18
8*/
9
10// Include the Ethernet library
11#include <EthernetC33.h>
12
13// Define the server to which we'll connect
14// This can be an IP address or a URL
15char server[] = "www.google.com";
16
17// Set a static IP address to use if the DHCP fails to assign one automatically
18IPAddress ip(10, 130, 22, 84);
19
20// Initialize the Ethernet client object
21// This will be used to interact with the server
22EthernetClient client;
23
24void setup() {
25  // Begin serial communication at a baud rate of 115200
26  Serial.begin(115200);
27
28  // Wait for the serial port to connect
29  // This is necessary for boards that have native USB
30  while (!Serial);
31
32  // Attempt to start Ethernet connection via DHCP
33  // If DHCP failed, print a diagnostic message
34  if (Ethernet.begin() == 0) {
35    Serial.println("- Failed to configure Ethernet using DHCP!");
36
37    // Try to configure Ethernet with the predefined static IP address
38    Ethernet.begin(ip);
39  }
40
41  delay(2000);
42
43  // Attempt to connect to the server at port 80 (the standard port for HTTP).
44  // If the connection is successful, print a message and send a HTTP GET request.
45  // If the connection failed, print a diagnostic message.
46  Serial.println("- Connecting...");
47  if (client.connect(server, 80)) {
48    Serial.println("- Connected!");
49    client.println("GET /search?q=arduino HTTP/1.1");
50    client.println("Host: www.google.com");
51    client.println("Connection: close");
52    client.println();
53  } else {
54    Serial.println("- Connection failed!");
55  }
56}
57
58/**
59  Reads data from the client while there's data available
60
61  @param none
62  @return none
63*/
64void read_request() {
65  uint32_t received_data_num = 0;
66  while (client.available()) {
67
68    // Actual data reception
69    char c = client.read();
70
71    // Print data to serial port
72    Serial.print(c);
73
74    // Wrap data to 80 columns
75    received_data_num++;
76    if (received_data_num % 80 == 0) {
77      Serial.println();
78    }
79  }
80}
81
82void loop() {
83  // Read data from the client
84  read_request();
85
86  // If there's data available from the server, read it and print it to the Serial Monitor
87  while (client.available()) {
88    char c = client.read();
89    Serial.print(c);
90  }
91
92  // If the server has disconnected, disconnect the client and stop
93  if (!client.connected()) {
94    Serial.println();
95    Serial.println("- Disconnecting...");
96    client.stop();
97
98    // Halt the sketch by entering an infinite loop
99    while (true);
100  }
101}

First, the necessary libraries are included:

• The

  EthernetC33

  library which contains the functionality required to communicate via Ethernet is included in the beginning.

Then, the server is defined, which is

www.google.com

• The static IP address which will be used if the DHCP fails to assign an IP address is set.

• The Ethernet client is initialized with the server's IP address and port.

Next, in the

setup()

• The serial port is initialized at a baud rate of 115200.
• An Ethernet connection is attempted; if the DHCP configuration fails, the sketch tries to configure the connection using the static IP address defined before. The usage of a DNS server depends also on the success of the DHCP configuration.
• If the DNS server is used, it connects to the server using the server name; otherwise, it uses the server IP address. If the connection is successful, it sends a

  HTTP GET

  request to the server. If not, it outputs an error message to the IDE's Serial Monitor.
• The

  read_request()

  function reads data from the client while there's data available. It wraps the data to 80 columns and prints it to the IDE's Serial Monitor.

Finally, in the

loop()

• The

  read_request()

  function is called to read any available data. If the server is disconnected, it disconnects the client and enters an infinite loop, halting the sketch.

Bluetooth®

The Portenta C33 board features an onboard Bluetooth® module, the ESP32-C3-MINI-1U module from Espressif Systems®. The ESP32-C3-MINI-1U is a low-power, highly integrated Wi-Fi® and Bluetooth® System-on-Chip (SoC) solution designed for many IoT applications.

Always connect your board's Bluetooth® module with its W.FL antenna (included with your board) to avoid damaging it.

To enable Bluetooth® communication on the Portenta C33, you can use the

ArduinoBLE

ArduinoBLE

ArduinoBLE

Copy
1/**
2  Portenta_C33_Bluetooth
3  Name: Portenta_C33_Bluetooth.ino
4  Purpose: Read voltage level from an analog input of the Portenta C33
5  then maps the voltage reading to a percentage value ranging from 0 to 100.
6
7  Then exposes the voltage percentage level using a Custom BLuetooth Service.
8
9  @author Arduino Team
10  @version 1.1 13/07/23
11*/
12
13#include <ArduinoBLE.h>
14
15// Define the voltage service and its characteristic
16BLEService voltageService("1101");
17BLEUnsignedCharCharacteristic voltageLevelChar("2101", BLERead | BLENotify);
18
19
20const int analogPin = A0;
21
22/**
23  Read voltage level from an analog input of the Portenta C33,
24  then maps the voltage reading to a percentage value ranging from 0 to 100.
25
26  @param none
27  @return the voltage level percentage (int).
28*/
29
30int readVoltageLevel() {
31  int voltage = analogRead(analogPin);
32  int voltageLevel = map(voltage, 0, 1023, 0, 100);
33  return voltageLevel;
34}
35
36void setup() {
37  // Initialize LEDB as an output
38  pinMode(LEDB, OUTPUT);
39  digitalWrite(LEDB, HIGH);
40
41  Serial.begin(9600);
42
43  // Initialize the BLE module
44  if (!BLE.begin()) {
45    Serial.println("- Starting BLE failed!");
46    while (1)
47      ;
48  }
49
50  // Set the local name and advertised service for the BLE module
51  BLE.setLocalName("VoltageMonitor");
52  BLE.setAdvertisedService(voltageService);
53  voltageService.addCharacteristic(voltageLevelChar);
54  BLE.addService(voltageService);
55
56  // Start advertising the BLE service
57  BLE.advertise();
58  Serial.println("- Bluetooth device active, waiting for connections...");
59}
60
61void loop() {
62  // Check for incoming BLE connections
63  BLEDevice central = BLE.central();
64
65  // If a central device is connected
66  if (central) {
67    Serial.print("- Connected to device: ");
68    Serial.println(central.address());
69
70    // Set the LED color to solid blue when connected
71    digitalWrite(LEDB, LOW);
72
73    // While the central device is connected
74    while (central.connected()) {
75      // Read the voltage level and update the BLE characteristic with the level value
76      int voltageLevel = readVoltageLevel();
77
78      Serial.print("- Voltage level is: ");
79      Serial.println(voltageLevel);
80      voltageLevelChar.writeValue(voltageLevel);
81
82      delay(200);
83    }
84  }
85
86  // The LED blinks when bluetooth® is not connected to an external device
87  digitalWrite(LEDB, HIGH);
88  delay(200);
89  digitalWrite(LEDB, LOW);
90  delay(200);
91
92  Serial.print("- BLE not connected: ");
93  Serial.println(central.address());
94}

The example code shown above creates a Bluetooth® Low Energy service and characteristic for transmitting a voltage value read by one of the analog pins of the Portenta C33 to a central device.

• The code begins by importing all the necessary libraries and defining the Bluetooth® Low Energy service and characteristics.
• In the setup() function, the code initializes the Portenta C33 board and sets up the Bluetooth® Low Energy service and characteristics. Then, it begins advertising the defined Bluetooth® Low Energy service.
• A Bluetooth® Low Energy connection is constantly verified in the loop() function; when a central device connects to the Portenta C33, its built-in blue LED is turned into a solid blue. The code then enters into a loop that constantly reads the voltage level from an analog input and maps it to a percentage value between 0 and 100. The voltage level is printed to the Serial Monitor and transmitted to the central device over the defined Bluetooth® Low Energy characteristic.

JTAG

The Portenta C33 board features a JTAG/SWD debug port accessible through its High-Density connectors. The pins used for the JTAG/SWD debug port are the following:

TMS/SWD

P108

TCK/SCK

P300

TDO/SWO

P109

You can use a Portenta Breakout with your Portenta C33 board to easily access your board's JTAG/SWD debug port through the individual pins or a dedicated MIPI 20-pin JTAG connector with trace capability.

ESLOV Connector

The Portenta C33 board features an onboard ESLOV connector to extend the I2C communication bus. This connector simplifies connecting various sensors, actuators, and other modules to the Portenta C33 without soldering or wiring; Nicla family boards can also be connected to the Portenta C33 through this connector.

The ESLOV connector is a small 5-pin connector with a 1.00 mm pitch. The mechanical details of the connector can be found in the connector's datasheet.

The pin layout of the ESLOV connector is the following:

1. VCC
2. INT
3. SCL
4. SDA
5. GND

VCC

External Memory

The Portenta C33 board features an onboard 16 MB QSPI Flash memory, the MX25L12833F from Macronix®. Having an onboard QSPI Flash memory enhances the capabilities of the Portenta C33, enabling you to develop and run more complex and data-intensive applications.

Some key advantages of having an onboard QSPI Flash memory are the following:

• Storage capacity: The MX25L12833F QSPI Flash memory adds significant non-volatile storage to the board.
• Extended functionality: The additional memory space allows more complex applications to be developed and run on your Portenta C33. This application includes data logging, image processing, audio processing, and executing complex algorithms.
• Firmware updates: The MX25L12833F QSPI Flash memory can also store firmware or software updates for your Arduino board. This means you can update the firmware without requiring a complete reprogramming of the board.

The Arduino Renesas Core has built-in libraries and drivers that immediately let you use the onboard QSPI Flash memory. Let's walk through an example code demonstrating some of the onboard Flash memory capabilities; the main tasks performed in the sketch are initializing the Flash memory, writing to a file, and reading from a file.

Copy
1/**
2  QSPI Flash File System test
3  Name: QSPI_Flash_FileSystem_Test.ino
4  Purpose: This sketch test the onboard QSPI Flash memory
5  file system by writing and reading a file.
6
7  @author Arduino Team
8  @version 1.0 20/06/23
9*/
10
11// Include necessary libraries and drivers
12#include "QSPIFlashBlockDevice.h"
13#include "FATFileSystem.h"
14
15// Define constants for file system and test file name
16#define QSPI_FS_NAME "qspi"
17#define TEST_FILE "test.txt"
18
19// Instantiate flash block device and file system
20QSPIFlashBlockDevice block_device(PIN_QSPI_CLK, PIN_QSPI_SS, PIN_QSPI_D0, PIN_QSPI_D1, PIN_QSPI_D2, PIN_QSPI_D3);
21FATFileSystem fs(QSPI_FS_NAME);
22
23// Define full path to the test file
24std::string file_test_name = std::string("/") + std::string(QSPI_FS_NAME) + std::string("/") + std::string(TEST_FILE);
25
26void setup() {
27  // Initialize serial communication and wait a connection
28  Serial.begin(9600);
29  while(!Serial);
30
31  // Print test start message
32  Serial.println();
33  Serial.println("- SIMPLE QSPI FLASH TEST");
34  Serial.println();
35
36  // Try to mount the QSPI Flash file system
37  // If mounting fails, try to format the file system
38  int err =  fs.mount(&block_device);
39  if (err) {
40    Serial.println("- No filesystem found, formatting... ");
41    err = fs.reformat(&block_device);
42  }
43  if (err) {
44    // If formatting fails, print error and halt
45    Serial.println("- Error formatting QSPI Flash ");
46    while(1);
47  }
48
49  // Try to open a test file for writing
50  // If file opened successfully, write some text to the file
51  FILE* fp = fopen(file_test_name.c_str(), "w");
52  if(fp != NULL) {
53    Serial.println("- Opened file for writing!");
54    char text[] = "Hello from QSPI Flash!\n";
55    fwrite(text, sizeof(char), strlen(text), fp);
56    // Always close the file after writing to save changes
57    fclose(fp);
58  }
59  else {
60    // If file opening fails, print an error message
61    Serial.print("- Failed to open file for writing: ");
62    Serial.println(file_test_name.c_str());
63  }
64
65  // Try to open the test file for reading
66  // If file opened successfully, read and print its content
67  fp = fopen(file_test_name.c_str(), "r");
68  if(fp != NULL) {
69    Serial.println("- Opened file for reading!");
70    char ch;
71    while(fread(&ch, sizeof(char), 1, fp) == 1) {
72      Serial.print(ch);
73    }
74    // Always close the file after reading
75    fclose(fp);
76  }
77  else {
78    // If file opening fails, print an error message
79    Serial.print("Failed to open file for reading: ");
80    Serial.println(file_test_name.c_str());
81  }
82}
83
84void loop() {}
