Nicla Voice User Manual

Overview

This user manual will provide you with a comprehensive overview of the Arduino Nicla Voice board, covering its main hardware and software features. This user manual will also show you how to set up, configure, and use these features.

Hardware and Software Requirements

Hardware Requirements

• Nicla Voice (x1)
• Micro USB cable (x1)

Software Requirements

• Arduino IDE 1.8.10+, Arduino IDE 2.0+, or Arduino Web Editor
• To create custom Machine Learning models, the integrated Machine Learning Tools of the Arduino Cloud are needed. In case you do not have an Arduino Cloud account, you will need to create one first.

Product Overview

The Nicla Voice is an innovative and versatile development board designed by the Arduino team for sound-enabled projects and applications. This board has an onboard always-on speech recognition and sensor-fusion processor, advanced motion sensors, and wireless connectivity via Bluetooth® Low Energy. The Nicla Voice is an ideal solution for various applications, from ultra-low power predictive maintenance and gesture or voice recognition systems to contactless wireless applications.

Board Architecture Overview

The Nicla Voice features a robust and efficient architecture integrating various components to enable speech, sound, and motion projects and applications.

Here is an overview of the board's architecture's main components shown in the images above:

• Microcontroller: at the heart of the Nicla Voice is the nRF52832, a powerful and versatile System-on-Chip (SoC) from Nordic® Semiconductor. The nRF52832 is built around a 32-bit Arm® Cortex®-M4 processor running at 64 MHz.
• Speech and sensor-fusion processor: the board features the NDP120 Neural Decision Processor™, an ultra-low power always-on audio and sensor-fusion processor from Syntiant®, which enables several applications, including echo-cancellation, beamforming, noise suppression, speech enhancement, speaker identification, keyword spotting, acoustic event and scene classification, and multi-sensor fusion.
• Onboard advanced motion sensors: the board features the BMI270, a high-precision Inertial Measurement Unit (IMU) from Bosch® Sensortec, which combines a 3-axis accelerometer and a 3-axis gyroscope for precise motion tracking and orientation detection. The board also features the BMM150, a compact geomagnetic sensor from Bosch® Sensortec with a 3-axis magnetometer.
• Onboard high-performance microphone: the Nicla Voice is equipped with the IM69D130, a high-quality MEMS microphone by Infineon® Technologies. The IM69D130 offers excellent audio quality and low noise performance, ensuring accurate and distortion-free audio capturing.
• Onboard connector for external PDM microphone: an external PDM microphone can be connected to the board via an onboard connector.
• Wireless connectivity: the board supports Bluetooth® Low Energy connectivity, provided by the ANNA-B112 module developed by u-blox®. This compact, high-performance Bluetooth® Low Energy module allows the Nicla Voice to communicate wirelessly with other devices and systems.
• Power management: the Nicla Voice is designed for ultra-low power operation, with efficient power management features that ensure minimal energy consumption even when using always-on speech recognition and multiple sensors. The Nicla Voice features the BQ25120 from Texas Instruments®; a highly integrated battery charge management integrated circuit (IC) designed for wearables and Internet of Things (IoT) devices.

Board Core and Libraries

The Arduino Mbed OS Nicla Boards core contains the libraries and examples you need to work with the board's components, such as its IMU, magnetometer, and onboard microphone. To install the core for Nicla boards, navigate to Tools > Board > Boards Manager or click the Boards Manager icon in the left tab of the IDE. In the Boards Manager tab, search for

nicla

Arduino Mbed OS Nicla Boards

Pinout

The full pinout is available and downloadable as PDF from the link below:

• Nicla Voice pinout

Datasheet

The complete datasheet is available and downloadable as PDF from the link below:

• Nicla Voice datasheet

Schematics

The complete schematics are available and downloadable as PDF from the link below:

• Nicla Voice schematics

STEP Files

The complete STEP files are available and downloadable from the link below:

• Nicla Voice STEP files

First Use

Powering the Board

The Nicla voice can be powered by:

• Using a Micro USB cable (not included).
• Using an external 5V power supply connected to

  VIN_BQ25120

  pin (please refer to the board pinout section of the user manual).
• Using a 3.7V Lithium Polymer (Li-Po) battery connected to the board through the onboard battery connector; the manufacturer part number of the battery connector is BM03B-ACHSS and its matching receptacle manufacturer part number is ACHR-03V-S. The recommended minimum battery capacity for the Nicla Voice is 200 mAh. A Li-Po battery with an integrated NTC thermistor is also recommended for thermal protection.

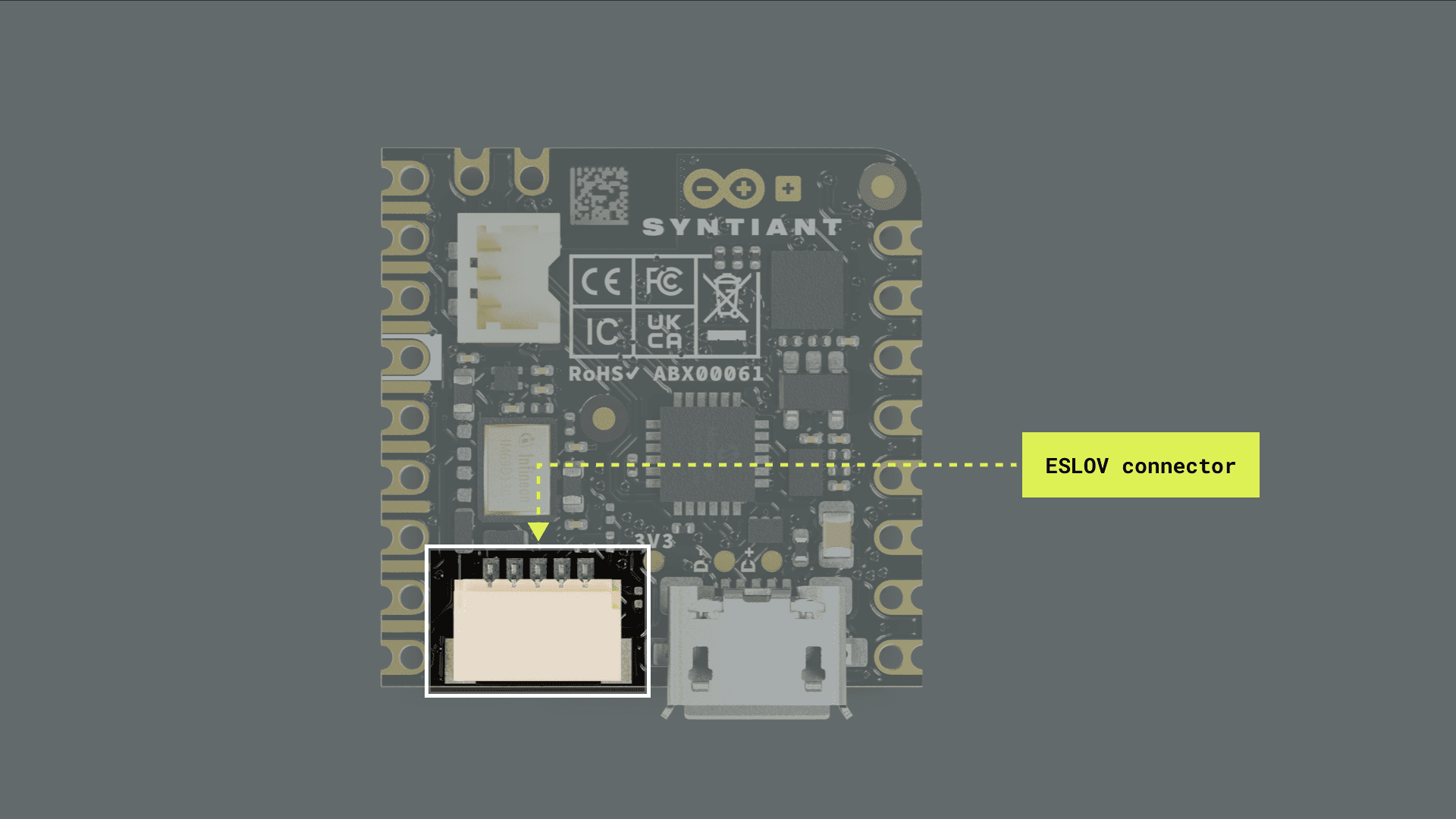

• Using the onboard ESLOV connector, which has a dedicated 5V power line.

A 3.7V Li-Po battery can be also connected through the board's pins:

1 (NTC)

2 (VBAT)

6 (GND)

Onboard Battery Charger

The onboard battery charger of your board is, by default, disabled. To enable it, you can use the

enableCharging()

Copy
1// Enable the onboard battery charger
2// The function parameter defines the charging current in mA (between 5 mA and 300 mA)
3nicla::enableCharging(100);

The desired charging current can be set to a value between 5 mA and 300 mA; the default value is 20 mA.

A safe default charging current value that works for most common LiPo batteries is 0.5C, which means charging at a rate equal to half the battery's capacity. For example, a 200 mAh battery could be safely charged at 100 mA (0.1 A).

To disable the onboard battery charger, you can use the

disableCharging()

Copy
1// Disable the onboard battery charger
2nicla::disableCharging();

NDP120 Processor Firmware Update

It is recommended to update the NDP120 processor firmware and the built-in speech recognition model to the latest release. Follow these three steps to complete the update process:

1. Upload the

   Syntiant_upload_fw_ymodem

   sketch. This sketch can be found in the board's built-in examples by navigating to File -> Examples -> NDP -> Syntiant_upload_fw_ymodem. Remember to select the board in the Arduino IDE first before navigating to the examples.

2. After uploading the sketch, format your board's external Flash memory before uploading the updated NDP120 processor firmwares files. You can do this by navigating to the Arduino IDE Serial Monitor and typing

   F

   and then Enter.

3. Extract this .zip file, which contains the compiled uploaders for various operating systems, and the updated NDP120 processor firmware and speech recognition model, in a known location on your computer.

4. Open a new terminal in the location where the .zip file was extracted and execute the following command:

   Copy
   1syntiant-uploader send -m "Y" -w "Y" -p $portName $filename

   Replace

   portName

   and

   filename

   with the relevant information. Three different files must be uploaded to the board by executing the following three commands, for example in Windows the commands are the following:

   Copy
   1./syntiant-uploader send -m "Y" -w "Y" -p COM6 mcu_fw_120_v91.synpkg

   Copy
   1./syntiant-uploader send -m "Y" -w "Y" -p COM6 dsp_firmware_v91.synpkg

   Copy
   1./syntiant-uploader send -m "Y" -w "Y" -p COM6 model_name.synpkg

   Ensure all executed commands return a

   filename sent successful

   message in the console, as shown in the image below.



After uploading the three files, your board's firmware is updated to the latest release and ready to be used.

External Memory Format

Your board NDP120 processor files (firmware and models) are stored in your board's external Flash memory. It is recommended to format your Nicla Voice external Flash memory every time you are going to update the processor firmware or when you are going to update/add models to the external Flash memory.

Follow these steps to perform the external memory format process:

1. Upload the

   Syntiant_upload_fw_ymodem

   sketch. This sketch can be found in the board's built-in examples by navigating to File -> Examples -> NDP -> Syntiant_upload_fw_ymodem. Remember to select the board in the Arduino IDE first before navigating to the examples.
2. After uploading the sketch, navigate to the IDE's Serial Monitor, type

   F

   , and press

   Enter

   . Your board's external memory should be formatted now, you can confirm this by typing an

   L

   and pressing

   Enter

   .

After completing this process, you can upload NDP processor's firmware and model files to your board's external memory without issues as explained before.

Built-in Speech Recognition Example

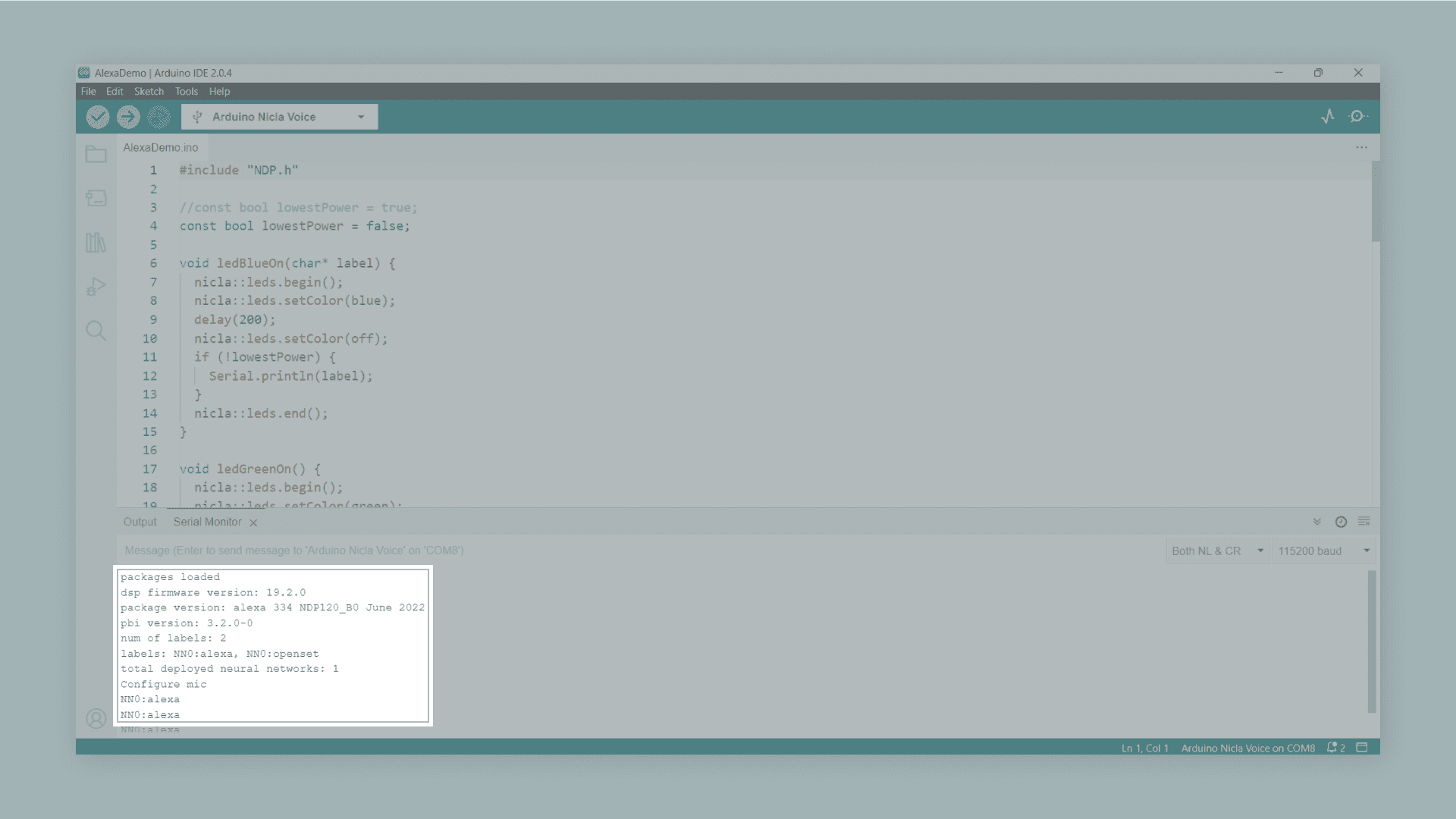

The speech recognition example can be found in the board's built-in examples by navigating to File -> Examples -> NDP -> AlexaDemo. After successfully updating the NDP120 processor firmware and the speech recognition model to the latest release, we can upload the speech recognition example to the Nicla Voice. To test the example, say "Alexa"; this should make the onboard LED of the Nicla Voice blink blue if the keyword "Alexa" is recognized. If there is no response from the board, try speaking from a closer proximity or louder. You should also see in the Serial Monitor if the word "Alexa" was detected, as shown in the image below:

Pins

The Nicla Voice pinout is shown in the image below:

Analog Pins

The Nicla Voice has two analog input pins, mapped as follows:

ADC1

P0_02

A0

ADC2

P0_30

A1

Both pins can be used through the built-in functions of the Arduino programming language. The example code shown below reads the voltage value from a potentiometer connected to

A0

Copy
1// Define the potentiometer pin and variable to store its value
2int potentiometerPin = A0;
3int potentiometerValue = 0;
4
5void setup() {
6  // Initialize Serial communication
7  Serial1.begin(9600);
8}
9
10void loop() {
11  // Read the voltage value from the potentiometer
12  potentiometerValue = analogRead(potentiometerPin);
13
14  // Print the potentiometer voltage value to the Serial Monitor
15  Serial1.print("- Potentiometer voltage value: ");
16  Serial1.println(potentiometerValue);
17
18  // Wait for 1000 milliseconds
19  delay(1000);
20}

Digital Pins

The Nicla Voice has twelve digital pins, mapped as follows:

P0_10

0

P0_09

1

P0_20

2

P0_23

3

P0_22

4

P0_24

5

P0_29

6

P0_27

7

P0_28

8

P0_11

9

P0_02

A0

P0_30

A1

Notice that analog pins

A0

A1

P0_02

P0_30

The digital pins of the Nicla Voice can be used as inputs or outputs through the built-in functions of the Arduino programming language. The configuration of a digital pin is done in the

setup()

pinMode()

Copy
1// Pin configured as an input
2pinMode(pin, INPUT);
3
4// Pin configured as an output
5pinMode(pin, OUTPUT);
6
7// Pin configured as an input, internal pull-up resistor enabled
8pinMode(pin, INPUT_PULLUP);

The state of a digital pin, configured as an input, can be read using the built-in function

digitalRead()

Copy
1// Reads pin state, stores value in state variable
2state = digitalRead(pin);

The state of a digital pin, configured as an output, can be changed using the built-in function

digitalWrite()

Copy
1// Set pin on
2digitalWrite(pin, HIGH);
3
4// Set pin off
5digitalWrite(pin, LOW);

The example code shown below uses digital pin

3

2

Copy
1// Define button and LED pin
2int buttonPin = 2;
3int ledPin = 3;
4
5// Variable to store the button state
6int buttonState = 0;
7
8void setup() {
9  // Configure button and LED pins
10  pinMode(buttonPin, INPUT_PULLUP);
11  pinMode(ledPin, OUTPUT);
12
13  // Initialize Serial communication
14  Serial1.begin(9600);
15}
16
17void loop() {
18  // Read the state of the button
19  buttonState = digitalRead(buttonPin);
20
21  // If the button is pressed, turn on the LED and print its state to the Serial Monitor
22  if (buttonState == LOW) {
23    digitalWrite(ledPin, HIGH);
24    Serial1.println("- Button is pressed. LED is on.");
25  } else {
26    // If the button is not pressed, turn off the LED and print to the Serial Monitor
27    digitalWrite(ledPin, LOW);
28    Serial1.println("- Button is not pressed. LED is off.");
29  }
30
31  // Wait for 1000 milliseconds
32  delay(1000);
33}

PWM Pins

Most digital and analog pins of the Nicla Voice can be used as PWM (Pulse Width Modulation) pins. This functionality of the Nicla Voice pins can be used with the built-in function

analogWrite()

Copy
1analogWrite(pin, value);

The example code shown below uses digital pin

9

Copy
1// Define the LED pin, brightness, and fade amount variables
2int ledPin = 9;
3int brightness = 0;
4int fadeAmount = 5;
5
6void setup() {
7  // Configure the LED pin as an output
8  pinMode(ledPin, OUTPUT);
9}
10
11void loop() {
12  // Set the brightness of the LED
13  analogWrite(ledPin, brightness);
14
15  // Update the brightness value
16  brightness += fadeAmount;
17
18  // Reverse the fade direction when reaching the limits
19  if (brightness <= 0 || brightness >= 255) {
20    fadeAmount = -fadeAmount;
21  }
22
23  // Wait for 30 milliseconds
24  delay(30);
25}

Onboard Sensors

The Nicla Voice boards come with various onboard sensors that allow you to capture and process environmental and motion data via a high-performance microphone, a 6-axis IMU, and a 3-axis magnetometer. The onboard sensors can be used for developing various applications, such as voice recognition, gesture control, and environmental monitoring.

Microphone

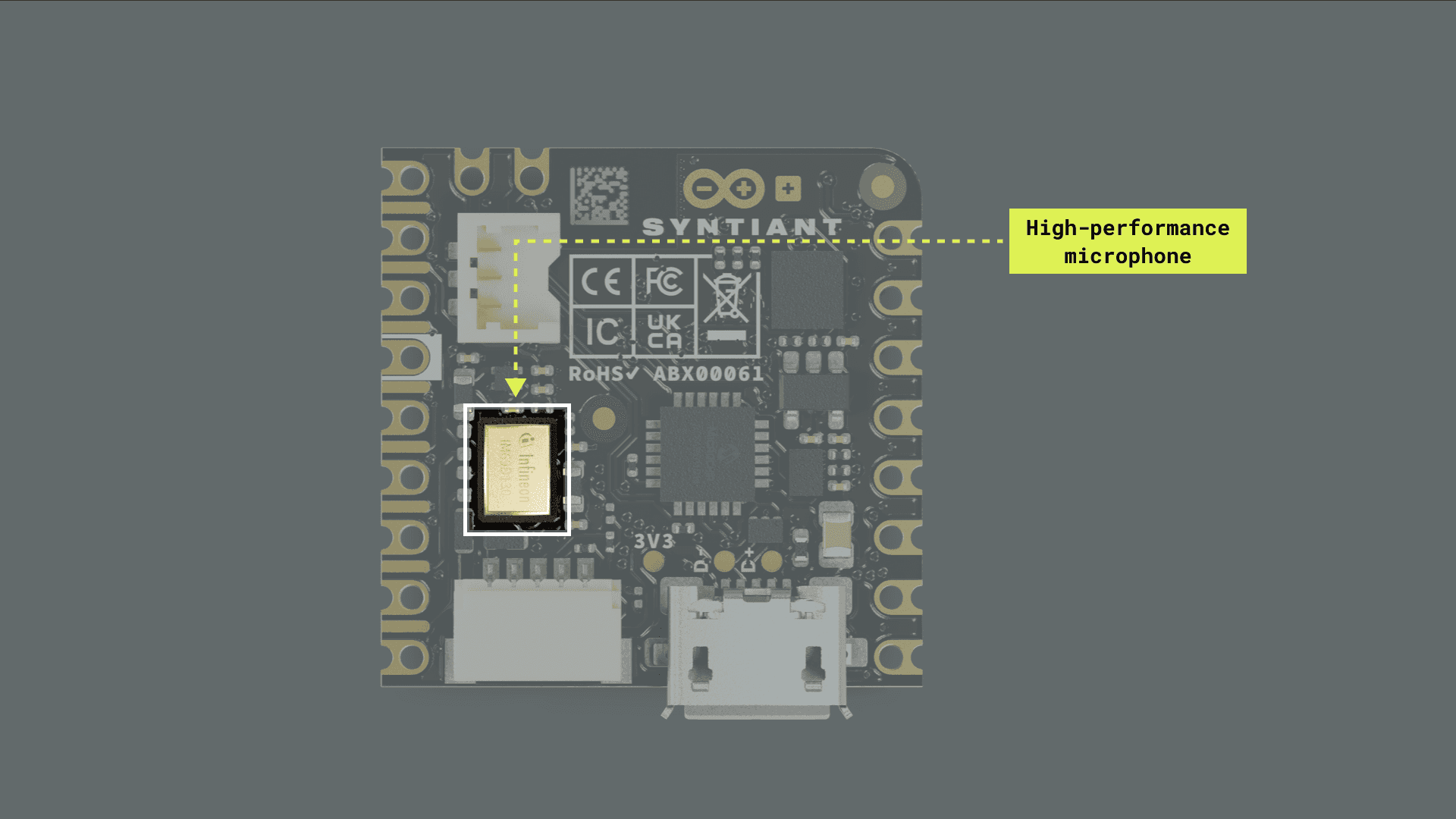

The onboard high-performance microphone of the Nicla Voice is the IM69D130 from Infineon® Technologies. The IM69D130 is specifically designed for applications that require high-quality audio recording and accurate voice detection, such as voice-controlled Internet of Things (IoT) devices, smart home systems, and mobile devices.

An external PDM microphone can be connected to the board via an onboard Zero Insertion Force (ZIF) connector. The manufacturer part number of the onboard ZIF connector is FH33J-4S-0.5SH(99); a 4-pin 0.5 mm pitch FFC cable is compatible with this connector.

The example code shown below captures audio from the onboard microphone of the Nicla Voice, compresses the audio using the G722 codec, and streams the compressed audio data to the serial port. The example can be found in the board's built-in examples by navigating to File -> Examples -> NDP -> Record_and_stream.

Keep in mind that this example code requires the following libraries:

• arduino-libg722
• arduino-audio-tools

Make sure to install these libraries in the Arduino IDE before uploading the code to your Nicla Voice board.

Copy
1// Include necessary libraries for the Nicla Voice board, audio processing, and G722 codec support
2#include "Arduino.h"
3#include "NDP.h"
4#include "AudioTools.h"
5#include "AudioCodecs/CodecG722.h"
6
7// Create an instance of the G722Encoder class for handling audio encoding
8G722Encoder encoder;
9
10// Declare a buffer to temporarily store audio data
11uint8_t data[2048];
12
13// Define a function to turn on the green LED for a short duration as an event indicator
14void ledGreenOn() {
15  nicla::leds.begin();
16  nicla::leds.setColor(green);
17  delay(200);
18  nicla::leds.setColor(off);
19  nicla::leds.end();
20}
21
22void setup() {
23  // Start UART communication at 115200 baud
24  Serial.begin(115200);
25
26  // Initialize the Nicla Voice board, disable the LDO
27  nicla::begin();
28  nicla::disableLDO();
29
30  // Initialize the built-in RGB LED, set up as an event indicator
31  nicla::leds.begin();
32  NDP.onEvent(ledGreenOn);
33
34  // Set up the G722 encoder (1 channel, 16 kHz sample rate)
35  AudioBaseInfo bi;
36  bi.channels = 1;
37  bi.sample_rate = 16000;
38  encoder.setOptions(0);
39  encoder.begin(bi);
40
41  // Set the output stream for the encoder to the serial port
42  encoder.setOutputStream(Serial);
43
44  // Load the required firmware packages for the NDP processor, turn on the onboard microphone
45  NDP.begin("mcu_fw_120_v91.synpkg");
46  NDP.load("dsp_firmware_v91.synpkg");
47  NDP.load("alexa_334_NDP120_B0_v11_v91.synpkg");
48  NDP.turnOnMicrophone();
49
50  // Check the audio chunk size to ensure it doesn't exceed the buffer size
51  int chunk_size = NDP.getAudioChunkSize();
52  if (chunk_size >= sizeof(data)) {
53    for(;;);
54  }
55}
56
57// Continuously read audio data from the microphone, encode it using the G722 codec, send it to the serial port
58void loop() {
59  // Declare a variable to store the length of the extracted audio data
60  unsigned int len = 0;
61
62  // Extract audio data from the NDP and store it in the data buffer
63  NDP.extractData(data, &len);
64
65  // Pass the extracted audio data to the G722 encoder and send it to the serial port
66  encoder.write(data, len);
67}

Here you can find a step-by-step explanation of the code:

First, the necessary libraries are included:

• Arduino.h

  and

  NDP.h

  for the Nicla Voice board's basic functions and microphone control;

  AudioTools.h

  and

  CodecG722.h

  for audio processing and G722 codec support.
• An instance of the

  G722Encoder

  class is created to handle audio encoding.
• The

  data

  buffer is declared with a size of 2048 bytes to store audio data temporarily.

In the

setup()

• The serial communication is initialized at a baud rate of 115200.
• The Nicla Voice board is initialized, and the LDO is disabled.
• The green LED is configured to turn on when an event occurs.
• The

  G722Encoder

  instance is set up with the proper audio parameters (1 channel, 16 kHz sample rate).
• The output stream for the encoder is set to the serial port.
• The NDP Processor is set up with the necessary firmware packages and the onboard microphone is turned on.
• The audio chunk size is checked to ensure it doesn't exceed the buffer size.

In the

loop()

• Audio data is extracted from the NDP processor and stored in the

  data

  buffer.
• The length of the extracted audio data is stored in the

  len

  variable.
• The extracted audio data is passed to the G722 encoder, which compresses the audio and sends it to the serial port.

To extract the audio data on a computer, you will need to set up the serial port as raw and dump the data to a file (e.g., test.g722). Then, you can open the file with a software like Audacity to play back the audio.

Machine Learning and Audio Analysis

You can use the Nicla Voice and the Machine Learning Tools of the Arduino Cloud to create your own audio analysis Machine Learning models. Check out this tutorial and start with Machine Learning with the Nicla Voice.

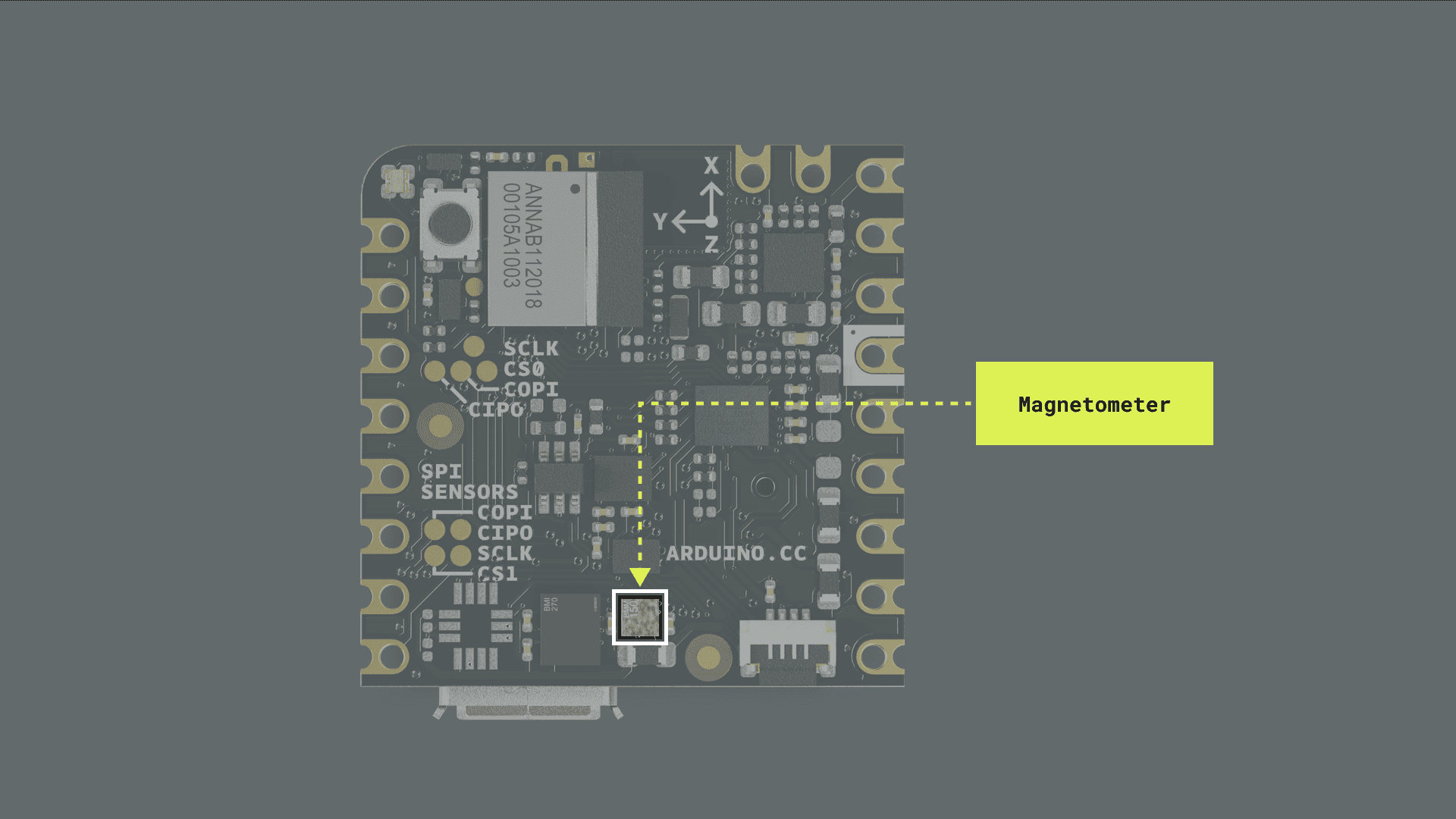

IMU and Magnetometer

The Nicla Voice features an advanced IMU and a magnetometer, which allows the board to sense motion, orientation, and magnetic fields. The IMU on the Nicla Voice board is the BMI270 from Bosch®. It consists of a 3-axis accelerometer and a 3-axis gyroscope. They can provide information about the board's motion, orientation, and rotation in a 3D space. The BMI270 is designed for wearables and offers low power consumption and high performance, making it suitable for various applications, such as gesture recognition, motion tracking, or stabilization.

The onboard magnetometer of the Nicla Voice can be used to determine the board's orientation relative to Earth's magnetic field, which is helpful for compass applications, navigation, or detecting the presence of nearby magnetic objects. The magnetometer on the Nicla Voice board is the BMM150, also from Bosch®. It is a 3-axis sensor that measures the strength and direction of magnetic fields surrounding the board.

Accelerometer and Gyroscope Data

The example sketch below shows how to get acceleration (m/s²) and angular velocity (in °/s) data from the onboard IMU and streams it to the Arduino IDE Serial Monitor and Serial Plotter. The sketch needs the

BMI270_Init.h

Copy
1/**
2  Nicla Voice accelerometer and gyroscope test sketch
3  Name: nv_acc_gyro_test.ino
4  Purpose: Sketch tests onboard accelerometer and gyroscope (BMI270)
5
6  @author Arduino PRO Content Team
7  @version 1.0 22/05/23
8*/
9
10#include "NDP.h"
11#include "BMI270_Init.h"
12
13// Named constants
14#define READ_START_ADDRESS  0x0C
15#define READ_BYTE_COUNT     16
16#define SENSOR_DATA_LENGTH  16
17
18// Accelerometer range is set to +/-2g
19// Raw accelerometer data is represented as a signed 16-bit integer
20// Raw accelerometer data can be converted to acceleration in m/s^2 units using the following scale factor:
21#define ACCEL_SCALE_FACTOR  ((2.0 / 32767.0) * 9.8)
22
23// Gyroscope has a sensitivity of 16.4 LSB/dps
24#define GYRO_SCALE_FACTOR   (1 / 16.4)
25
26/**
27  Turns on and off the onboard blue LED.
28
29  @param label to be printed on the Serial Monitor.
30*/
31void ledBlueOn(char* label) {
32  nicla::leds.begin();
33  nicla::leds.setColor(blue);
34  delay(200);
35  nicla::leds.setColor(off);
36  Serial.println(label);
37  nicla::leds.end();
38}
39
40/**
41  Turns on and off the onboard green LED.
42*/
43void ledGreenOn() {
44  nicla::leds.begin();
45  nicla::leds.setColor(green);
46  delay(200);
47  nicla::leds.setColor(off);
48  nicla::leds.end();
49}
50
51/**
52  Blinks onboard red LED periodically every 200 ms.
53*/
54void ledRedBlink() {
55  while (1) {
56    nicla::leds.begin();
57    nicla::leds.setColor(red);
58    delay(200);
59    nicla::leds.setColor(off);
60    delay(200);
61    nicla::leds.end();
62  }
63}
64
65// Macros for checking the sensor status.
66#define CHECK_STATUS(s) do {if (s) {Serial.print("SPI access error in line "); Serial.println(__LINE__); for(;;);}} while (0)
67
68void setup() {
69  int status;
70  uint8_t __attribute__((aligned(4))) sensor_data[SENSOR_DATA_LENGTH];
71
72  // Initiate Serial communication for debugging and monitoring.
73  Serial.begin(115200);
74
75  // Initialize Nicla Voice board's system functions.
76  // Disable the LDO regulator on the Nicla Voice board for power saving.
77  // Initialize the built-in RGB LED of the Nicla Voice board.
78  nicla::begin();
79  nicla::disableLDO();
80  nicla::leds.begin();
81
82  // Set up error and event handlers:
83  // - In case of error, the red LED will blink.
84  // - In case of match, the blue LED will turn on.
85  // - In case of any event, the green LED will turn on.
86  NDP.onError(ledRedBlink);
87  NDP.onMatch(ledBlueOn);
88  NDP.onEvent(ledGreenOn);
89
90  // NDP processor initialization with firmwares and models
91  Serial.println("- NDP processor initialization...");
92  NDP.begin("mcu_fw_120_v91.synpkg");
93  NDP.load("dsp_firmware_v91.synpkg");
94  NDP.load("ei_model.synpkg");
95  Serial.println("- NDP processor initialization done!");
96
97  // Set the BMI270 sensor in SPI mode, then read sensor data.
98  status = NDP.sensorBMI270Read(0x0, 1, sensor_data);
99  CHECK_STATUS(status);
100  status = NDP.sensorBMI270Read(0x0, 1, sensor_data);
101  CHECK_STATUS(status);
102
103  // Perform a software reset of the sensor.
104  status = NDP.sensorBMI270Write(0x7E, 0xB6);
105  CHECK_STATUS(status);
106  delay(20);
107
108  // Set the sensor back to SPI mode after the software reset.
109  status = NDP.sensorBMI270Read(0x0, 1, sensor_data);
110  CHECK_STATUS(status);
111  status = NDP.sensorBMI270Read(0x0, 1, sensor_data);
112  CHECK_STATUS(status);
113
114  // Disable power configurations.
115  status = NDP.sensorBMI270Write(0x7C, 0x00);
116  CHECK_STATUS(status);
117  delay(20);
118
119  // Prepare to load the sensor configuration.
120  status = NDP.sensorBMI270Write(0x59, 0x00);
121  CHECK_STATUS(status);
122
123  // Sensor configuration.
124  Serial.println("- BMI270 initialization starting...");
125  status = NDP.sensorBMI270Write(0x5E, sizeof(bmi270_maximum_fifo_config_file), (uint8_t*)bmi270_maximum_fifo_config_file);
126  CHECK_STATUS(status);
127  Serial.println("- BMI270 Initialization done!");
128  status = NDP.sensorBMI270Write(0x59, 0x01);
129  CHECK_STATUS(status);
130  delay(200);
131
132  // Check sensor status.
133  status = NDP.sensorBMI270Read(0x21, 1, sensor_data);
134  CHECK_STATUS(status);
135
136  // Configure the device to normal power mode with both accelerometer and gyroscope operational.
137  // Set the accelerometer and gyroscope settings such as measurement range and data rate.
138  status = NDP.sensorBMI270Write(0x7D, 0x0E);  // Normal power mode
139  CHECK_STATUS(status);
140  status = NDP.sensorBMI270Write(0x40, 0xA8);  // Accelerometer configuration.
141  CHECK_STATUS(status);
142  status = NDP.sensorBMI270Write(0x41, 0x00);  // Set the accelerometer range to +/- 2g.
143  CHECK_STATUS(status);
144  status = NDP.sensorBMI270Write(0x42, 0xA9);  // Gyroscope configuration.
145  CHECK_STATUS(status);
146  status = NDP.sensorBMI270Write(0x43, 0x00);  // Set the gyroscope range to +/- 2000 dps.
147  CHECK_STATUS(status);
148}
149
150void loop() {
151  // Allocate space for raw sensor data.
152  uint8_t __attribute__((aligned(4))) sensor_data[SENSOR_DATA_LENGTH];
153
154  // Declare variables for accelerometer and gyroscope data.
155  int16_t x_acc_raw, y_acc_raw, z_acc_raw, x_gyr_raw, y_gyr_raw, z_gyr_raw;
156  float x_acc, y_acc, z_acc, x_gyr, y_gyr, z_gyr;
157
158  // Read operation status variable.
159  int status;
160
161  // Perform data read from the BMI270 sensor. The data read includes accelerometer and gyroscope data.
162  // The sensor's read function is called with 0x0C as the start address and 16 as the number of bytes to read.
163  // Collected data is placed into sensor_data array.
164  status = NDP.sensorBMI270Read(READ_START_ADDRESS, READ_BYTE_COUNT, &sensor_data[0]);
165
166  // Check the status of the read operation.
167  CHECK_STATUS(status);
168
169  // Parse the read sensor data. Data is in 16-bit format, where lower byte comes first (little endian).
170  // Data for each axis (X, Y, Z) of the accelerometer and gyroscope is extracted from the array.
171  x_acc_raw = (0x0000 | sensor_data[0] | sensor_data[1] << 8);
172  y_acc_raw = (0x0000 | sensor_data[2] | sensor_data[3] << 8);
173  z_acc_raw = (0x0000 | sensor_data[4] | sensor_data[5] << 8);
174  x_gyr_raw = (0x0000 | sensor_data[6] | sensor_data[7] << 8);
175  y_gyr_raw = (0x0000 | sensor_data[8] | sensor_data[9] << 8);
176  z_gyr_raw = (0x0000 | sensor_data[10] | sensor_data[11] << 8);
177
178  // Convert raw accelerometer data to acceleration expressed in m/s^2.
179  x_acc = x_acc_raw * ACCEL_SCALE_FACTOR;
180  y_acc = y_acc_raw * ACCEL_SCALE_FACTOR;
181  z_acc = z_acc_raw * ACCEL_SCALE_FACTOR;
182
183  // Convert raw gyroscope data to angular velocity expressed in °/s.
184  x_gyr = x_gyr_raw * GYRO_SCALE_FACTOR;
185  y_gyr = y_gyr_raw * GYRO_SCALE_FACTOR;
186  z_gyr = z_gyr_raw * GYRO_SCALE_FACTOR;
187
188  // Print accelerometer data (expressed in m/s^2).
189  Serial.print("x_acc:");
190  Serial.print(x_acc);
191  Serial.print(",");
192  Serial.print("y_acc:");
193  Serial.print(y_acc);
194  Serial.print(",");
195  Serial.print("z_acc:");
196  Serial.println(z_acc);
197
198  // Print gyroscope data (expressed in °/s).
199  Serial.print("x_gyr:");
200  Serial.print(x_gyr);
201  Serial.print(",");
202  Serial.print("y_gyr:");
203  Serial.print(y_gyr);
204  Serial.print(",");
205  Serial.print("z_gyr:");
206  Serial.println(z_gyr);
207
208  delay(1000);
209}

Here you can find a step-by-step explanation of the code:

First, the necessary libraries are included:

• NDP.h

  and

  BMI270_Init.h

  for the Nicla Voice board's basic functions and the IMU control.
• Macros are defined for checking the status of the IMU; these macros allow the sketch to detect and handle sensor errors.

Next, user functions

ledBlueOn()

ledGreenOn()

ledRedBlink()

• These functions allow the onboard LEDs to flash specific colors to indicate different states: blue for a successful match, green for an event, and red to indicate an error.

Next, in the

setup()

• The serial communication is initialized at a baud rate of 115200.
• The Nicla Voice board is initialized, and the LDO regulator (used for putting the board into power-saving mode) is disabled to avoid communication problems with the IMU.
• Error and event handlers are initialized.
• NDP processor is initialized; this process includes populating the external Flash memory of the board with the NDP processor's internal microcontroller firmware (

  mcu_fw_120_v91.synpkg

  ), the NDP processor's internal DSP firmware (

  dsp_firmware_v91.synpkg

  ), and the Machine Learning model (

  ei_model.synpkg

  ).
• The BMI270 sensor is initialized; this includes a software reset, loading the sensor configuration, and setting it into normal power mode with the accelerometer and gyroscope operational.

Finally, in the

loop()

• Memory is allocated for the sensor data; data is then read from the sensor and stored in this allocated space.
• Raw sensor data is then parsed and extracted into raw accelerometer and gyroscope data. This data is represented as 16-bit signed integers ranging from -32 768 to 32 767.
• Raw sensor data is converted into understandable and standard unit measurements; for the accelerometer, data is converted to meters per second squared, and for the gyroscope, data is converted to degrees per second.
• Converted accelerometer and gyroscope data are printed on the Serial Monitor, allowing the user to observe sensor data in real-time.

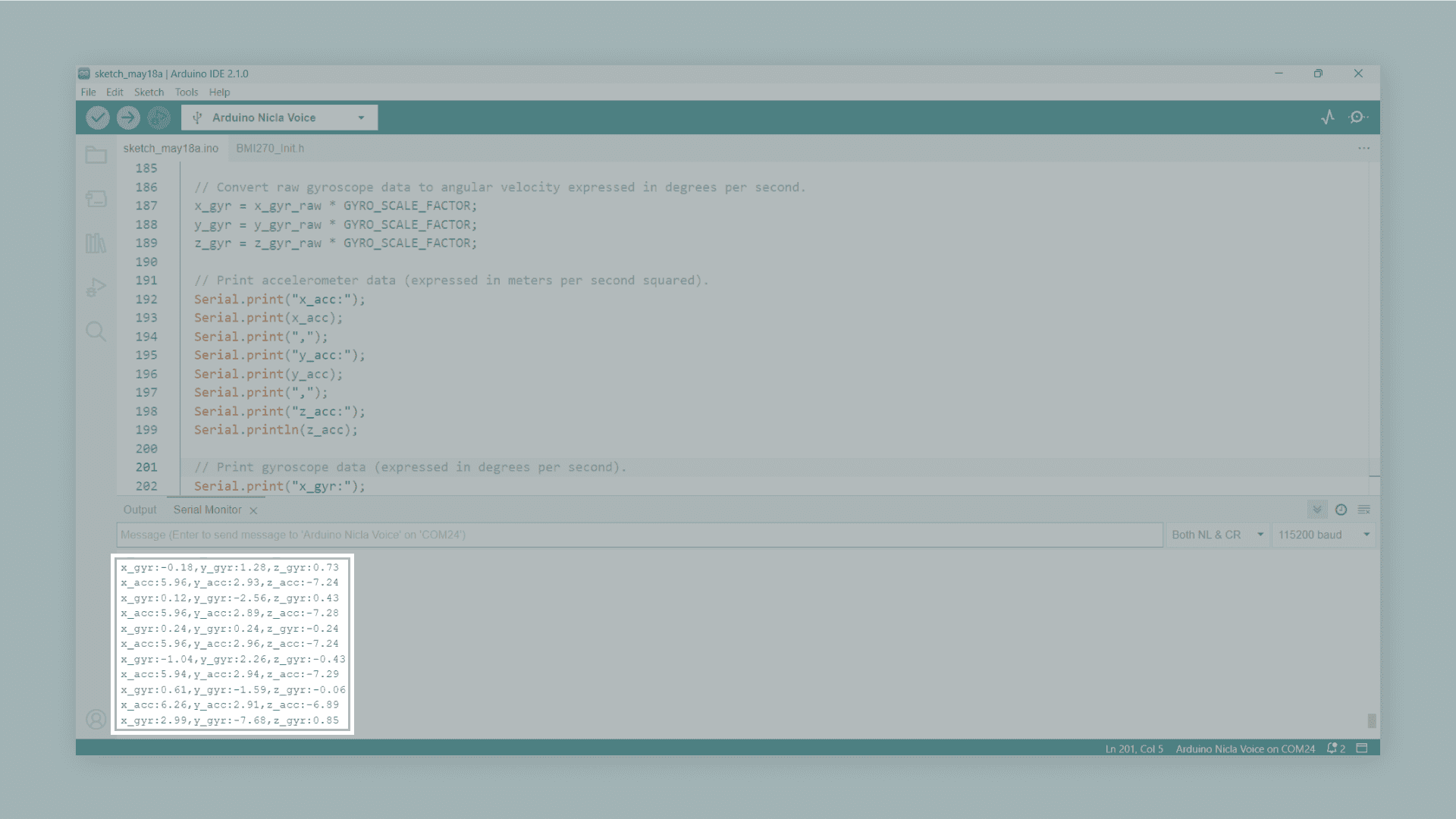

After uploading the example code, you should see accelerometer and gyroscope data on the IDE's Serial Monitor as shown below:

Let's use also the Arduino IDE Serial Plotter to test the example IMU sketch; let's start visualizing only accelerometer data. To do so, comment the gyroscope data output as shown below:

Copy
1// Print accelerometer data (expressed in meters per second squared).
2  Serial.print("x_acc:");
3  Serial.print(x_acc);
4  Serial.print(",");
5  Serial.print("y_acc:");
6  Serial.print(y_acc);
7  Serial.print(",");
8  Serial.print("z_acc:");
9  Serial.println(z_acc);
10
11  /* Print gyroscope data (expressed in degrees per second).
12  Serial.print("x_gyr:");
13  Serial.print(x_gyr);
14  Serial.print(",");
15  Serial.print("y_gyr:");
16  Serial.print(y_gyr);
17  Serial.print(",");
18  Serial.print("z_gyr:");
19  Serial.println(z_gyr); */

Upload the example sketch again and open the IDE's Serial Plotter by navigating to Tools > Serial Plotter. After a while, you should see a real-time graph showing data from the board's onboard accelerometer, as shown below (move the board):

When the board is not moving, you should see acceleration measurements close to zero on the x and y-axis, while the z-axis will be close to 1g (approximately 9.81 m/s²). If you want to visualize gyroscope readings, uncomment the gyroscope data output and comment on the accelerometer data output; when the board is not moving, you should see gyroscope measurements on the three-axis close to zero.

Magnetometer Data

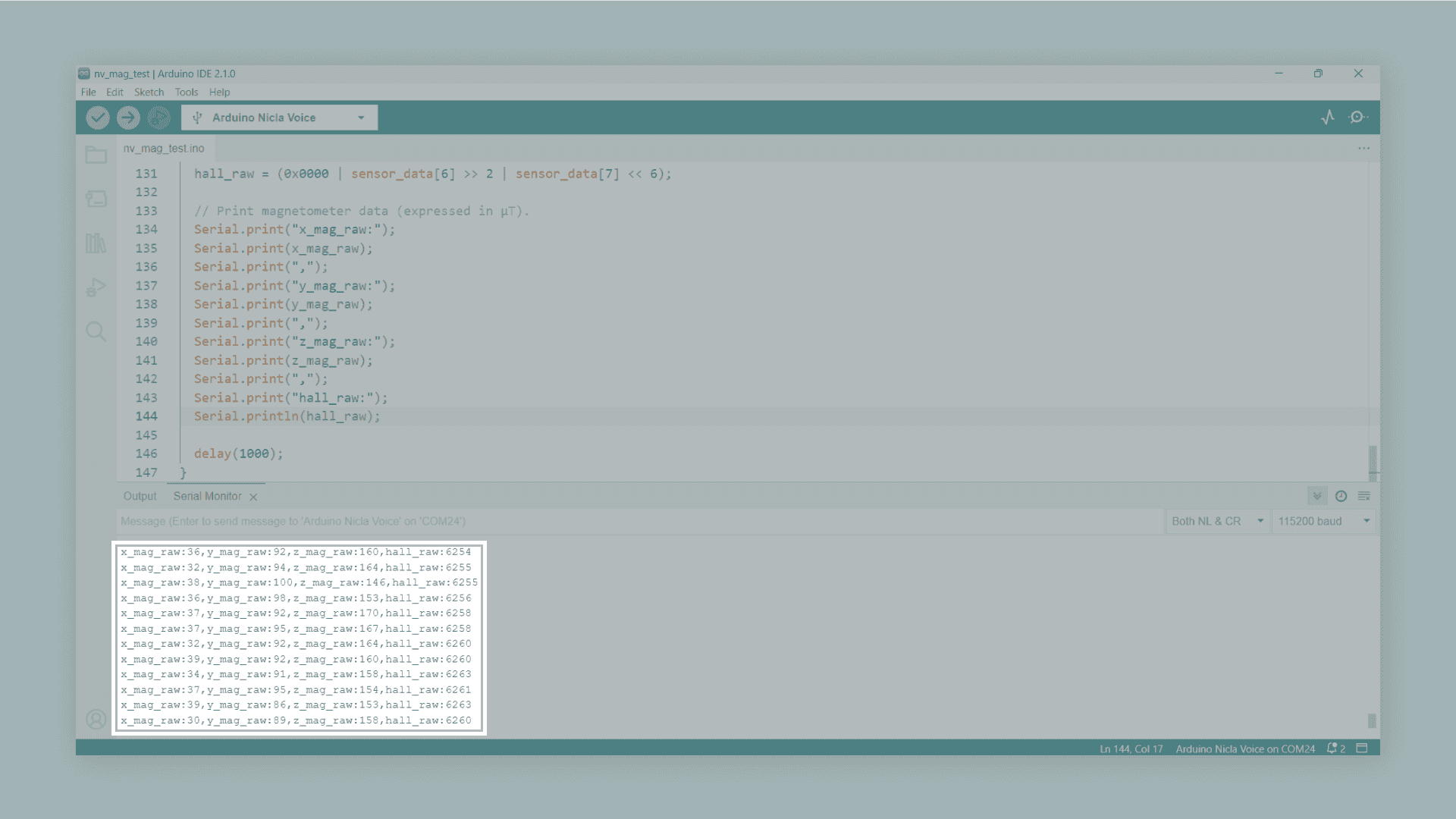

The example code below shows how to get raw magnetic field and Hall resistance data from the onboard magnetometer and stream it to the Arduino IDE Serial Monitor and Serial Plotter. You can download the example sketch here.

Copy
1/**
2  Nicla Voice magnetometer test sketch
3  Name: nv_mag_test.ino
4  Purpose: Sketch tests onboard magnetometer (BMM150)
5
6  @author Arduino PRO Content Team
7  @version 1.0 30/05/23
8*/
9
10#include "NDP.h"
11
12// Named constants
13#define READ_START_ADDRESS  0x42
14#define READ_BYTE_COUNT     8
15#define SENSOR_DATA_LENGTH  16
16
17/**
18  Turns on and off the onboard blue LED.
19
20  @param label to be printed on the Serial Monitor.
21*/
22void ledBlueOn(char* label) {
23  nicla::leds.begin();
24  nicla::leds.setColor(blue);
25  delay(200);
26  nicla::leds.setColor(off);
27  Serial.println(label);
28  nicla::leds.end();
29}
30
31/**
32  Turns on and off the onboard green LED.
33*/
34void ledGreenOn() {
35  nicla::leds.begin();
36  nicla::leds.setColor(green);
37  delay(200);
38  nicla::leds.setColor(off);
39  nicla::leds.end();
40}
41
42/**
43  Blinks onboard red LED periodically every 200 ms.
44*/
45void ledRedBlink() {
46  while (1) {
47    nicla::leds.begin();
48    nicla::leds.setColor(red);
49    delay(200);
50    nicla::leds.setColor(off);
51    delay(200);
52    nicla::leds.end();
53  }
54}
55
56// Macro definition used for checking the sensor status, print error if SPI access fails.
57#define CHECK_STATUS(s) do {\
58    if (s) {\
59        Serial.print("SPI access error in line ");\
60        Serial.println(__LINE__);\
61        for(;;);\
62    }\
63} while (0)
64
65void setup() {
66  int status;
67  uint8_t __attribute__((aligned(4))) sensor_data[SENSOR_DATA_LENGTH];
68
69  // Initiate Serial communication for debugging and monitoring.
70  Serial.begin(115200);
71
72  // Initialize Nicla Voice board's system functions.
73  // Disable the LDO regulator on the Nicla Voice board for power saving.
74  // Initialize the built-in RGB LED of the Nicla Voice board.
75  nicla::begin();
76  nicla::disableLDO();
77  nicla::leds.begin();
78
79  // Set up error and event handlers:
80  // - In case of error, the red LED will blink.
81  // - In case of match, the blue LED will turn on.
82  // - In case of any event, the green LED will turn on.
83  NDP.onError(ledRedBlink);
84  NDP.onMatch(ledBlueOn);
85  NDP.onEvent(ledGreenOn);
86
87  // NDP processor initialization with firmwares and models.
88  Serial.println("- NDP processor initialization...");
89  NDP.begin("mcu_fw_120_v91.synpkg");
90  NDP.load("dsp_firmware_v91.synpkg");
91  NDP.load("ei_model.synpkg");
92  Serial.println("- NDP processor initialization done!");
93
94  // Enable power control bit
95  status = NDP.sensorBMM150Write(0x4B, 0x01);
96  CHECK_STATUS(status);
97  delay(20);
98
99  // Read power control byte
100  status = NDP.sensorBMM150Read(0x4B, 1, sensor_data);
101  CHECK_STATUS(status);
102
103  // Set the magnetometer to active mode (normal operation), with an output data rate of 10 Hz.
104  status = NDP.sensorBMM150Write(0x4C, 0x00);
105  CHECK_STATUS(status);
106
107  // Read chip ID
108  status = NDP.sensorBMM150Read(0x40, 1, sensor_data);
109  CHECK_STATUS(status);
110}
111
112void loop() {
113  // Allocate space for raw sensor data.
114  uint8_t __attribute__((aligned(4)))  sensor_data[SENSOR_DATA_LENGTH];
115
116  // Declare variables for magnetometer data.
117  int16_t x_mag_raw, y_mag_raw, z_mag_raw, hall_raw ;
118  float x_mag, y_mag, z_mag;
119
120  // Read operation status variable.
121  int status;
122
123  // Perform data read from the BMM150 sensor.
124  // The sensor's read function is called with 0x42 as the start address and 8 as the number of bytes to read.
125  // Collected data is placed into sensor_data array.
126  status = NDP.sensorBMM150Read(READ_START_ADDRESS, READ_BYTE_COUNT, sensor_data);
127
128  // Check the status of the read operation.
129  CHECK_STATUS(status);
130
131  // The sensor data is read into an array of bytes (8-bit values). Each measurement from the magnetometer consists
132  // of two bytes, hence the bit shifting and bitwise OR operations to combine these two bytes into one 16-bit value.
133  // Data for each axis (X, Y, Z) of the magnetometer is extracted from the array.
134  x_mag_raw = (0x0000 | sensor_data[0] >> 3 | sensor_data[1] << 5);
135  y_mag_raw = (0x0000 | sensor_data[2] >> 3 | sensor_data[3] << 5);
136  z_mag_raw = (0x0000 | sensor_data[4] >> 1 | sensor_data[5] << 7);
137  hall_raw  = (0x0000 | sensor_data[6] >> 2 | sensor_data[7] << 6);
138
139  // Print raw magnetometer data.
140  Serial.print("x_mag_raw:");
141  Serial.print(x_mag_raw);
142  Serial.print(",");
143  Serial.print("y_mag_raw:");
144  Serial.print(y_mag_raw);
145  Serial.print(",");
146  Serial.print("z_mag_raw:");
147  Serial.print(z_mag_raw);
148  Serial.print(",");
149  Serial.print("hall_raw:");
150  Serial.println(hall_raw);
151
152  delay(1000);
153}

Here you can find a step-by-step explanation of the sketch:

First, the necessary libraries are included:

• NDP.h

  for the Nicla Voice board's basic functions and the magnetometer control.
• Macros are defined for checking the status of the magnetometer; these macros allow the sketch to detect and handle sensor errors.

Next, user functions

ledBlueOn()

ledGreenOn()

ledRedBlink()

• These functions allow the onboard LEDs to flash specific colors to indicate different states: blue for a successful match, green for an event, and red to indicate an error.

Next, in the

setup()

• The serial communication is initialized at a baud rate of 115200.
• The Nicla Voice board is initialized, and the LDO regulator (used for putting the board into power-saving mode) is disabled to avoid communication problems with the magnetometer.
• Error and event handlers are initialized.
• NDP processor is initialized; this process includes populating the external Flash memory of the board with the NDP processor's internal microcontroller firmware (

  mcu_fw_120_v91.synpkg

  ), the NDP processor's internal DSP firmware (

  dsp_firmware_v91.synpkg

  ), and the Machine Learning model (

  ei_model.synpkg

  ).
• The BMM150 sensor is initialized; this includes setting it into normal operation with an output data rate (ODR) of 10 Hz.

Finally, in the

loop()

• Memory is allocated for the sensor data; data is then read from the sensor and stored in this allocated space.
• Raw sensor data is then extracted and parsed into raw magnetometer data. Raw sensor data is extracted from the

  sensor_data

  array, 8-bits at a time, and then combined to form a 16-bit integer for each axis (X, Y, Z) and raw Hall resistance value.
• Raw magnetometer data is printed on the Serial Monitor, allowing the user to observe sensor data in real-time.

After uploading the example code, you should see the magnetometer data on the IDE's Serial Monitor, as shown below:

Now open the IDE's Serial Plotter by navigating to Tools > Serial Plotter. After a while, you should see a real-time graph showing raw data from the board's onboard magnetometer, as shown below (move the board):

IMU and Machine Learning

The example code below demonstrates how to use the Nicla Voice board to perform Machine Learning inference on IMU data. The code sets up event indicators using the onboard RGB LED and sends IMU data to the NDP processor for inference. The example can be found in the board's built-in examples by navigating to File > Examples > NDP > IMUDemo.

Copy
1#include "NDP.h"
2
3// Set to 'true' for the lowest power consumption mode, 'false' otherwise
4const bool lowestPower = false;
5
6// Function to turn on the blue LED and print a label to the serial monitor if not in the lowest power mode
7void ledBlueOn(char* label) {
8  nicla::leds.begin();
9  nicla::leds.setColor(blue);
10  delay(200);
11  nicla::leds.setColor(off);
12  if (!lowestPower) {
13    Serial.println(label);
14  }
15  nicla::leds.end();
16}
17
18// Function to turn on the green LED briefly
19void ledGreenOn() {
20  nicla::leds.begin();
21  nicla::leds.setColor(green);
22  delay(200);
23  nicla::leds.setColor(off);
24  nicla::leds.end();
25}
26
27// Function to make the red LED blink continuously
28void ledRedBlink() {
29  while (1) {
30    nicla::leds.begin();
31    nicla::leds.setColor(red);
32    delay(200);
33    nicla::leds.setColor(off);
34    delay(200);
35    nicla::leds.end();
36  }
37}
38
39void setup() {
40  Serial.begin(115200);
41  nicla::begin();
42  nicla::disableLDO();
43  nicla::leds.begin();
44
45  // Register event handlers for error, match, and event
46  NDP.onError(ledRedBlink);
47  NDP.onMatch(ledBlueOn);
48  NDP.onEvent(ledGreenOn);
49
50  // Load Edge Impulse model and related firmware
51  Serial.println("Loading synpackages");
52  NDP.begin("mcu_fw_120_v91.synpkg");
53  NDP.load("dsp_firmware_v91.synpkg");
54  NDP.load("ei_model_imu.synpkg");
55  Serial.println("packages loaded");
56
57  NDP.getInfo();
58  NDP.configureInferenceThreshold(1088);
59  NDP.interrupts();
60
61  // Enter the lowest power mode, if set
62  nicla::leds.end();
63  if (lowestPower) {
64    NRF_UART0->ENABLE = 0;
65  }
66}
67
68// Predefined IMU data for testing
69extern "C" const unsigned char data_opensset_bin[];
70extern "C" const unsigned char data_circ_bin[];
71extern "C" const unsigned int data_opensset_bin_len;
72extern "C" const unsigned int data_circ_bin_len;
73
74void loop() {
75  // Send openset data (no match expected)
76  Serial.println("Sending openset data... (no match expected)");
77  NDP.sendData((uint8_t*)data_opensset_bin, data_opensset_bin_len);
78  delay(1000);
79
80  // Send circular IMU data (match expected)
81  Serial.println("Sending circular IMU data.... (match expected)");
82  NDP.sendData((uint8_t*)data_circ_bin, data_circ_bin_len);
83  delay(5000);
84}

In the example code above, a Machine Learning model is loaded into the Nicla Voice board, and predefined IMU data is sent to the Machine Learning model for inferencing. Depending on the result, the board will light its built-in RGB LED with different colors:

• If the model matches the input data with a known motion pattern, the built-in RGB LED is turned blue, and the event label is printed to the IDE's Serial Monitor.
• If an error occurs, the built-in RGB LED will blink red continuously.
• While an event is recognized, the built-in RGB LED is turned on green.

To learn more about your Nicla Voice board Machine Learning capabilities, check out the following tutorial and learn how to create a simple motion detection application:

• Motion Detection with Nicla Voice and Machine Learning Tools

Actuators

RGB LED

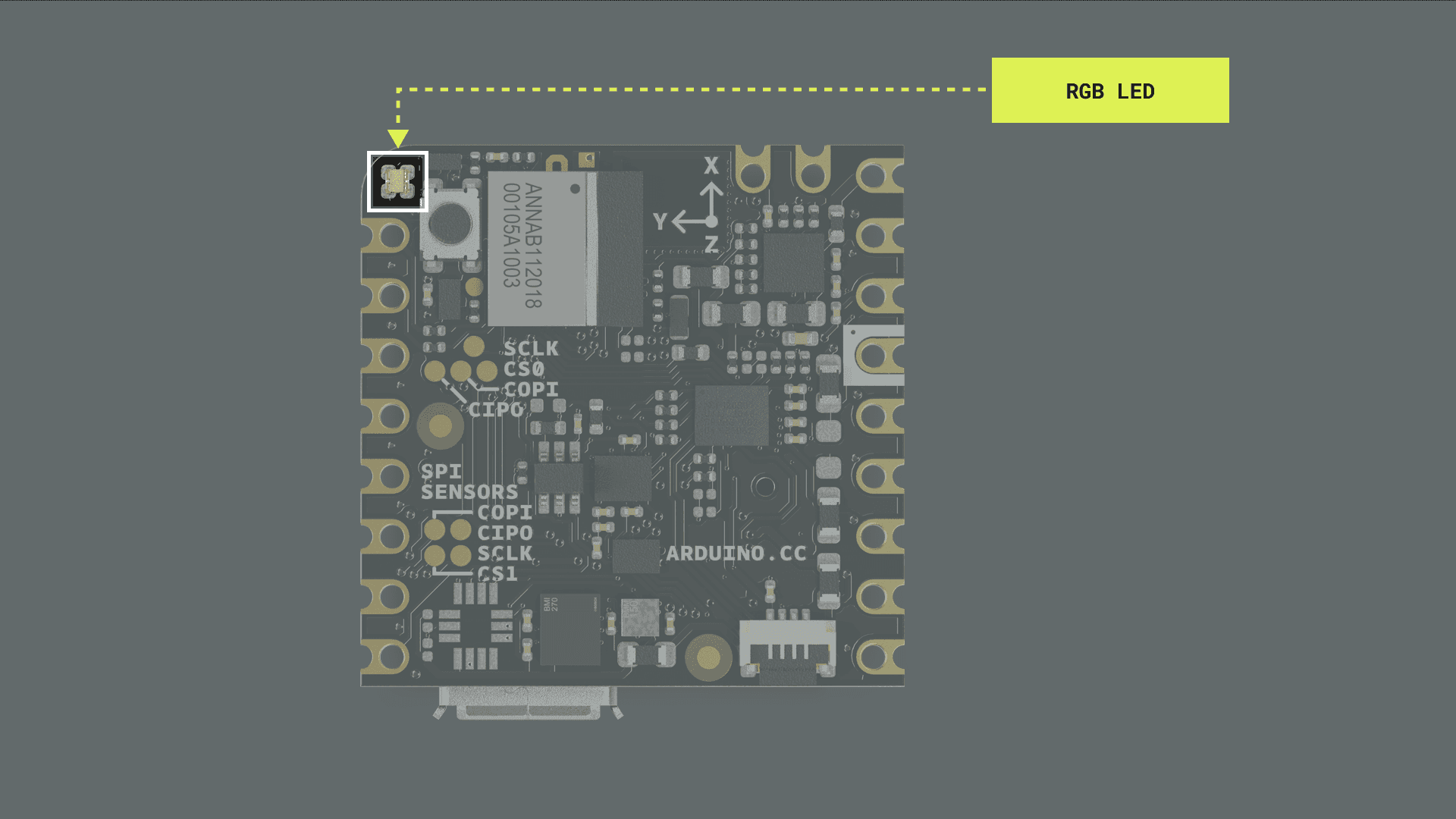

The Nicla Voice features a built-in I2C RGB LED that can be a visual feedback indicator for the user. The LED is connected through the boards' I2C port; therefore, specific functions must be used to operate the LED colors.

To use the RGB LED, include the

Nicla System

Copy
1// Include the Nicla System header to access the built-in RGB LED functions
2#include "Nicla_System.h"

Since the functions are scoped under a class name called

nicla

setup()

Copy
1void setup() {
2  // Initialize the Nicla system and the built-in RGB LED
3  nicla::begin();
4  nicla::leds.begin();
5}

The built-in RGB LED can be set to a desired color using the RGB color model in which the red, green, and blue primary colors of light are added together in various ways to reproduce a broad array of colors. There are predefined colors:

red

green

blue

yellow

magenta

cyan

off

Copy
1// Set the LED color to green, wait for 1000 milliseconds
2nicla::leds.setColor(green);
3delay(1000);
4
5// Set the LED color to blue, wait for 1000 milliseconds
6nicla::leds.setColor(blue);
7delay(1000);

To turn off the built-in RGB LED:

Copy
1// Turn off the LED
2nicla::leds.setColor(off);

You can also choose a value between 0 and 255 for each color component (red, green, or blue) to set a custom color:

Copy
1// Define custom color values for red, green, and blue components
2int red = 234;
3int green = 72;
4int blue = 122;
5
6// Set the LED to the custom color, wait for 1000 milliseconds
7nicla::leds.setColor(red, green, blue);
8delay(1000);
9
10// Turn off the LED and wait, wait for 1000 milliseconds
11nicla::leds.setColor(off);
12delay(1000);

Here you can find a complete example code to blink the built-in I2C RGB LED of the Nicla Voice:

Copy
1// Include the Nicla System header to access the built-in RGB LED functions
2#include "Nicla_System.h"
3
4void setup() {
5  // Initialize the Nicla system and the built-in RGB LED
6  nicla::begin();
7  nicla::leds.begin();
8}
9
10void loop() {
11  // Set the LED color to red, wait for 1000 milliseconds
12  nicla::leds.setColor(red);
13  delay(1000);
14
15  // Turn off the LED and wait, wait for 1000 milliseconds
16  nicla::leds.setColor(off);
17  delay(1000);
18}

Communication

This section of the user manual covers the different communication protocols that are supported by the Nicla Voice board, including the Serial Peripheral Interface (SPI), Inter-Integrated Circuit (I2C), Universal Asynchronous Receiver-Transmitter (UART), and Bluetooth® Low Energy; communication via the onboard ESLOV connector is also explained in this section. The Nicla Voice features dedicated pins for each communication protocol, making connecting and communicating with different components, peripherals, and sensors easy.

SPI

The Nicla Voice supports SPI communication, which allows data transmission between the board and other SPI-compatible devices. The pins used in the Nicla Voice for the SPI communication protocol are the following:

CS

P0_29

SS

6

COPI

P0_27

SCK

8

CIPO

P0_28

MOSI

7

SCLK

P0_11

MISO

9

Please, refer to the board pinout section of the user manual to find them on the board.

Include the

SPI

Copy
1#include <SPI.h>

In the

setup()

CS

Copy
1void setup() {
2  // Set the chip select pin as output
3  pinMode(SS, OUTPUT);
4
5  // Pull the CS pin HIGH to unselect the device
6  digitalWrite(SS, HIGH);
7
8  // Initialize the SPI communication
9  SPI.begin();
10}

To transmit data to an SPI-compatible device, you can use the following commands:

Copy
1// Replace with the target device's address
2byte address = 0x00;
3
4// Replace with the value to send
5byte value = 0xFF;
6
7// Pull the CS pin LOW to select the device
8digitalWrite(SS, LOW);
9
10// Send the address
11SPI.transfer(address);
12
13// Send the value
14SPI.transfer(value);
15
16// Pull the CS pin HIGH to unselect the device
17digitalWrite(SS, HIGH);

I2C

The Nicla Voice supports I2C communication, which allows data transmission between the board and other I2C-compatible devices. The pins used in the Nicla Voice for the I2C communication protocol are the following:

P0_23

SCL

3

P0_22

SDA

4

Please, refer to the board pinout section of the user manual to find them on the board. The I2C pins are also available through the onboard ESLOV connector of the Nicla Voice.

To use I2C communication, include the

Wire

Wire

Copy
1#include <Wire.h>

In the

setup()

Copy
1// Initialize the I2C communication
2Wire.begin();

To transmit data to an I2C-compatible device, you can use the following commands:

Copy
1// Replace with the target device's I2C address
2byte deviceAddress = 0x1;
3
4// Replace with the appropriate instruction byte
5byte instruction = 0x00;
6
7// Replace with the value to send
8byte value = 0xFF;
9
10// Begin transmission to the target device
11Wire.beginTransmission(deviceAddress);
12
13// Send the instruction byte
14Wire.write(instruction);
15
16// Send the value
17Wire.write(value);
18
19// End transmission
20Wire.endTransmission();

To read data from an I2C-compatible device, you can use the

requestFrom()

read()

Copy
1// The target device's I2C address
2byte deviceAddress = 0x1;
3
4// The number of bytes to read
5int numBytes = 2;
6
7// Request data from the target device
8Wire.requestFrom(deviceAddress, numBytes);
9
10// Read while there is data available
11while (Wire.available()) {
12  byte data = Wire.read();
13}

UART

The pins used in the Nicla Voice for the UART communication protocol are the following:

P0_09

TX

1

P0_20

RX

2

Please, refer to the board pinout section of the user manual to find them on the board.

To begin with UART communication, you'll need to configure it first. In the

setup()

Copy
1// Start UART communication at 9600 baud
2Serial1.begin(9600);

To read incoming data, you can use a

while()
