First Configuration with MKR FOX 1200

Learn how to configure the MKR FOX 1200 to work with the SigFox network.

This example for a MKR FOX 1200 device allows you to setup the SigFox's backend for your board.

Hardware Required

Circuit

Connect the antenna to the MKR FOX 1200 board as shown in the image below.

Simple circuit with board and antenna.
Simple circuit with board and antenna.

Code

In setup() the Serial is initialized. This will allow you to insert your first SigFox message and to get the information you need to configure the SigFox's backend. Since the MKRFox1200 doesn't have an auto reset function associated to the Serial monitor opening, a Serial while is present. We also check that the SigFox module is present and can be used.

void setup() { Serial.begin(9600); while(!Serial) {}; if (!SigFox.begin()) { Serial.println("Shield error or not present!"); return; }

After this, we can read our ID and PAC that you have to use to register your board.

String version = SigFox.SigVersion(); String ID = SigFox.ID(); String PAC = SigFox.PAC(); // Display module information Serial.println("MKRFox1200 Sigfox first configuration"); Serial.println("SigFox FW version " + version); Serial.println("ID = " + ID); Serial.println("PAC = " + PAC); Serial.println(""); Serial.print("Module temperature: "); Serial.println(SigFox.temperatureInternal()); Serial.println("Register your board on https://backend.sigfox.com/activate with provided ID and PAC"); delay(100); // Send the module to the deepest sleep SigFox.end();

Serial monitor showing first configuration
Serial monitor showing first configuration

Register Your Board

To register you board you have to navigate to the SigFox backend. This is an one time registration process, needed once for every MKR FOX 1200 you own.

step 1, registration
step 1, registration

Select the country where the user is residing or using it right now

Selecting your country in registration
Selecting your country in registration

After that, enter your ID and PAC number which was shown on the serial monitor after uploading the sketch the FIRST CONFIG.

Now you can check the incoming and outgoing messages from the sigfox back end.

Checking incoming and outgoing messages
Checking incoming and outgoing messages

Input your credentials to get to the Sigfox portal home page.

Putting in credentials
Putting in credentials

Now we have to make sure that our Downlink mode is set to Direct and not Callback.

Checking mode of downloads link
Checking mode of downloads link

Click on the Device type and then click on the Keep Alive and click Edit.

Device type Alive
Device type Alive

So, put Downlink mode to Direct to receive messages back and forth.

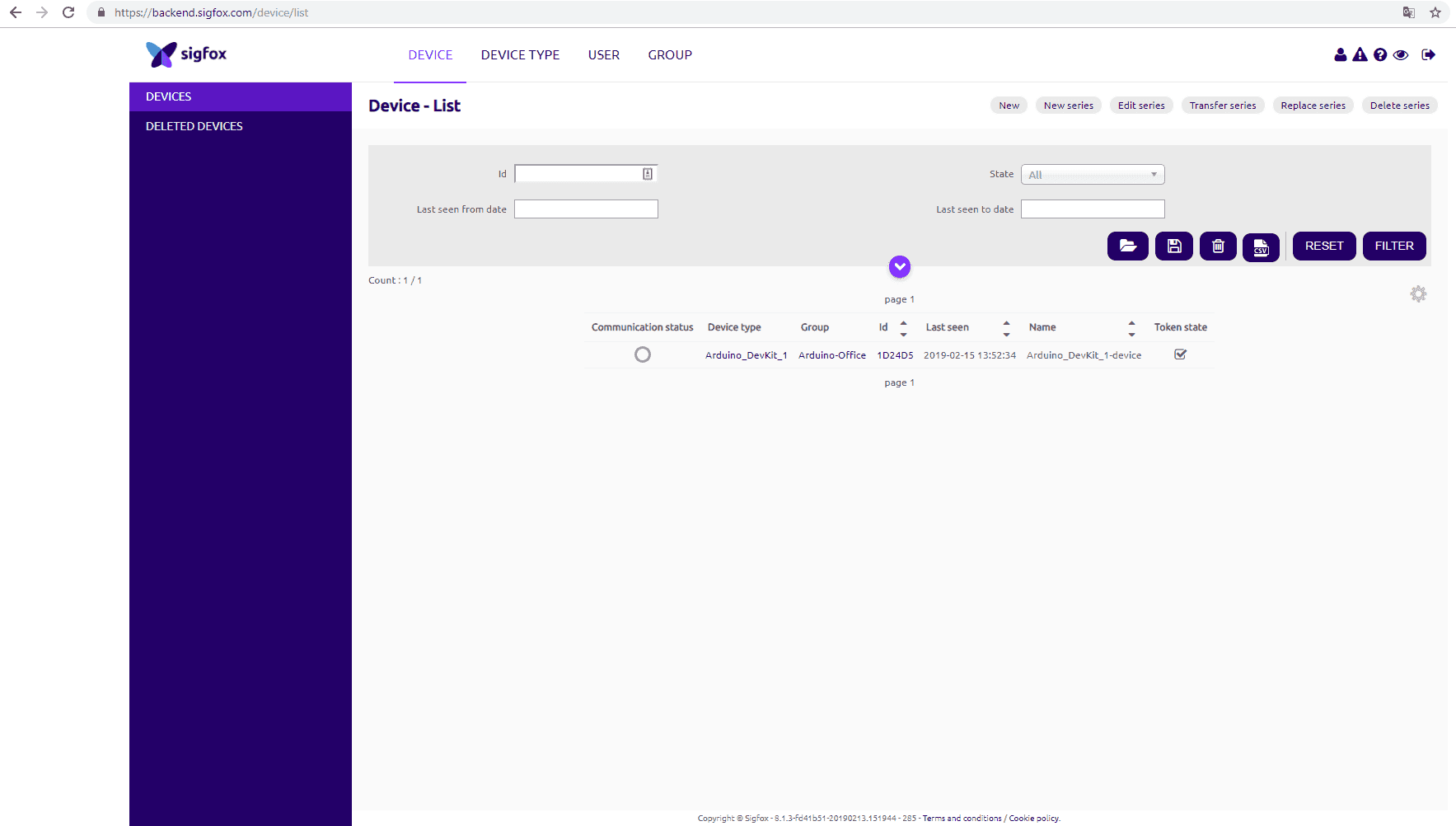

Now you can go back to the main Sigfox portal page and click on the Device on Top left, then click on the ID as shown in the image below.

Finding the ID in the portal
Finding the ID in the portal

Select the messages item on the left menu bar.

Message items in the menu bar
Message items in the menu bar

In this page you can see the messages. If it is sent properly, then you can see the green call back otherwise, you can see callback as a red arrow

Properly sent messages
Properly sent messages

When the configuration for callback is done properly, you can send your first message! If your message is correctly delivered you will get a response from the server similar to:

Serial monitor, positive server response
Serial monitor, positive server response

Otherwise an error message will be printed on the serial monitor

Serial monitor, error message response
Serial monitor, error message response

Complete Code

/* SigFox First Configuration This sketch demonstrates the usage of MKRFox1200 SigFox module. Since the board is designed with low power in mind, it depends directly on ArduinoLowPower library This example code is in the public domain. */ #include <SigFox.h> #include <ArduinoLowPower.h> void setup() { Serial.begin(9600); while (!Serial) {}; // Uncomment this line and comment begin() if you are working with a custom board //if (!SigFox.begin(SPI1, 30, 31, 33, 28, LED_BUILTIN)) { if (!SigFox.begin()) { Serial.println("Shield error or not present!"); return; } // Enable debug led and disable automatic deep sleep // Comment this line when shipping your project :) SigFox.debug(); String version = SigFox.SigVersion(); String ID = SigFox.ID(); String PAC = SigFox.PAC(); // Display module information Serial.println("MKRFox1200 Sigfox first configuration"); Serial.println("SigFox FW version " + version); Serial.println("ID = " + ID); Serial.println("PAC = " + PAC); Serial.println(""); Serial.print("Module temperature: "); Serial.println(SigFox.internalTemperature()); Serial.println("Register your board on https://buy.sigfox.com/activate with provided ID and PAC"); Serial.println("/!\ The displayed PAC is the factory value. It is a throw-away value, which can only be used once for registration.") Serial.println("If this device has already been registered, you can retrieve the updated PAC value on https://backend.sigfox.com/device/list"); Serial.println("Join the Sigfox Builders Slack community to exchange with other developers, get help .. and find new ideas! https://builders.iotagency.sigfox.com/"); delay(100); // Send the module to the deepest sleep SigFox.end(); Serial.println("Type the message to be sent"); while (!Serial.available()); String message; while (Serial.available()) { message += (char)Serial.read(); } // Every SigFox packet cannot exceed 12 bytes // If the string is longer, only the first 12 bytes will be sent if (message.length() > 12) { Serial.println("Message too long, only first 12 bytes will be sent"); } Serial.println("Sending " + message); // Remove EOL message.trim(); // Example of message that can be sent // sendString(message); Serial.println("Getting the response will take up to 50 seconds"); Serial.println("The LED will blink while the operation is ongoing"); // Example of send and read response sendStringAndGetResponse(message); } void loop() { } void sendString(String str) { // Start the module SigFox.begin(); // Wait at least 30mS after first configuration (100mS before) delay(100); // Clears all pending interrupts SigFox.status(); delay(1); SigFox.beginPacket(); SigFox.print(str); int ret = SigFox.endPacket(); // send buffer to SIGFOX network if (ret > 0) { Serial.println("No transmission"); } else { Serial.println("Transmission ok"); } Serial.println(SigFox.status(SIGFOX)); Serial.println(SigFox.status(ATMEL)); SigFox.end(); } void sendStringAndGetResponse(String str) { // Start the module SigFox.begin(); // Wait at least 30mS after first configuration (100mS before) delay(100); // Clears all pending interrupts SigFox.status(); delay(1); SigFox.beginPacket(); SigFox.print(str); int ret = SigFox.endPacket(true); // send buffer to SIGFOX network and wait for a response if (ret > 0) { Serial.println("No transmission"); } else { Serial.println("Transmission ok"); } Serial.println(SigFox.status(SIGFOX)); Serial.println(SigFox.status(ATMEL)); if (SigFox.parsePacket()) { Serial.println("Response from server:"); while (SigFox.available()) { Serial.print("0x"); Serial.println(SigFox.read(), HEX); } } else { Serial.println("Could not get any response from the server"); Serial.println("Check the SigFox coverage in your area"); Serial.println("If you are indoor, check the 20dB coverage or move near a window"); } Serial.println(); SigFox.end(); }

Conclusion

In this tutorial we have connected the MKR FOX 1200 board to the Sigfox network.
