Arduino GIGA R1 Cheat Sheet

Learn how to set up the GIGA R1, get a quick overview of the components, information regarding pins and how to use different Serial (SPI, I2C, UART), and much, much more.

The Arduino GIGA R1 is one of our most feature-packed Arduino boards to date, supported by the same powerful, ML-capable, dual-core microcontroller found in the Pro family's Portenta H7. It features support for display connectors, USB-host, an Audio Jack, an Arducam connector, a CAN bus, 4 UART Serial Ports, 2 I2C buses, dedicated DAC Pins, and much, much more.

This article is a collection of resources and guides to make use of every great feature of this powerful hardware.

You can also visit the documentation platform for the GIGA R1.

Datasheet

The full datasheet is available as a downloadable PDF from the link below:

Arduino IoT Cloud

The GIGA R1 WiFi is compatible with the Arduino IoT Cloud, a cloud service that allows you to create IoT applications in just minutes.

Visit the Getting Started with Arduino IoT Cloud guide for more information.

Power Supply

To power the GIGA R1 you may either use a USB-C cable, or the VIN pin.

If you're using the USB-C connector you must power it with 5V.

Powering the board with the VIN pin gives you more options, as you can safely power the board with any voltage between 6-24V.

By connecting the OFF pin to GND you can cut the power supply to the board, turning it off completely. Read more about this feature in the OFF-pin section of this article

It should however be noted that the internal operating voltage of the microcontroller is 3.3V, and you should not apply voltages higher than that to the GPIO pins.

Installation

For detailed instructions on how to install the GIGA R1 core, please refer to the Getting Started with GIGA R1 guide.

The GIGA R1 can be programmed through:

  • The Classic Arduino IDE 1.8.X,
  • the Arduino IDE 2,
  • and the Web-editor.

Core

The GIGA R1 is based on the Arduino Core for mbed devices, which also provides a set of examples that works out of the box.

These examples are available in the Arduino IDE via File > Examples > Examples for GIGA.

Mbed OS

As Arduino Core for mbed devices is based on MbedOS, it is possible for the operating system to crash while running a sketch.

On most Arduino boards, when a sketch fails due to e.g. memory shortage, the board resets.

On the GIGA R1, whenever the MbedOS fails, the board does not reset automatically. Instead, if it fails, the onboard red LED will start to blink in a looping pattern of 4 fast blinks and 4 slow blinks.

Please note, the red LED does NOT mean your board is broken or bricked.

Red LED blinking due to MbedOS crashing.

In case you encounter the red LED, you can either:

  • Press the reset button once (this resets the sketch).
  • Double-tap the reset button to enter bootloader mode (allowing you to re-program the board).

Boot0

Pressing and holding the button labelled

BOOT0
on the board while powering the board will boot it into DFU-mode (Device Firmware Update), letting you reflash the bootloader without the use of external hardware, if you were to ever need to.

BOOT0 button
BOOT0 button

The state of this button can also be read from a sketch while it is running, giving you a basic interactive component without needing to do any wiring.

To read the state of the Boot0 button in your sketch, you use this line of code:

1digitalRead(PC_13);

STM32H747XI Microcontroller

The GIGA R1 features the powerful dual core STM32H747XI microcontroller found on the Arduino PRO family's Portenta H7 board, but in a form factor accessible to any maker who has tinkered with an Arduino board before.

The STM32H747XI is a powerful dual core chip, capable of being programmed with a high-level language such as MicroPython on one core, while simultaneously running Arduino compiled code on the other, and having the two programs communicate with each other seamlessly.

Microcontroller on the GIGA R1
Microcontroller on the GIGA R1

The microcontroller operates on a voltage of 3.3V, applying a higher voltage than that, such as 5V, to a pin might damage the microcontroller.

Memory

RAM

The GIGA R1 has 1 MB of SRAM that is internal to the processor, and 8MB of SDRAM which you can access and write to.

To access the SDRAM you need to use the SDRAM library, include it in your sketch with:

1#include "SDRAM.h"

Before writing to the SDRAM, you need to allocate it, the following code will create an array that reserves 7MB of the SDRAM for you to write to.

1uint8_t* myVeryBigArray = (uint8_t*)SDRAM.malloc(7 * 1024 * 1024);

If you now store any data in this array, it will be written to SDRAM.

1for (int i = 0; i<128; i++) {
2 myVeryBigArray[i] = i;
3 }

When you no longer need to use the SDRAM, you can free it, so it can be used for other things.

1SDRAM.free(myVeryBigArray);

Flash

The GIGA R1 has 2MB of internal, and 16MB of external Flash storage. The external Flash storage on the GIGA R1 is QSPI and can be accessed and used to store data. If you need to, you can configure the board to act as a USB flash drive, so you can store files such as images, audio, and more.

The GIGA firmware has full support for FATFS and littleFS.

To access the QSPI flash storage as a USB flash drive, you need to follow a few steps, first you need to update the WiFi modules firmware, then you need to create partitions on the flash storage, before finally exposing the partitions to be detected by a computer. These three steps are broken down into different built in example sketches that conveniently all come with the GIGA core.

Firstly, navigate in the IDE menu to

File > Examples > STM32H747_System > WiFiFirmwareUpdater
and upload the sketch to your board.

In the Serial monitor you will now be able to interface with the board. Follow the instructions by sending a "y" in the monitor. You will now see the progress of the firmware update, don't power off the board until you see a message telling you that it is safe.

After completing this, the next step is to partition the flash storage. Navigate to

File > Examples > STM32H747_System > QSPIFormat
and upload the sketch. From here, your interaction with the board will be very similar to when you updated the WiFi firmware. In the serial monitor, you will get the option to choose from two partition schemes. For this purpose, partition scheme 1 is good. Again, send "y" in the serial monitor and wait for confirmation before powering the board off.

Lastly, navigate to

File > Examples > USB Mass Storage > AccessFlashAsUSBDisk
and upload the sketch.

Once this is completed, you should now see a new storage device connected as a portable storage device in your computer.

This can be very useful, as this flash storage does not get deleted when you upload a new sketch to the board. Meaning that you can store files on the board, and then upload a new sketch that can access and use those files without the need for an SD card and card reader.

*Note: In this configuration, the USB serial port used for serial communication with the computer is occupied, so you won't be able to send or read information in the serial monitor. This includes uploading new sketches. To upload a new sketch you need to put the GIGA R1 in DFU mode by double pressing the RST button.***

Radio Module

Murata LBEE5KL1DX-883 radio module + antenna connector.
Murata LBEE5KL1DX-883 radio module + antenna connector.

The Wi-Fi® / Bluetooth® module onboard the GIGA R1 WiFi is the Murata LBEE5KL1DX-883. This module does not come with a built-in antenna, but an external antenna is included when purchasing the board.

The antenna connector (see image above) is located right next to the USB-C connector, and is of a U.FL. type.

Wi-Fi®

Wi-Fi® on the GIGA R1 WiFi is supported via the

WiFi
library. This library is included in the core, so it is automatically installed when installing the core.

To use the Wi-Fi® features on this board, please refer to the GIGA R1 WiFi Network Examples guide.

The easiest way to connect your board to the Internet is via the Arduino IoT Cloud platform. Here you can configure, program, monitor and synchronize your devices without having to write any networking code.

Bluetooth® Low Energy

To use the BLE features on this board, refer to the ArduinoBLE library documentation.

Ethernet

If you want to add Ethernet connectivity to your project, the Arduino Ethernet Shield Rev2 is compatible. In the shield's documentation, you will find a series of examples.

Audio Jack

The GIGA R1 features an audio jack, with 2x DAC channels, and 1x ADC channel, and is capable of reading input from a microphone, as well as outputting sound through a speaker.

Audio jack.
Audio jack.

The audio jack is connected to the following pins:

  • A12 / DAC0
  • A13 / DAC1
  • A7

Both of these come with caveats, though. As there is no amplifier circuit on the board itself, driving a high impedance speaker directly without an amplifier circuit could cause damage to the board, and microphone input without an amplifier circuit between the microphone and the board may sound dim.

In the coming sections we will provide resources and basic information on how to use the audio jack as both an input and an output.

DAC Output

In order to output audio from the DAC, you can use the

AdvancedAnalogRedux
library from Arduino. You will need to connect a speaker to your board either through the audio jack or the DAC pins.

Include the library and create the

AdvancedDAC
object, such as the
dac1(A12)
, with the following code in the beginning of your sketch, outside of the
void setup()
function:

1#include "AdvancedDAC.h"
2
3AdvancedDAC dac1(A12);

To initialize the library, and check that everything went as expected with the following piece of code:

1if (!dac1.begin(AN_RESOLUTION_12, 8000, 32, 64)) {
2 Serial.println("Failed to start DAC!");
3 while (1);
4 }

Then lastly, add the following code to

void loop()
to start:

1if (dac1.available()) {
2
3 // Get a free buffer for writing
4 SampleBuffer buf = dac1.dequeue();
5
6 // Write data to buffer
7 for (int i=0; i<buf.size(); i++) {
8 buf.data()[i] = (i % 2 == 0) ? 0: 0xfff;
9 }
10
11 // Write the buffer data to DAC
12 dac1.write(buf);
13 }

*The options for audio playback and generation on your GIGA R1 are much more vast than this, however. To learn about audio playback in depth, check out the GIGA R1 Audio Guide.*

ADC Input

The audio jack on the GIGA R1 is also connected to pin A7, for microphone capabilities.

To take advantage of this, you can use the

AdvancedAnalogRedux
library from Arduino, start off by including the library and setting up the pin as an
AdvancedADC
pin in the beginning of your sketch, outside of
void setup()
.

1#include "AdvancedADC.h"
2
3AdvancedADC adc1(A7);

Now, initialize the library and run a check to make sure everything went as expected with the following code within

void setup()
:

1Serial.begin(9600);
2
3 // Resolution, sample rate, number of samples per channel, and queue depth of the ADC
4 if (!adc1.begin(AN_RESOLUTION_16, 16000, 32, 64)) {
5 Serial.println("Failed to start analog acquisition!");
6 while (1);
7 }

Finally, read the ADC, and store it in a way that you can use it, do this within

void loop()
:

1if (adc1.available()) {
2 SampleBuffer buf = adc1.read();
3
4 // Print first sample
5 Serial.println(buf[0]);
6
7 // Release the buffer to return it to the pool
8 buf.release();

*The options for audio input on your GIGA R1 are much more vast than this, however. To learn about audio recording in depth, check out the GIGA R1 Audio Guide.*

MIPI Display Interface

The STM32H747XI has an internal 2D graphics accelerator with support for resolutions up to 1024x768, it also has the ability to encode and decode JPEG codec. This is what allows the GIGA R1 to boast a 2 lane MIPI display interface.

This means that the GIGA R1 is capable of driving a touch-display large enough to build a substantial user interface. The LVGL library is a powerful tool to quickly build an interactive interface.

USB Features

To learn about all the USB features in more detail, visit the Guide to GIGA R1 USB Features.

USB HID

The GIGA R1 comes with support for HID, and can be used as either a keyboard or mouse. For more information, visit the USB HID section.

USBHost

USB-A connector.
USB-A connector.

The USB-A port you find on the GIGA R1 is configured as a host-only port, meaning that it cannot be used to program the board, instead it is used to connect peripherals to the board.

The board can receive keyboard input, effectively enabling a few hundred more inputs without any wiring, or be used to read & write files on a USB flash drive, which makes it possible to for example, build a datalogger.

For more information, go to the following sections:

RTC

RTC Manual Example

The following sketch will continuously print the time in the Serial monitor.

1#include "mbed.h"
2#include <mbed_mktime.h>
3
4constexpr unsigned long printInterval { 1000 };
5unsigned long printNow {};
6
7void setup() {
8 Serial.begin(9600);
9 RTCset();
10}
11
12void loop() {
13 if (millis() > printNow) {
14 Serial.print("System Clock: ");
15 Serial.println(getLocaltime());
16 printNow = millis() + printInterval;
17 }
18}
19
20void RTCset() // Set cpu RTC
21{
22 tm t;
23 t.tm_sec = (0); // 0-59
24 t.tm_min = (52); // 0-59
25 t.tm_hour = (14); // 0-23
26 t.tm_mday = (18); // 1-31
27 t.tm_mon = (11); // 0-11 "0" = Jan, -1
28 t.tm_year = ((22)+100); // year since 1900, current year + 100 + 1900 = correct year
29 set_time(mktime(&t)); // set RTC clock
30}
31
32String getLocaltime()
33{
34 char buffer[32];
35 tm t;
36 _rtc_localtime(time(NULL), &t, RTC_4_YEAR_LEAP_YEAR_SUPPORT);
37 strftime(buffer, 32, "%Y-%m-%d %k:%M:%S", &t);
38 return String(buffer);
39}

To get accurate time, you'll want to change the values in

void RTCset()
to whatever time it is when you're starting this clock. As long as the VRTC pin is connected to power, the clock will keep ticking and time will be kept accurately.

RTC Wi-Fi® Example

With the following sketch, you can automatically set the time by requesting the time from a Network Time Protocol (NTP), using the UDP protocol.

1/*
2 Udp NTP Client
3
4 Get the time from a Network Time Protocol (NTP) time server
5 Demonstrates use of UDP sendPacket and ReceivePacket
6 For more on NTP time servers and the messages needed to communicate with them,
7 see http://en.wikipedia.org/wiki/Network_Time_Protocol
8
9 created 4 Sep 2010
10 by Michael Margolis
11 modified 9 Apr 2012
12 by Tom Igoe
13 modified 28 Dec 2022
14 by Giampaolo Mancini
15
16This code is in the public domain.
17 */
18
19#include <WiFi.h>
20#include <WiFiUdp.h>
21#include <mbed_mktime.h>
22
23int status = WL_IDLE_STATUS;
24#include "arduino_secrets.h"
25///////please enter your sensitive data in the Secret tab/arduino_secrets.h
26char ssid[] = ""; // your network SSID (name)
27char pass[] = ""; // your network password (use for WPA, or use as key for WEP)
28int keyIndex = 0; // your network key index number (needed only for WEP)
29
30unsigned int localPort = 2390; // local port to listen for UDP packets
31
32// IPAddress timeServer(162, 159, 200, 123); // pool.ntp.org NTP server
33
34constexpr auto timeServer { "pool.ntp.org" };
35
36const int NTP_PACKET_SIZE = 48; // NTP timestamp is in the first 48 bytes of the message
37
38byte packetBuffer[NTP_PACKET_SIZE]; // buffer to hold incoming and outgoing packets
39
40// A UDP instance to let us send and receive packets over UDP
41WiFiUDP Udp;
42
43constexpr unsigned long printInterval { 1000 };
44unsigned long printNow {};
45
46void setup()
47{
48 // Open serial communications and wait for port to open:
49 Serial.begin(9600);
50 while (!Serial) {
51 ; // wait for serial port to connect. Needed for native USB port only
52 }
53
54 // check for the WiFi module:
55 if (WiFi.status() == WL_NO_SHIELD) {
56 Serial.println("Communication with WiFi module failed!");
57 // don't continue
58 while (true)
59 ;
60 }
61
62 // attempt to connect to WiFi network:
63 while (status != WL_CONNECTED) {
64 Serial.print("Attempting to connect to SSID: ");
65 Serial.println(ssid);
66 // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
67 status = WiFi.begin(ssid, pass);
68
69 // wait 10 seconds for connection:
70 delay(10000);
71 }
72
73 Serial.println("Connected to WiFi");
74 printWifiStatus();
75
76 setNtpTime();
77
78}
79
80void loop()
81{
82 if (millis() > printNow) {
83 Serial.print("System Clock: ");
84 Serial.println(getLocaltime());
85 printNow = millis() + printInterval;
86 }
87}
88
89void setNtpTime()
90{
91 Udp.begin(localPort);
92 sendNTPpacket(timeServer);
93 delay(1000);
94 parseNtpPacket();
95}
96
97// send an NTP request to the time server at the given address
98unsigned long sendNTPpacket(const char * address)
99{
100 memset(packetBuffer, 0, NTP_PACKET_SIZE);
101 packetBuffer[0] = 0b11100011; // LI, Version, Mode
102 packetBuffer[1] = 0; // Stratum, or type of clock
103 packetBuffer[2] = 6; // Polling Interval
104 packetBuffer[3] = 0xEC; // Peer Clock Precision
105 // 8 bytes of zero for Root Delay & Root Dispersion
106 packetBuffer[12] = 49;
107 packetBuffer[13] = 0x4E;
108 packetBuffer[14] = 49;
109 packetBuffer[15] = 52;
110
111 Udp.beginPacket(address, 123); // NTP requests are to port 123
112 Udp.write(packetBuffer, NTP_PACKET_SIZE);
113 Udp.endPacket();
114}
115
116unsigned long parseNtpPacket()
117{
118 if (!Udp.parsePacket())
119 return 0;
120
121 Udp.read(packetBuffer, NTP_PACKET_SIZE);
122 const unsigned long highWord = word(packetBuffer[40], packetBuffer[41]);
123 const unsigned long lowWord = word(packetBuffer[42], packetBuffer[43]);
124 const unsigned long secsSince1900 = highWord << 16 | lowWord;
125 constexpr unsigned long seventyYears = 2208988800UL;
126 const unsigned long epoch = secsSince1900 - seventyYears;
127 set_time(epoch);
128
129#if defined(VERBOSE)
130 Serial.print("Seconds since Jan 1 1900 = ");
131 Serial.println(secsSince1900);
132
133 // now convert NTP time into everyday time:
134 Serial.print("Unix time = ");
135 // print Unix time:
136 Serial.println(epoch);
137
138 // print the hour, minute and second:
139 Serial.print("The UTC time is "); // UTC is the time at Greenwich Meridian (GMT)
140 Serial.print((epoch % 86400L) / 3600); // print the hour (86400 equals secs per day)
141 Serial.print(':');
142 if (((epoch % 3600) / 60) < 10) {
143 // In the first 10 minutes of each hour, we'll want a leading '0'
144 Serial.print('0');
145 }
146 Serial.print((epoch % 3600) / 60); // print the minute (3600 equals secs per minute)
147 Serial.print(':');
148 if ((epoch % 60) < 10) {
149 // In the first 10 seconds of each minute, we'll want a leading '0'
150 Serial.print('0');
151 }
152 Serial.println(epoch % 60); // print the second
153#endif
154
155 return epoch;
156}
157
158String getLocaltime()
159{
160 char buffer[32];
161 tm t;
162 _rtc_localtime(time(NULL), &t, RTC_FULL_LEAP_YEAR_SUPPORT);
163 strftime(buffer, 32, "%Y-%m-%d %k:%M:%S", &t);
164 return String(buffer);
165}
166
167void printWifiStatus()
168{
169 // print the SSID of the network you're attached to:
170 Serial.print("SSID: ");
171 Serial.println(WiFi.SSID());
172
173 // print your board's IP address:
174 IPAddress ip = WiFi.localIP();
175 Serial.print("IP Address: ");
176 Serial.println(ip);
177
178 // print the received signal strength:
179 long rssi = WiFi.RSSI();
180 Serial.print("signal strength (RSSI):");
181 Serial.print(rssi);
182 Serial.println(" dBm");
183}

VRTC Pin

The GIGA R1 also features a

VRTC
pin, giving you the ability to power the RTC with a coin cell battery to keep the time even when your board is turned off, for low power timekeeping.

VRTC pin on the GIGA R1
VRTC pin on the GIGA R1

Camera Interface

The Arduino GIGA features an onboard Arducam compatible connector.

To learn more about the camera capabilities of the GIGA R1, check out the GIGA R1 Camera Guide

JTAG

The GIGA R1 features a 2x5 pin JTAG (Joint Test Action Group) connector, giving advanced debug functionalities for more advanced users.

JTAG Connector
JTAG Connector

CAN Bus

The GIGA R1 features a dedicated CAN bus.

CAN Bus
CAN Bus

The CAN bus does not include a built in transceiver. If you need to use the CAN bus, you can add a transceiver as a breakout board.

CAN, or Controller Area Network, is a communication standard that allows microcontroller-based devices to communicate with each other without the need for a host computer. This means that building a complex system with many different subsystems within becomes much easier.

This makes the GIGA R1 a powerful option for complex multilayered systems, as it can be integrated into existing systems or be used to build a new one from scratch.

The CAN pins on the GIGA R1 are labelled

CANRX
and
CANTX
. Typically, transceiver breakouts are labelled with a similar syntax, and to connect them to the board, use the following wiring scheme:

GIGA R1Transceiver
VCC3.3V
GNDGND
CANTXCANTX*
CANRXCANRX*

*The name of CANTX/CANRX differs from product to product.

Below is an example of how to send & receive data using a CAN bus.

1#include "CAN.h"
2
3mbed::CAN can1(PB_5, PB_13);
4uint8_t counter = 0;
5
6void send() {
7 Serial.println("send()");
8 if (can1.write(mbed::CANMessage(1337, &counter, 1))) {
9 Serial.println("wloop()");
10 counter++;
11 Serial.print("Message sent: ");
12 Serial.println(counter);
13 } else {
14 Serial.println("Transmission error");
15 Serial.println(can1.tderror());
16 can1.reset();
17 }
18}
19
20void receive() {
21 mbed::CANMessage msg;
22 if (can1.read(msg)) {
23 Serial.print("Message received: ");
24 Serial.println(msg.data[0]);
25 }
26}
27
28
29void setup() {
30 Serial.begin(115200);
31 can1.frequency(1000000);
32}
33
34bool receiver = false;
35void loop() {
36 if (receiver) {
37 receive();
38 } else {
39 send();
40 }
41 delay(1000);
42}

SPI

SPI Pins
SPI Pins

The GIGA R1 features two separate SPI (Serial Peripheral Interface) buses, one is configured on the 6 pin header (ICSP) labelled SPI, and the other is broken out into pin connections on the board.

The first bus (connector),

SPI1
uses the following pins:

  • (CIPO) - D89
  • (COPI) - D90
  • (SCK) - D91
  • (CS) - unassigned, use any free GPIO for this.

The second bus (header),

SPI5
, uses the following pins:

  • (CIPO) - D12
  • (COPI) - D11
  • (SCK) - D13
  • (CS) - D10

For using both SPI buses simultaneously, check out the following example:

1#include <SPI.h>
2
3const int CS_1 = 10;
4const int CS_2 = 5;
5
6void setup() {
7 pinMode(CS_1, OUTPUT);
8 pinMode(CS_2, OUTPUT);
9
10 SPI.begin();
11 SPI1.begin();
12
13 digitalWrite(CS_1, LOW);
14 digitalWrite(CS_2, LOW);
15
16 SPI.transfer(0x00);
17 SPI1.transfer(0x00);
18
19 digitalWrite(CS_1, HIGH);
20 digitalWrite(CS_2, HIGH);
21}
22
23void loop() {
24}

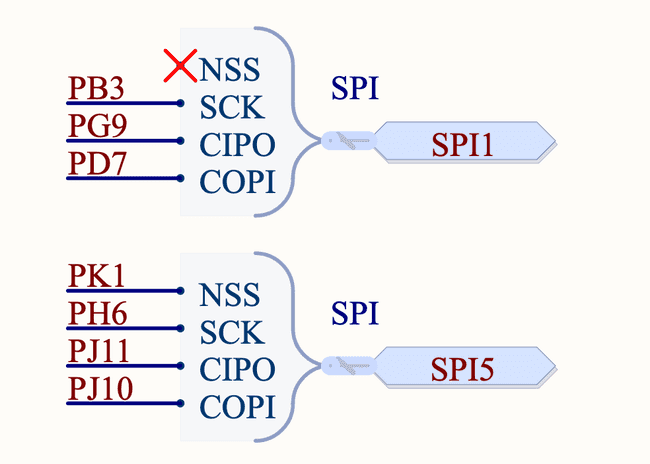

Please note that the in the GIGA R1 schematics and the code does not match exactly. In the schematics, you will notice that

SPI
is
SPI1
and
SPI1
is
SPI5
.

SPI ports in the schematics.
SPI ports in the schematics.

I2C Pins

I2C lets you connect multiple I2C compatible devices in series using only two pins. The controller will send out information through the I2C bus to a 7 bit address, meaning that the technical limit of I2C devices on a single line is 128. Practically, you're never gonna reach 128 devices before other limitations kick in.

The GIGA R1 has three separate I2C buses of which two are usable without external components, letting you control more devices.

The pins used for I2C on the GIGA R1 are the following:

  • SDA - D20
  • SCL - D21
  • SDA1 - also available on the camera connector.
  • SCL1 - also available on the camera connector.
  • SDA2 - D9
  • SCL2 - D8

I2C Pins
I2C Pins

To connect I2C devices you will need to include the Wire library at the top of your sketch.

1#include <Wire.h>

Inside

void setup()
you need to initialize the library, and initialize the I2C port you want to use.

1Wire.begin() //SDA & SDL
2Wire1.begin(); //SDA1 & SDL1
3Wire2.begin(); //SDA2 & SDL2

And to write something to a device connected via I2C, we can use the following commands:

1Wire.beginTransmission(1); //begin transmit to device 1
2Wire.write(byte(0x00)); //send instruction byte
3Wire.write(val); //send a value
4Wire.endTransmission(); //stop transmit

If you pay close attention you may notice that there are three sets of I2C pins. The two first sets (SDA, SCL, SDA1, SCL1) have internal pullup resistors connected to them which are required to make them function as I2C pins.

If you want to use the third set (SDA2, SCL2) as I2C pins you will need to use external pull-up resistors.

Serial/UART Pins

The GIGA R1 supports, like every other Arduino board, serial communication with UART (Universal Asynchronous, Receiver-Transmitter). However, the GIGA R1 board features 5 separate serial ports, including the standard serial over USB port that is initialized using

Serial.begin()
.

This not only means that you may print different values to different ports and monitor them separately, which is useful enough in and of itself, but that you may also communicate with 4 different serial enabled devices simultaneously.

The pins used for UART on the GIGA R1 are the following:

  • RX0 - D0
  • TX0 - D1
  • RX1 - D19
  • TX1 - D18
  • RX2 - 17
  • TX2 - 16
  • RX3 - 15
  • TX3 - 14

Each Serial port works in the same way as the one you're used to, but you use different functions to target them:

1Serial.begin(9600); //initialize serial communication over USB
2Serial1.begin(9600); //initialize serial communication on RX0/TX0
3Serial2.begin(9600); //initialize serial communication on RX1/TX1
4Serial3.begin(9600); //initialize serial communication on RX2/TX2
5Serial4.begin(9600); //initialize serial communication on RX3/TX3

To send and receive data through UART, we will first need to set the baud rate inside

void setup()
. In this example, we use RX0/TX0.

1Serial1.begin(9600);

To read incoming data, we can use a while loop() to read each individual character and add it to a string.

1while(Serial1.available()){
2 delay(2);
3 char c = Serial1.read();
4 incoming += c;
5 }

And to write something, we can use the following command:

1Serial1.write("Hello world!");

Pins

The GIGA R1 gives you access to more pins than any other Arduino board that is this accessible for makers. Many of them have special features that will be accounted for in the upcoming sections of this article. Keep reading to learn what you can do with them.

If you just need a quick overview of the pins functionality, this is a full table of all the IO pins on the GIGA R1

PinFunctionNotes
0TXSerial communication
1RXSerial communication
2PWMPWM, Digital IO pin
3PWMPWM, Digital IO pin
4PWMPWM, Digital IO pin
5PWMPWM, Digital IO pin
6PWMPWM, Digital IO pin
7PWMPWM, Digital IO pin
8PWM/SCL2PWM, Digital IO, I2C
9PWM/SDA2PWM, Digital IO, I2C
10PWM/CSPWM, Digital IO, SPI
11PWM/COPIPWM, Digital IO, SPI
12PWM/CIPOPWM, Digital IO, SPI
13PWM/SCKPWM, Digital IO, SPI
14TX3Serial communication
15RX3Serial communication
16TX2Serial communication
17RX2Serial communication
18TX1Serial communication
19RX1Serial communication
20SDADigital IO, I2C
21SCLDigital IO, I2C
22GPIODigital IO pin
23GPIODigital IO pin
24GPIODigital IO pin
25GPIODigital IO pin
26GPIODigital IO pin
27GPIODigital IO pin
28GPIODigital IO pin
29GPIODigital IO pin
30GPIODigital IO pin
31GPIODigital IO pin
32GPIODigital IO pin
33GPIODigital IO pin
34GPIODigital IO pin
35GPIODigital IO pin
36GPIODigital IO pin
37GPIODigital IO pin
38GPIODigital IO pin
39GPIODigital IO pin
40GPIODigital IO pin
41GPIODigital IO pin
42GPIODigital IO pin
43GPIODigital IO pin
44GPIODigital IO pin
45GPIODigital IO pin
46GPIODigital IO pin
47GPIODigital IO pin
48GPIODigital IO pin
49GPIODigital IO pin
50GPIODigital IO pin
51GPIODigital IO pin
52GPIODigital IO pin
53GPIODigital IO pin
54GPIODigital IO pin
55GPIODigital IO pin
56GPIODigital IO pin
57GPIODigital IO pin
58GPIODigital IO pin
59GPIODigital IO pin
60GPIODigital IO pin
61GPIODigital IO pin
62GPIODigital IO pin
63GPIODigital IO pin
64GPIODigital IO pin
65GPIODigital IO pin
66GPIODigital IO pin
67GPIODigital IO pin
68GPIODigital IO pin
69GPIODigital IO pin
70GPIODigital IO pin
71GPIODigital IO pin
72GPIODigital IO pin
73GPIODigital IO pin
74GPIODigital IO pin
75GPIODigital IO pin
A0Analog inAnalog In
A1Analog inAnalog In
A2Analog inAnalog In
A3Analog inAnalog In
A4Analog inAnalog In
A5Analog inAnalog In
A6Analog inAnalog In
A7Analog inAnalog In
A8Analog inAnalog In
A9Analog inAnalog In
A10Analog inAnalog In
A11Analog inAnalog In
A12DAC0Analog In, DAC
A13DAC1Analog In, DAC
A14CANRXAnalog In, CAN
A15CANTXAnalog In, CAN

Analog Pins

The GIGA R1 has 12 analog input pins that can be read with a resolution of 16 Bits, by using the

analogRead()
function.

1value = analogRead(pin, value);

The reference voltage of these pins is 3.3V.

Pins A8, A9, A10 and A11 can not be used as GPIOs, but are limited to use as analog input pins.

The STM32H7 has an internal OPAMP and comparator that are exposed on the GIGA R1 as follows:

PinOPAMPComparator
A0OPAMP1_VOUTCOMP1_INM
A1OPAMP1_VINM &VINM0
A2OPAMP1_VINPCOMP1_INP
A3COMP1_INM
A6COMP1_INM

For more advanced analog readings, you can use the

AdvancedAnalogRedux
library. Read more about this in the Advanced ADC section.

PWM Pins

PWM (Pulse Width Modulation) capability allows a digital pin to emulate analog output by flickering on and off very fast letting you, among other things, dim LEDs connected to digital pins.

The GIGA R1 has 12 PWM capable pins, the PWM capable pins are 2-13. You may use them as analog output pins with the function:

1analogWrite(pin, value);

Digital Pins

The GIGA R1 features more pins than any other Arduino board for makers, a full 76 digital pins. Though many of them serve another purpose and shouldn't be used for GPIO if you have other pins available.

  • 0 - RX0
  • 1 - TX0
  • 8 - SCL2
  • 9 - SDA2
  • 10 - CS
  • 11 - COPI
  • 12 - CIPO
  • 13 - SCK
  • 14 - TX3
  • 15 - RX3
  • 16 - TX2
  • 17 - RX2
  • 18 - TX1
  • 19 - RX1
  • 20 - SDA
  • 21 - SCL

The reference voltage of all digital pins is 3.3V.

The logic for

LED_BUILTIN
is reversed if compared to the behavior of, for example, the Arduino UNO board. What this means is that if you write HIGH to
LED_BUILTIN
, the LED will turn off, and on respectively if you write LOW.

DAC Pins

The GIGA R1 also has two DAC pins, A12 & A13, that can act as genuine analog output pins which means they are even more capable than PWM pins.

1analogWrite(pin, value);

DAC Pins
DAC Pins

These DAC pins have a default write resolution of 8-bits. This means that values that are written to the pin should be between 0-255.

However you may change this write resolution if you need to, to up to 12-bits:

1analogWriteResolution(12);

For advanced usage of the DAC, you can use the

AdvancedAnalogRedux
library. Read more about this in the Advanced DAC section.

OFF Pin

On the GIGA R1 you will find a pin labelled "OFF". If you connect this pin to ground, the board will power down even if power is supplied to the board.

You can install a flip-switch to the board to let you turn your device on and off easily, which can be a handy option for a more permanent fixture.

Interrupts

If you're creating a project that relies heavily on accurate sensor data, and therefore need to ensure that you read the record any change in value, it can be difficult to write a program that does anything else well. This is because the microcontroller is busy trying to read the values constantly. To get around this you can use interrupts that can let you can be useful for reading input from for example a rotary encoder or a push button without putting any code in your loop function.

This feature might be extra valuable to the maker with an GIGA R1, as their circuit gets more and more complex.

All GPIO pins on the GIGA R1 can be used for interrupts.

The syntax for creating an interrupt function should be included in

void setup()
and is as follows:

1attachInterrupt(digitalPinToInterrupt(pin), ISR, mode)
  • pin
    represents the pin number of the pin your input sensor is connected to,
  • ISR
    is the function that is called whenever the interrupt is triggered, and should be defined bt you somewhere in your sketch.
  • mode
    defines when the interrupt should be triggered, and can be one of four pre-defined modes.

The different modes that can be used are:

  • LOW
    triggers the interrupt when the pin is low.
  • CHANGE
    triggers whenever the pin changes values.
  • RISING
    triggers when the pin goes from low to high.
  • FALLING
    triggers when the pin goes from high to low.

This example sketch will turn on or off an LED connected to pin 13 whenever a pushbutton connected to pin 2 is pressed or released:

1const byte ledPin = 13;
2const byte interruptPin = 2;
3volatile byte state = LOW;
4
5void setup() {
6 pinMode(ledPin, OUTPUT);
7 pinMode(interruptPin, INPUT_PULLUP);
8 attachInterrupt(digitalPinToInterrupt(interruptPin), blink, CHANGE);
9}
10
11void loop() {
12 digitalWrite(ledPin, state);
13}
14
15void blink() {
16 state = !state;
17}

Tutorial Toolbox

Contribute to Arduino

Join the community and suggest improvements to this article via GitHub. Make sure to read out contribution policy before making your pull request.

Missing something?

Check out our store and get what you need to follow this tutorial.

Suggest Changes

The content on docs.arduino.cc is facilitated through a public GitHub repository. You can read more on how to contribute in the contribution policy.
