Assembling the Enclosure Kit

Learn how to assemble the enclosure kit for the Edge Control

Introduction

The enclosure kit and Edge Control
The enclosure kit and Edge Control

The enclosure kit features an LCD screen on top and a perfectly fitted case for the Arduino Edge Control.

Required Hardware and Software

Assemble the Kit

Once you got all the parts and an Edge Control, we can start with placing the Edge Control into the bottom part of the enclosure kit.

First step
First step

Next place the LCD screen cover over the screen.

Second step
Second step

Now place the LCD screen into the top part of the enclosure kit.

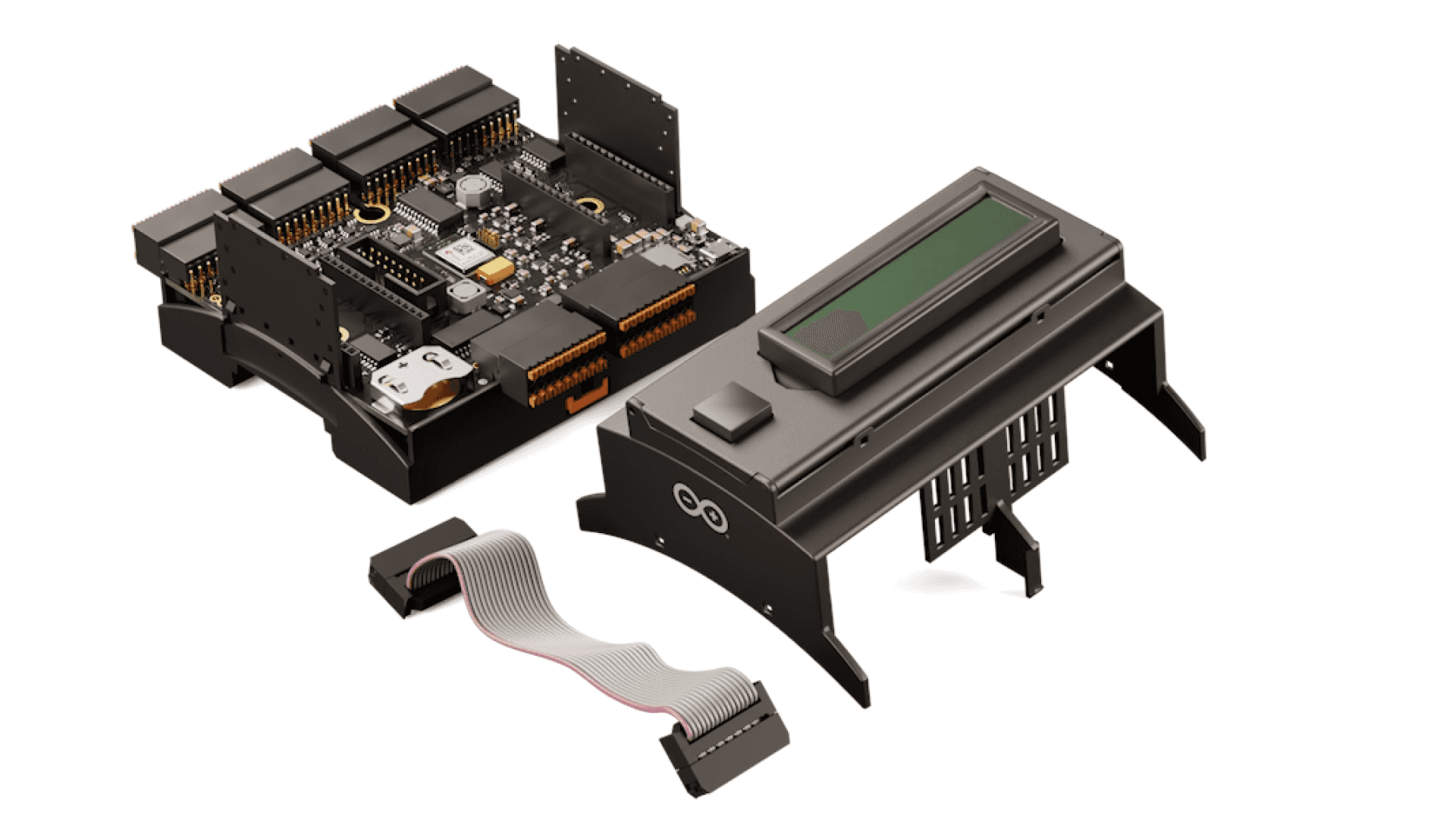

Third step
Third step

To connect the screen to the carrier, plug one end of the cord into the under side of the LCD screen, the other end of the cord goes into the LCD connector on the Edge Control.

Fourth step
Fourth step
Fifth step
Fifth step

Finally you can put the upper part that holds the screen on the bottom part that holds the Carrier.

Last step
Last step

There you go, a perfectly fitted enclosure for your Edge Control with an LCD screen!

Next Step

Now that you have your Edge Control hooked up to a LCD screen you might want to test the setup out. Feel free to take a look at our tutorials for the Arduino Edge Control.
