In this tutorial, we will go through a few simple steps on installing the SAMD21 core. This installation is necessary to use your board with the offline Arduino IDE.
This tutorial uses the Arduino IDE. You can download the editor easily from our software page.
If you are using the Web Editor, you can follow the getting started with the Web Editor tutorial.
First, we need to download the Arduino IDE, which can be done from the software page.
Install the Arduino IDE on your local machine.
Open the Arduino IDE.
After we have downloaded, installed and opened the Arduino IDE, let's continue to installing the SAMD21 core.
When we open the editor, we will see an empty sketch.
Here we need to navigate to Tools > Board > Board Manager.
This will open up a new window, with all available cores. Type in
in the search field, and install the Arduino SAMD Boards (32-bits ARM Cortex-M0+) core.
This process may take some time, and you may need to accept the installation window that comes up (depending on your operative system). When it is finished, it should say
under the title.
Note: This process may take several minutes.
Exit the board manager, and go to Tools > Board > Arduino SAMD Boards (32-bits ARM Cortex-M0+). Here you can see all the SAMD boards listed, where you can select the MKR board you are using. You have now successfully installed the core.
Now, let's make sure that our board is found by our computer, by selecting the port. Regardless what kind of program we are uploading to the board, we always need to choose the port for the board we are using. This is simply done by navigating to Tools > Port, where you select your board from the list.
This will look different depending on what kind of operative system you are using.
For Windows users, it could look like this:
<COM29> (Arduino MKR WiFi 1010)
For MAC users, it could look like this:
/dev/cu.usbmodem14112 (Arduino MKR WiFi 1010)

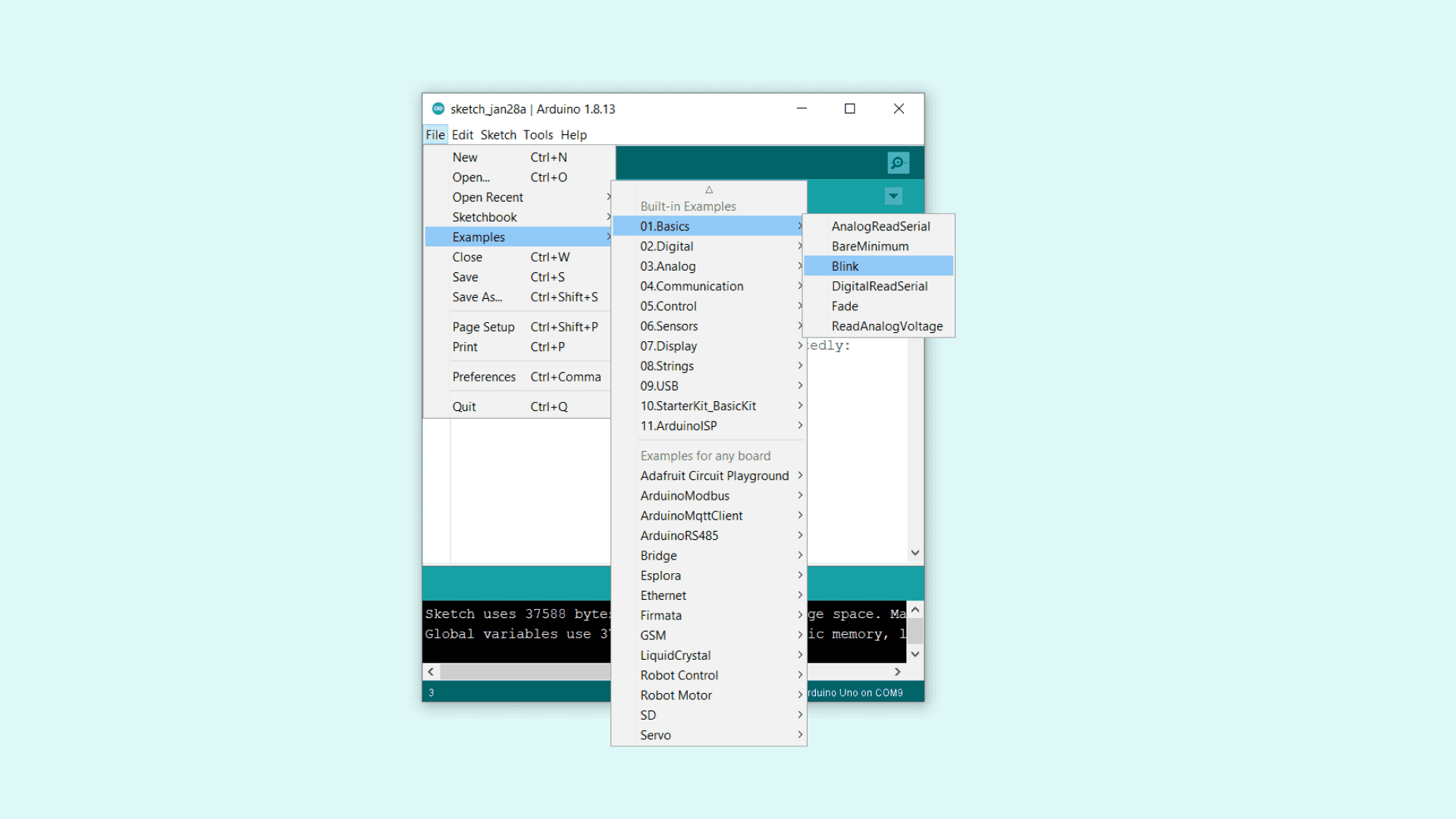

You are now ready to start using your board! The easiest way to check that everything is working, is to upload just a simple blink example to your board. This is done by navigating to File > Examples > 01.Basics > Blink.
To upload the sketch, simply click on the arrow in the top left corner. This process takes a few seconds, and it is important to not disconnect the board during this process.
When the code is uploaded, the text
is visible in the bottom left corner.
If you look closely at your board, you will notice an orange LED blink with an interval of one second. This means you have successfully uploaded a program to your board.
