Arduino Proto Extension Kit

Base kit to extend your Arduino with your own wired circuit

The Arduino Proto Extension Kit
The Arduino Proto Extension Kit

Features & Benefits of the Proto Shield

  • Connections for all Arduino I/O pins
  • Space for through-hole and surface mount ICs
  • Components can be soldered to the shield (a solderless breadboard is needed for non-soldered prototyping)

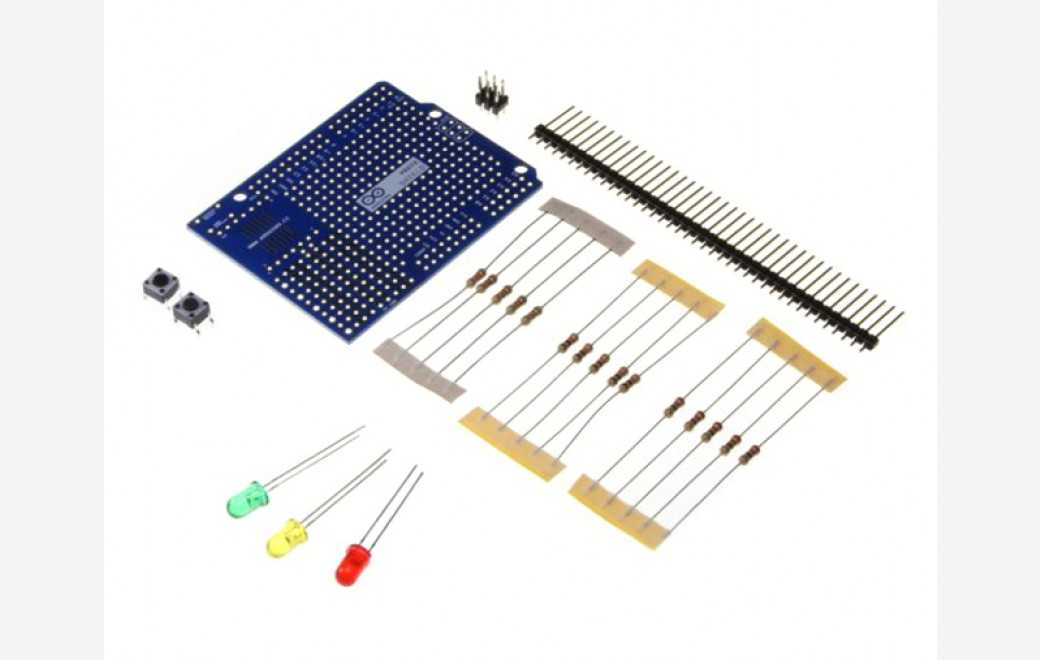

Proto Shield Kit Contents

  • 1 x straight single line pinhead connector (40 x 1)
  • 1 x straight single line pinhead connector (3 x 2)
  • 2 x PCB pushbuttons
  • 3 x LEDs (1 Red, 1 Yellow, 1 Green)
  • 5 x 10 kiloohm resistors (1 to 4 W)
  • 5 x 220 ohm resistors (1 to 4 W)
  • 5 x 1 kiloohm resistor (1 to 4 W)
