EsploraTFTGraph

Graph the values from the light sensor to the TFT.

Esplora TFT Graph

This example for the Esplora with an Arduino TFT screen reads the amount of brightness that falls on the onboard light sensor, and graphs it on screen. This is similar to the serial communication Graph example.

Hardware Required

  • Arduino Esplora

  • Arduino TFT screen

Circuit

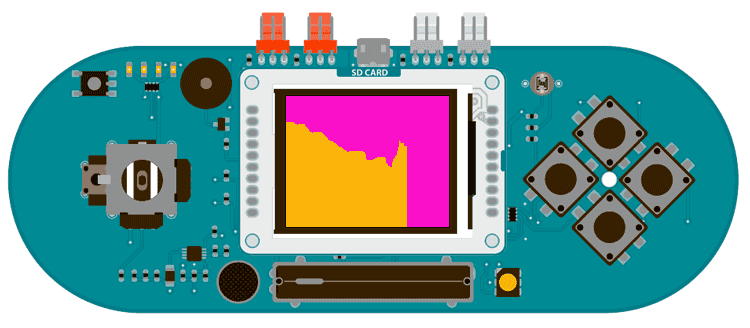

Esplora GLCDGraph

Attach the TFT screen to the socked on your Esplora, with the label "SD Card" facing up.

Code

To use the screen you must first include the SPI and TFT libraries. Don't forget to include the Esplora library as well.

1#include <Esplora.h>
2#include <TFT.h>
3#include <SPI.h>

Create a variable for holding the position of the x-axis of the graph. You'll increment this each

loop()
. In
setup()
, initialize the screen and make the background a nice color.

1int xPos = 0;
2
3void setup(){
4
5 EsploraTFT.begin();
6
7 EsploraTFT.background(250,16,200);
8}

In

loop()
, read the value from the light sensor, and map it to a value that fits in the screen's height.

1void loop(){
2
3 int sensor = Esplora.readLightSensor();
4
5 int graphHeight = map(sensor,0,1023,0,EsploraTFT.height());

Set the stroke color to something that will stand out against the nice color you chose for the background, and draw a line from the bottom of the screen based on the value of the sensor

1EsploraTFT.stroke(250,180,10);
2
3 EsploraTFT.line(xPos, EsploraTFT.height() - graphHeight, xPos, EsploraTFT.height());

Before closing up

loop()
, check to make sure the graph hasn't gone past the edge of the screen. If it has, erase everything, and start back at 0 on the x-axis.

1if (xPos >= 160) {
2
3 xPos = 0;
4
5 EsploraTFT.background(250,16,200);
6
7 }
8
9 else {
10
11 xPos++;
12
13 }
14
15 delay(16);
16}

The complete sketch is below :

1/*
2
3 Esplora TFT Graph
4
5 This example for the Esplora with an Arduino TFT reads
6
7 the value of the light sensor, and graphs the values on
8
9 the screen.
10
11 This example code is in the public domain.
12
13 Created 15 April 2013 by Scott Fitzgerald
14
15 http://www.arduino.cc/en/Tutorial/EsploraTFTGraph
16
17 */
18
19#include <Esplora.h>
20#include <TFT.h> // Arduino LCD library
21#include <SPI.h>
22
23// position of the line on screen
24int xPos = 0;
25
26void setup() {
27
28 // initialize the screen
29
30 EsploraTFT.begin();
31
32 // clear the screen with a nice color
33
34 EsploraTFT.background(250, 16, 200);
35}
36
37void loop() {
38
39 // read the sensor value
40
41 int sensor = Esplora.readLightSensor();
42
43 // map the sensor value to the height of the screen
44
45 int graphHeight = map(sensor, 0, 1023, 0, EsploraTFT.height());
46
47 // draw the line in a pretty color
48
49 EsploraTFT.stroke(250, 180, 10);
50
51 EsploraTFT.line(xPos, EsploraTFT.height() - graphHeight, xPos, EsploraTFT.height());
52
53 // if the graph reaches the edge of the screen
54
55 // erase it and start over from the other side
56
57 if (xPos >= 160) {
58
59 xPos = 0;
60
61 EsploraTFT.background(250, 16, 200);
62
63 } else {
64
65 // increment the horizontal position:
66
67 xPos++;
68
69 }
70
71 delay(16);
72}
